| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_005T01_9000004748_32914cztM0_level2.evt | modeM0/AS1C07_005T01_9000004748_32914cztM0_level2_quad_clean.evt |
| Size (bytes) | 524,473,920 | 97,182,720 |
| Size | 500.2 MB | 92.7 MB |
| Events in quadrant A | 2,458,992 | 671,539 |
| Events in quadrant B | 2,938,605 | 682,417 |
| Events in quadrant C | 2,905,607 | 652,848 |
| Events in quadrant D | 7,229,838 | 572,874 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 106 | 0 |
| B | 0 | 106 | 0 |
| C | 0 | 106 | 0 |
| D | 0 | 106 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10757 | 3 |
| B | 0 | 12101 | 2 |
| C | 0 | 11983 | 2 |
| D | 0 | 25156 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5184 | 4 | 0.077160% |
| B | 5184 | 55 | 1.060957% |
| C | 5184 | 103 | 1.986883% |
| D | 5185 | 756 | 14.580521% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7006 | 5185 | 2 | 2 | 0.03% | 0.04% |  |
| B | 7006 | 5185 | 35 | 35 | 0.50% | 0.68% |  |
| C | 7006 | 5185 | 94 | 94 | 1.34% | 1.81% |  |
| D | 7007 | 5186 | 878 | 878 | 12.53% | 16.93% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 48591 | 391.88 | 615 | 604 | 122.5 |
| A | 13 | 6 | 14266 | 111.57 | 615 | 604 | 122.5 |
| A | 13 | 254 | 10280 | 79.02 | 615 | 604 | 122.5 |
| B | 5 | 172 | 191059 | 1623.27 | 621 | 607 | 117.3 |
| B | 0 | 189 | 98523 | 834.56 | 621 | 607 | 117.3 |
| B | 0 | 230 | 65966 | 557.07 | 621 | 607 | 117.3 |
| C | 0 | 10 | 342599 | 2523.94 | 588 | 593 | 135.5 |
| C | 14 | 67 | 92004 | 674.6 | 588 | 593 | 135.5 |
| C | 1 | 241 | 79432 | 581.82 | 588 | 593 | 135.5 |
| D | 8 | 195 | 2127143 | 14862.92 | 557 | 545 | 143.1 |
| D | 12 | 227 | 1326723 | 9268.74 | 557 | 545 | 143.1 |
| D | 10 | 203 | 698163 | 4875.69 | 557 | 545 | 143.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

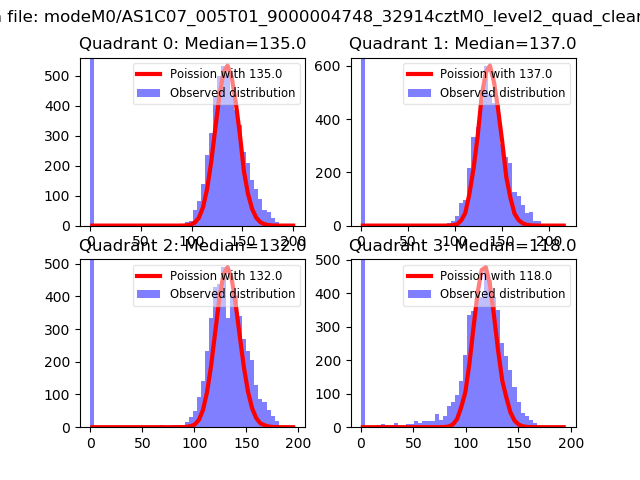

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

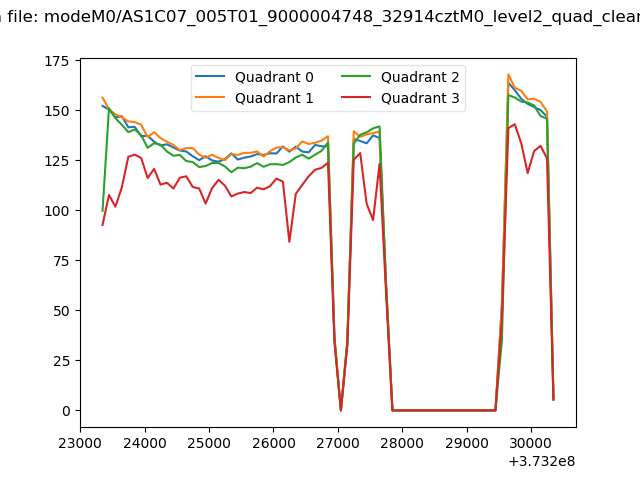

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

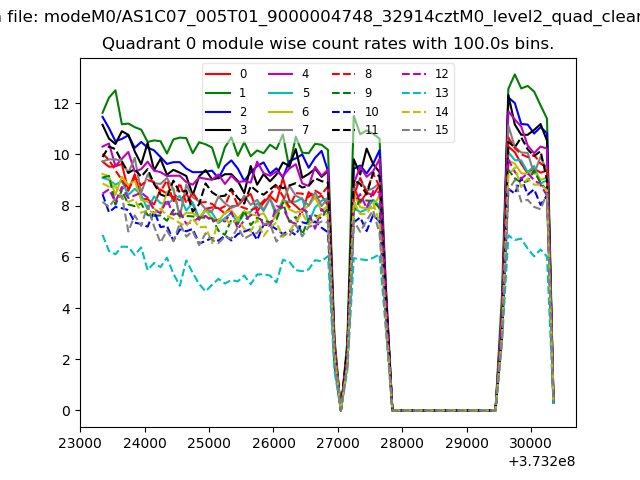

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

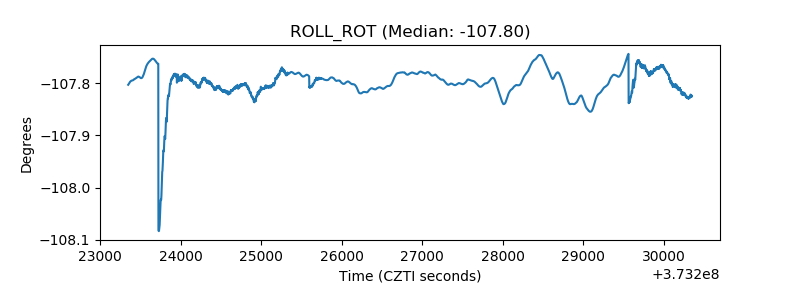

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
