| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_005T01_9000004748_32916cztM0_level2.evt | modeM0/AS1C07_005T01_9000004748_32916cztM0_level2_quad_clean.evt |
| Size (bytes) | 517,786,560 | 101,903,040 |
| Size | 493.8 MB | 97.2 MB |
| Events in quadrant A | 2,444,876 | 718,723 |
| Events in quadrant B | 3,374,694 | 721,204 |
| Events in quadrant C | 2,936,255 | 703,803 |
| Events in quadrant D | 6,583,617 | 588,464 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 102 | 0 |
| B | 0 | 102 | 0 |
| C | 0 | 102 | 0 |
| D | 0 | 102 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28 | 0 |
| B | 0 | 28 | 0 |
| C | 0 | 28 | 0 |
| D | 0 | 29 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10291 | 3 |
| B | 0 | 13166 | 2 |
| C | 0 | 11726 | 2 |
| D | 0 | 23154 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5047 | 12 | 0.237765% |
| B | 5047 | 282 | 5.587478% |
| C | 5047 | 131 | 2.595601% |
| D | 5047 | 909 | 18.010699% |

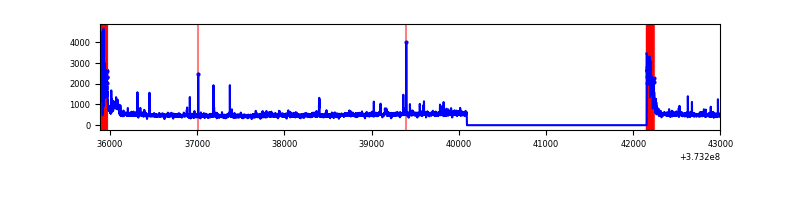

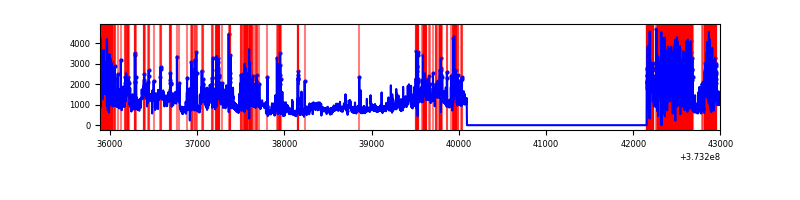

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7110 | 5048 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7110 | 5048 | 188 | 188 | 2.64% | 3.72% |  |
| C | 7110 | 5048 | 117 | 117 | 1.65% | 2.32% |  |
| D | 7110 | 5047 | 712 | 712 | 10.01% | 14.11% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 12030 | 92.31 | 621 | 611 | 123.7 |
| A | 13 | 6 | 11326 | 86.62 | 621 | 611 | 123.7 |
| A | 0 | 254 | 9978 | 75.72 | 621 | 611 | 123.7 |
| B | 5 | 172 | 625207 | 5511.53 | 616 | 603 | 113.3 |
| B | 0 | 189 | 91957 | 806.11 | 616 | 603 | 113.3 |
| B | 5 | 200 | 86144 | 754.82 | 616 | 603 | 113.3 |
| C | 0 | 10 | 415420 | 3051.44 | 603 | 609 | 135.9 |
| C | 4 | 254 | 53789 | 391.2 | 603 | 609 | 135.9 |
| C | 14 | 67 | 36781 | 266.09 | 603 | 609 | 135.9 |
| D | 8 | 195 | 1528976 | 11034.01 | 545 | 534 | 138.5 |
| D | 2 | 250 | 1015876 | 7329.88 | 545 | 534 | 138.5 |
| D | 12 | 218 | 665669 | 4801.69 | 545 | 534 | 138.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

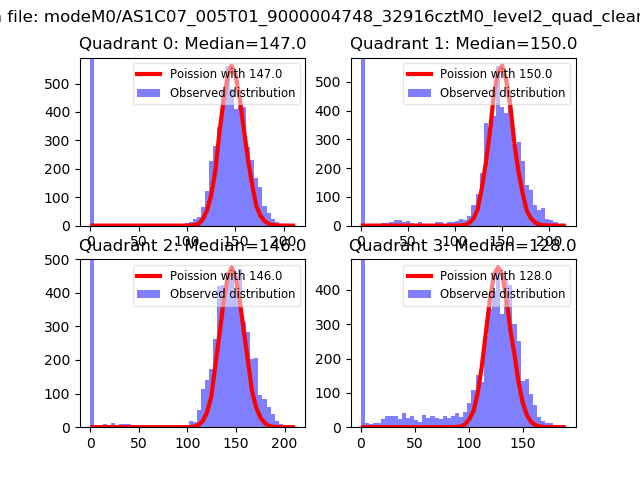

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

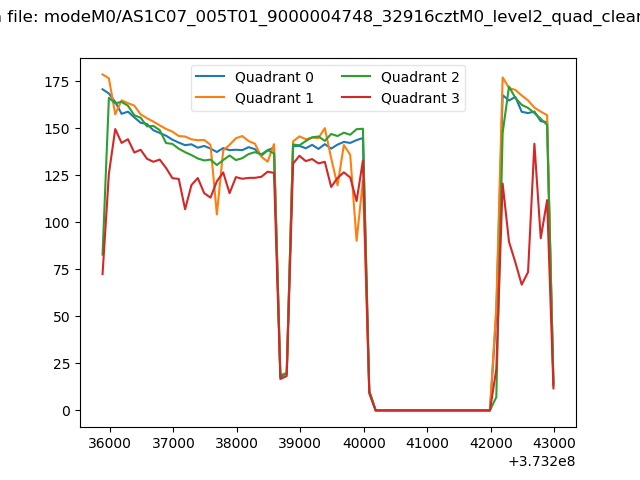

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

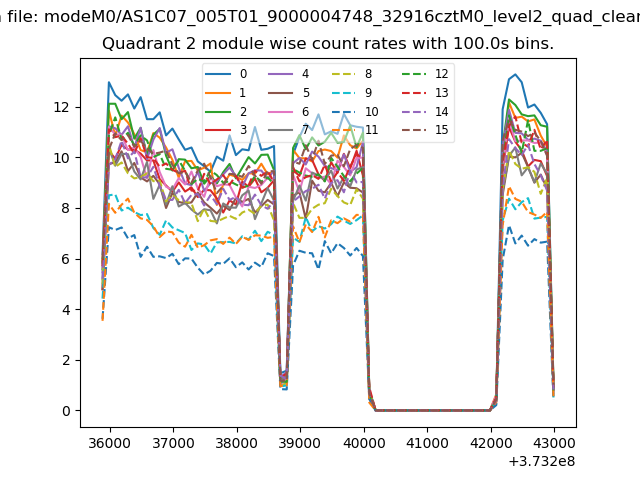

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

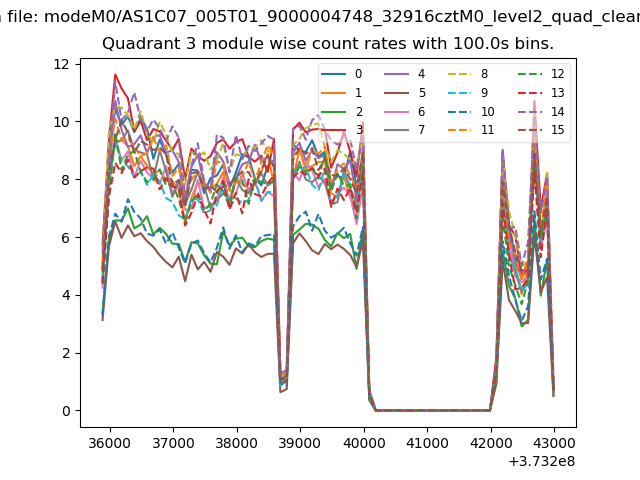

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

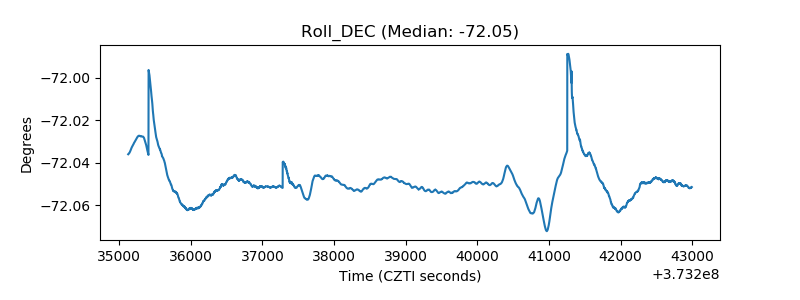

| _Roll_DEC |  |

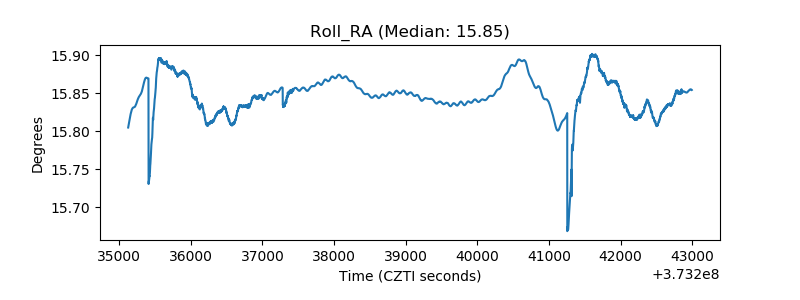

| _Roll_RA |  |
| Veto Counter |  |
