| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_005T01_9000004748_32932cztM0_level2.evt | modeM0/AS1C07_005T01_9000004748_32932cztM0_level2_quad_clean.evt |
| Size (bytes) | 450,192,960 | 108,256,320 |
| Size | 429.3 MB | 103.2 MB |
| Events in quadrant A | 2,543,988 | 739,607 |
| Events in quadrant B | 3,356,043 | 745,257 |
| Events in quadrant C | 2,633,848 | 748,839 |
| Events in quadrant D | 4,748,034 | 681,194 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 106 | 0 |
| B | 0 | 106 | 0 |
| C | 0 | 106 | 0 |
| D | 0 | 106 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 36 | 0 |
| B | 0 | 36 | 0 |
| C | 0 | 36 | 0 |
| D | 0 | 37 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10662 | 3 |
| B | 0 | 13162 | 2 |
| C | 0 | 10928 | 2 |
| D | 0 | 17825 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5192 | 16 | 0.308166% |
| B | 5192 | 279 | 5.373652% |
| C | 5192 | 22 | 0.423729% |
| D | 5192 | 206 | 3.967643% |

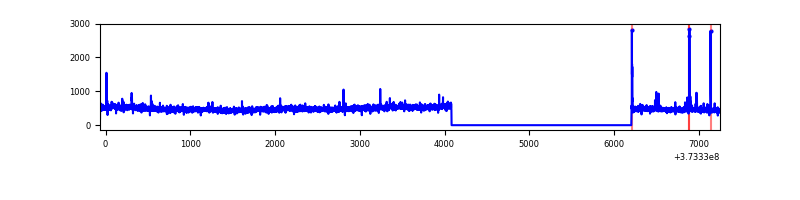

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7315 | 5193 | 4 | 4 | 0.05% | 0.08% |  |
| B | 7315 | 5193 | 160 | 160 | 2.19% | 3.08% |  |
| C | 7315 | 5193 | 14 | 14 | 0.19% | 0.27% |  |
| D | 7315 | 5193 | 161 | 161 | 2.20% | 3.10% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 159 | 48217 | 378.99 | 630 | 618 | 125.6 |
| A | 0 | 191 | 26341 | 204.81 | 630 | 618 | 125.6 |
| A | 7 | 16 | 25650 | 199.31 | 630 | 618 | 125.6 |
| B | 5 | 172 | 579739 | 5017.74 | 623 | 610 | 115.4 |
| B | 0 | 199 | 85203 | 732.94 | 623 | 610 | 115.4 |
| B | 15 | 201 | 34896 | 297.06 | 623 | 610 | 115.4 |
| C | 0 | 10 | 86600 | 597.26 | 628 | 633 | 143.9 |
| C | 3 | 233 | 24939 | 168.87 | 628 | 633 | 143.9 |
| C | 14 | 67 | 21034 | 141.74 | 628 | 633 | 143.9 |
| D | 8 | 195 | 1365250 | 8840.25 | 604 | 591 | 154.4 |
| D | 7 | 80 | 237481 | 1534.57 | 604 | 591 | 154.4 |
| D | 2 | 250 | 174829 | 1128.71 | 604 | 591 | 154.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

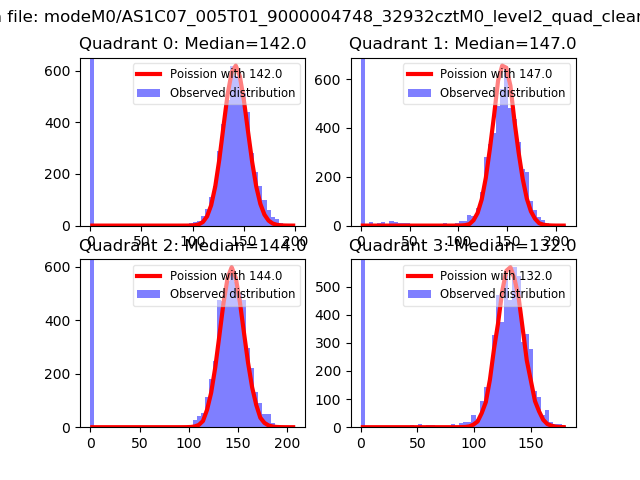

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

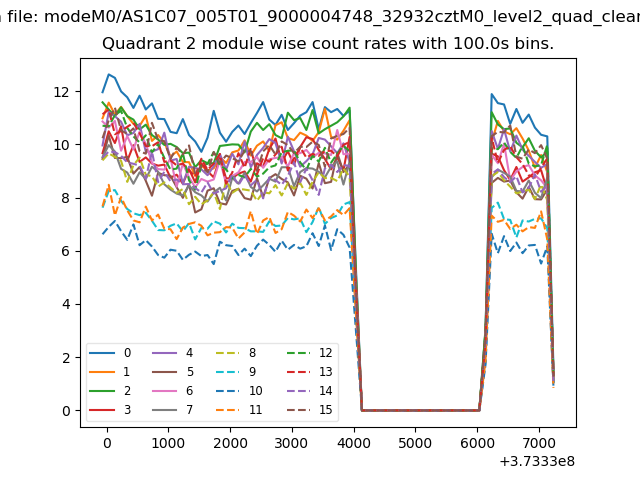

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

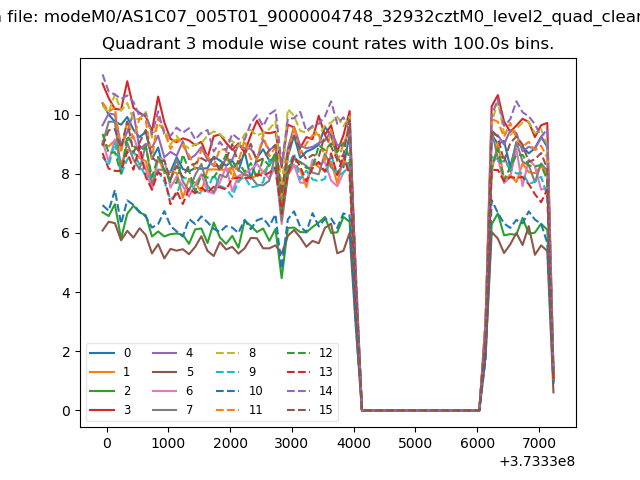

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

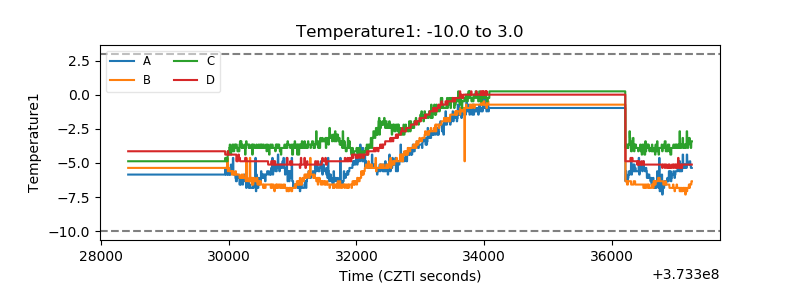

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

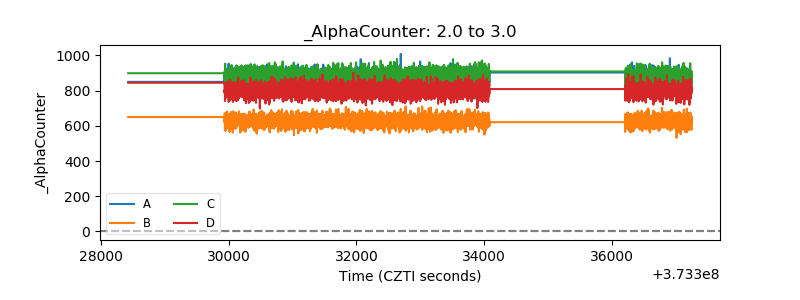

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

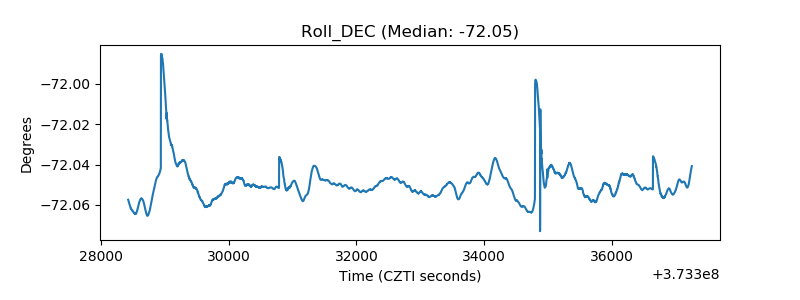

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
