| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_005T01_9000004748_32934cztM0_level2.evt | modeM0/AS1C07_005T01_9000004748_32934cztM0_level2_quad_clean.evt |
| Size (bytes) | 471,816,000 | 100,872,000 |
| Size | 450.0 MB | 96.2 MB |
| Events in quadrant A | 2,424,504 | 687,586 |
| Events in quadrant B | 4,092,909 | 663,353 |
| Events in quadrant C | 2,517,952 | 694,257 |
| Events in quadrant D | 4,894,447 | 638,798 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 106 | 0 |
| B | 0 | 106 | 0 |
| C | 0 | 106 | 0 |
| D | 0 | 106 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 21 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10695 | 3 |
| B | 0 | 15570 | 2 |
| C | 0 | 10925 | 2 |
| D | 0 | 18306 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5300 | 8 | 0.150943% |
| B | 5300 | 557 | 10.509434% |
| C | 5300 | 24 | 0.452830% |
| D | 5300 | 179 | 3.377358% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7123 | 5301 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7123 | 5301 | 346 | 346 | 4.86% | 6.53% |  |
| C | 7123 | 5301 | 15 | 15 | 0.21% | 0.28% |  |
| D | 7123 | 5301 | 153 | 153 | 2.15% | 2.89% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 20947 | 164.5 | 616 | 604 | 123.7 |
| A | 13 | 6 | 12400 | 95.38 | 616 | 604 | 123.7 |
| A | 13 | 254 | 10113 | 76.89 | 616 | 604 | 123.7 |
| B | 5 | 172 | 1331647 | 11989.27 | 590 | 576 | 111.0 |
| B | 0 | 199 | 157392 | 1412.48 | 590 | 576 | 111.0 |
| B | 0 | 189 | 77225 | 690.4 | 590 | 576 | 111.0 |
| C | 0 | 10 | 93378 | 667.82 | 608 | 612 | 138.9 |
| C | 5 | 250 | 12377 | 84.7 | 608 | 612 | 138.9 |
| C | 1 | 241 | 10696 | 72.59 | 608 | 612 | 138.9 |
| D | 8 | 195 | 1661678 | 11164.5 | 592 | 579 | 148.8 |
| D | 7 | 80 | 182847 | 1225.05 | 592 | 579 | 148.8 |
| D | 2 | 250 | 171105 | 1146.13 | 592 | 579 | 148.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

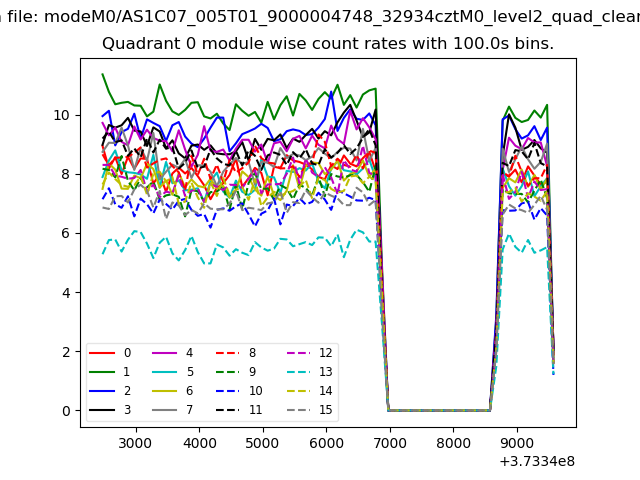

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

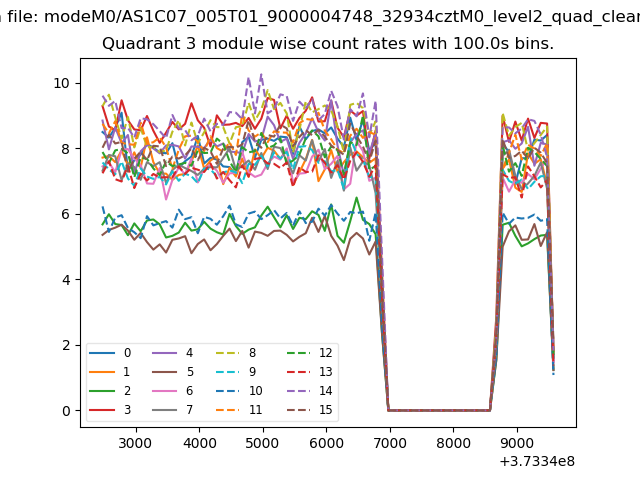

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

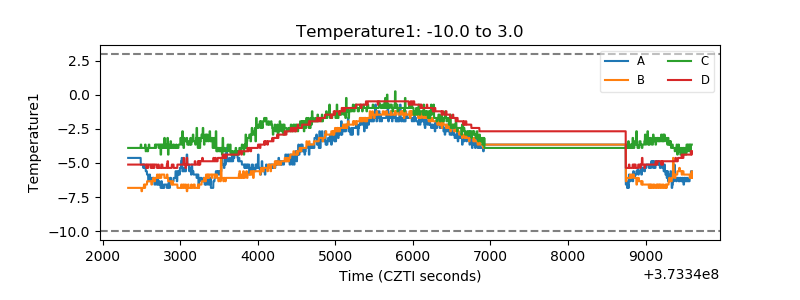

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

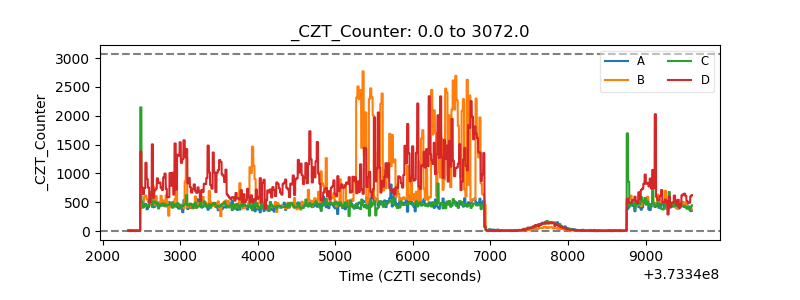

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

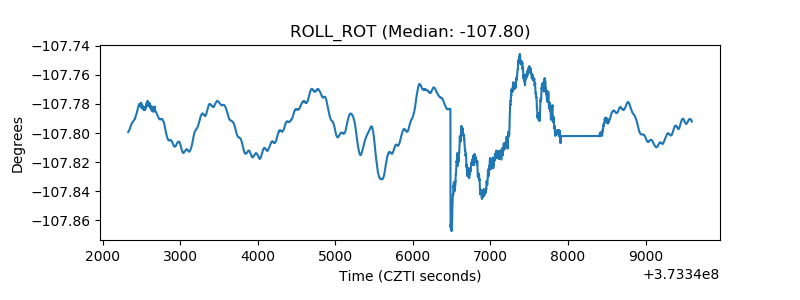

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
