| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_005T01_9000004748_32936cztM0_level2.evt | modeM0/AS1C07_005T01_9000004748_32936cztM0_level2_quad_clean.evt |
| Size (bytes) | 550,526,400 | 107,634,240 |
| Size | 525.0 MB | 102.6 MB |
| Events in quadrant A | 2,689,920 | 732,587 |
| Events in quadrant B | 4,310,988 | 710,119 |
| Events in quadrant C | 2,965,800 | 736,738 |
| Events in quadrant D | 6,305,832 | 667,230 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 17 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11902 | 3 |
| B | 0 | 16608 | 2 |
| C | 0 | 12849 | 2 |
| D | 0 | 22925 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5899 | 4 | 0.067808% |
| B | 5899 | 525 | 8.899814% |
| C | 5899 | 122 | 2.068147% |
| D | 5899 | 598 | 10.137311% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7212 | 5900 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7212 | 5900 | 370 | 370 | 5.13% | 6.27% |  |
| C | 7212 | 5900 | 94 | 94 | 1.30% | 1.59% |  |
| D | 7212 | 5900 | 556 | 556 | 7.71% | 9.42% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 191 | 30011 | 214.09 | 678 | 665 | 137.1 |
| A | 0 | 159 | 21736 | 153.72 | 678 | 665 | 137.1 |
| A | 13 | 254 | 11513 | 79.14 | 678 | 665 | 137.1 |
| B | 5 | 172 | 1261030 | 10283.13 | 648 | 632 | 122.6 |
| B | 5 | 200 | 143497 | 1165.58 | 648 | 632 | 122.6 |
| B | 0 | 199 | 109063 | 884.65 | 648 | 632 | 122.6 |
| C | 0 | 10 | 340723 | 2246.22 | 654 | 656 | 151.4 |
| C | 1 | 241 | 48904 | 318.69 | 654 | 656 | 151.4 |
| C | 3 | 233 | 8246 | 50.13 | 654 | 656 | 151.4 |
| D | 8 | 195 | 1526864 | 9414.98 | 635 | 622 | 162.1 |
| D | 12 | 227 | 718326 | 4427.32 | 635 | 622 | 162.1 |
| D | 12 | 233 | 706171 | 4352.34 | 635 | 622 | 162.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

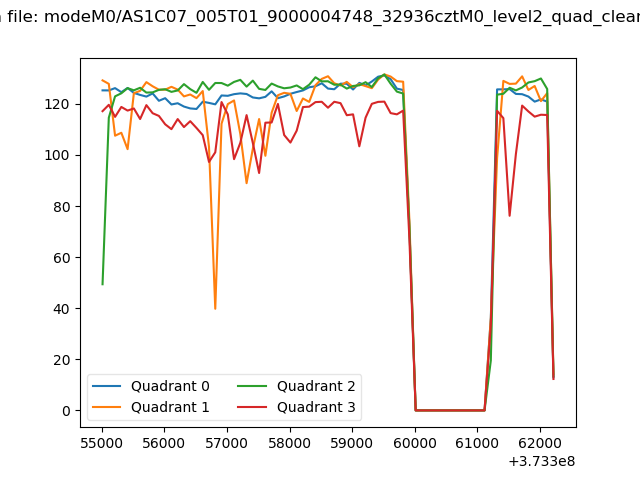

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

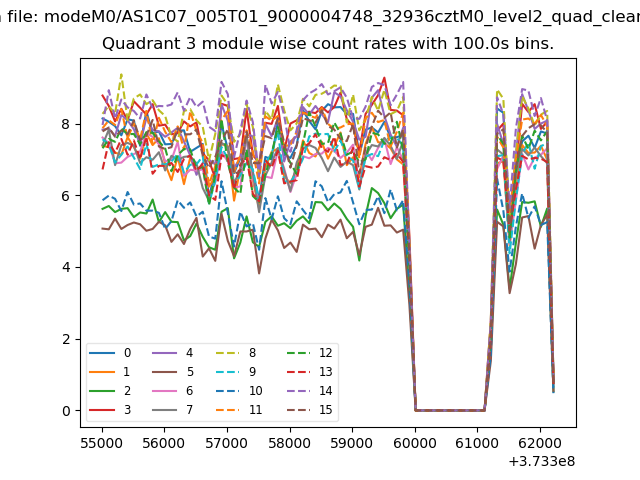

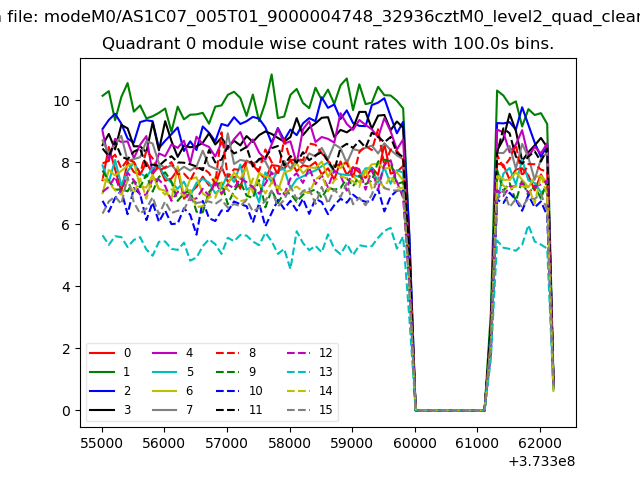

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

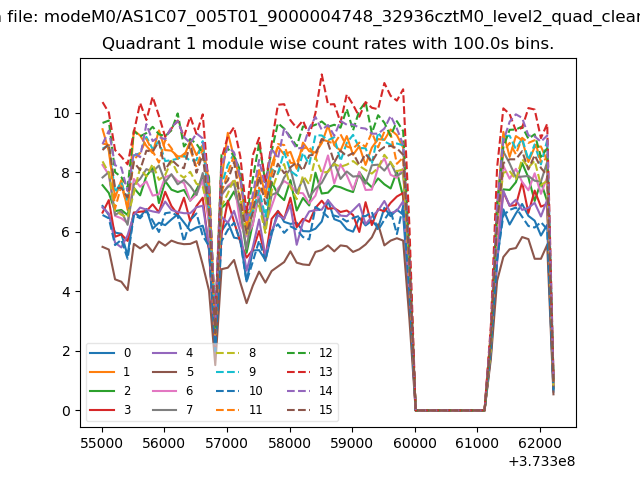

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

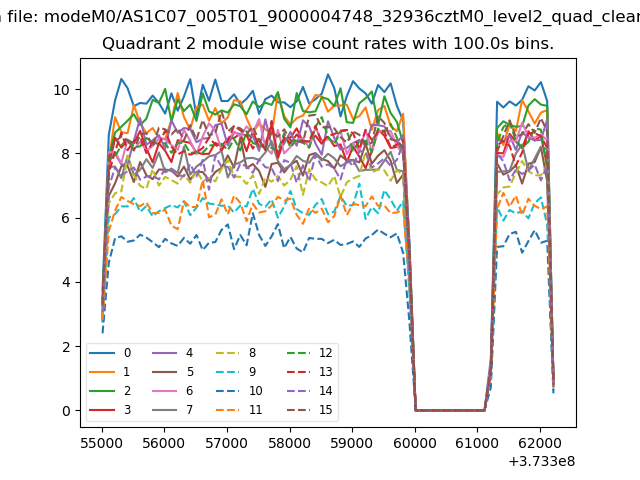

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

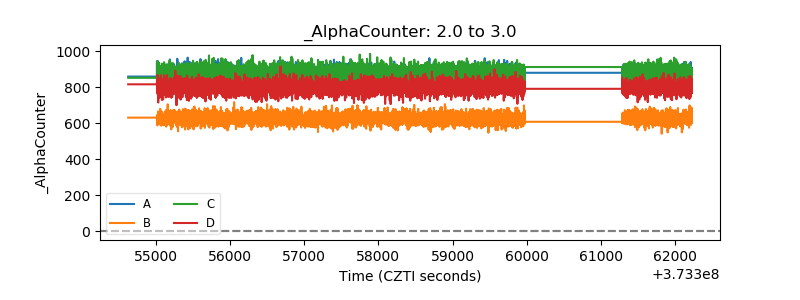

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

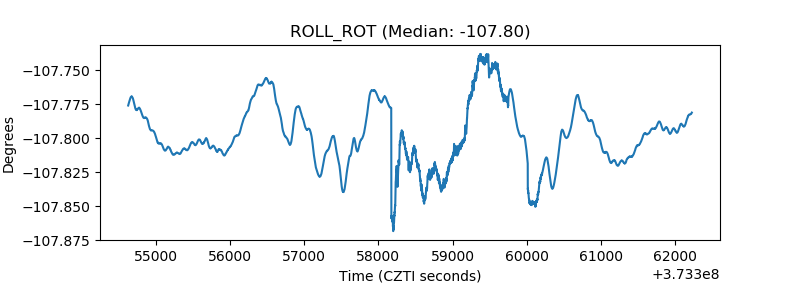

| _ROLL_ROT |  |

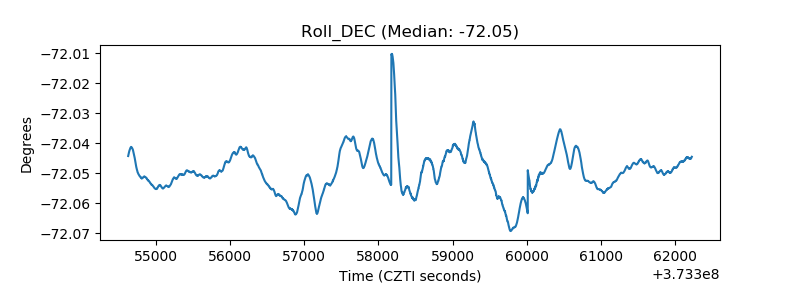

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
