| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_005T01_9000004748_32946cztM0_level2.evt | modeM0/AS1C07_005T01_9000004748_32946cztM0_level2_quad_clean.evt |
| Size (bytes) | 474,635,520 | 101,257,920 |
| Size | 452.6 MB | 96.6 MB |
| Events in quadrant A | 2,344,511 | 702,683 |
| Events in quadrant B | 3,191,851 | 713,441 |
| Events in quadrant C | 2,551,268 | 705,924 |
| Events in quadrant D | 5,953,823 | 600,018 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 100 | 0 |
| B | 0 | 100 | 0 |
| C | 0 | 100 | 0 |
| D | 0 | 100 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 35 | 0 |
| B | 0 | 35 | 0 |
| C | 0 | 35 | 0 |
| D | 0 | 36 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9938 | 3 |
| B | 0 | 12457 | 2 |
| C | 0 | 10580 | 2 |
| D | 0 | 21181 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4908 | 5 | 0.101874% |
| B | 4908 | 256 | 5.215974% |
| C | 4908 | 57 | 1.161369% |
| D | 4908 | 770 | 15.688672% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7031 | 4909 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7031 | 4909 | 139 | 139 | 1.98% | 2.83% |  |
| C | 7031 | 4909 | 43 | 43 | 0.61% | 0.88% |  |
| D | 7031 | 4909 | 693 | 693 | 9.86% | 14.12% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 159 | 26997 | 221.82 | 594 | 582 | 119.1 |
| A | 13 | 254 | 9164 | 72.07 | 594 | 582 | 119.1 |
| A | 13 | 6 | 8426 | 65.87 | 594 | 582 | 119.1 |
| B | 5 | 172 | 558585 | 5076.27 | 595 | 582 | 109.9 |
| B | 0 | 189 | 103819 | 939.17 | 595 | 582 | 109.9 |
| B | 0 | 219 | 60158 | 541.98 | 595 | 582 | 109.9 |
| C | 0 | 10 | 156200 | 1158.79 | 587 | 593 | 134.3 |
| C | 1 | 241 | 65154 | 480.78 | 587 | 593 | 134.3 |
| C | 14 | 67 | 16313 | 117.07 | 587 | 593 | 134.3 |
| D | 7 | 80 | 1481520 | 10809.63 | 538 | 526 | 137.0 |
| D | 8 | 195 | 1248604 | 9109.6 | 538 | 526 | 137.0 |
| D | 2 | 250 | 339673 | 2475.4 | 538 | 526 | 137.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

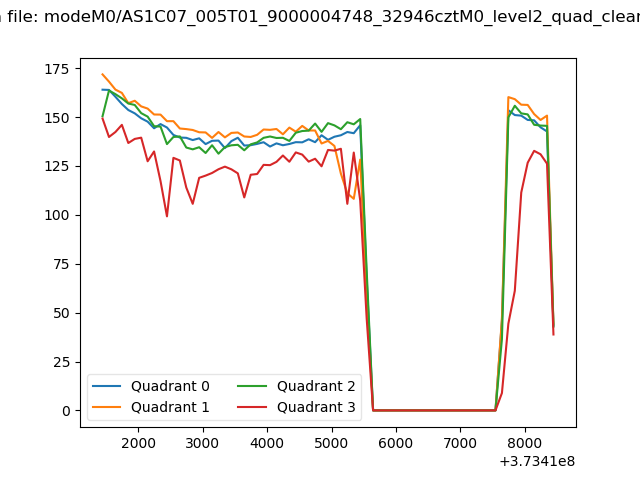

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

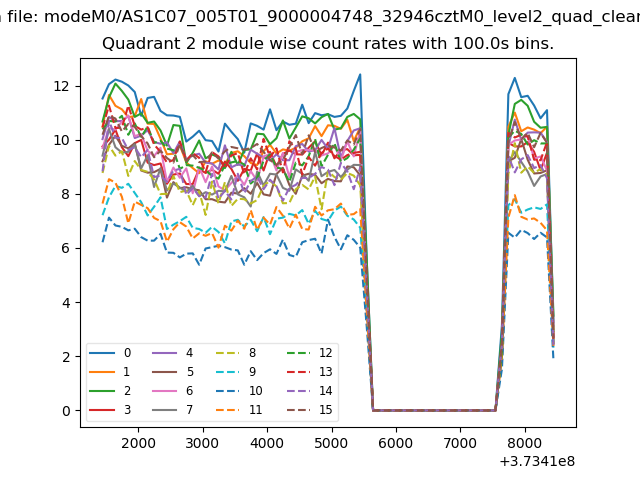

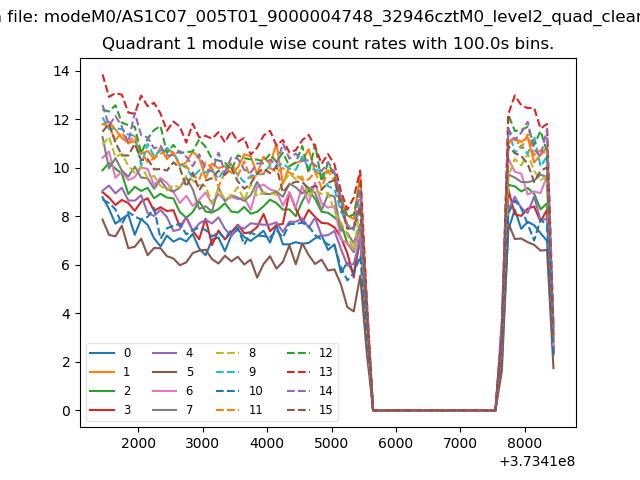

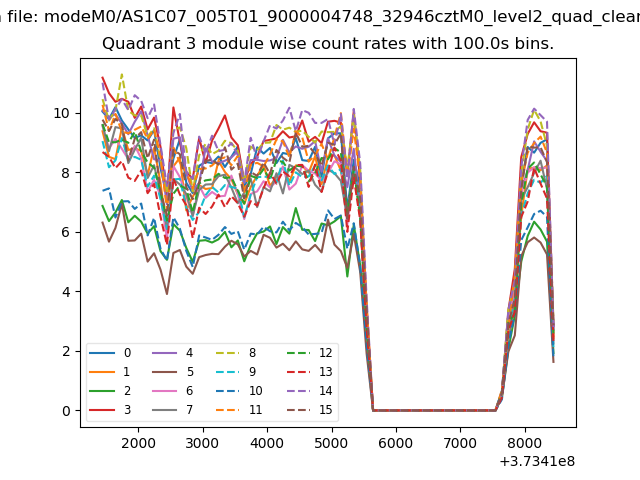

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

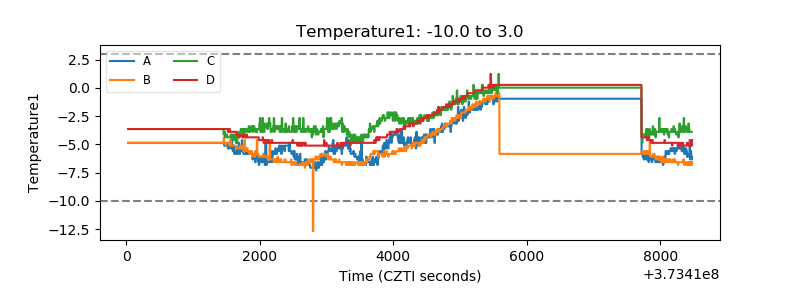

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

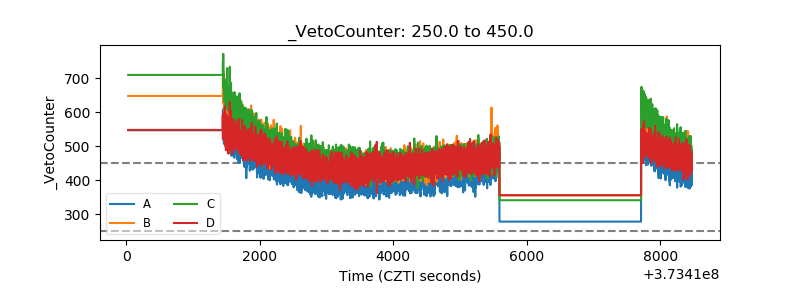

| Veto Counter |  |
