| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_001T01_9000004752_32957cztM0_level2.evt | modeM0/AS1C07_001T01_9000004752_32957cztM0_level2_quad_clean.evt |
| Size (bytes) | 535,006,080 | 103,697,280 |
| Size | 510.2 MB | 98.9 MB |
| Events in quadrant A | 2,496,745 | 722,201 |
| Events in quadrant B | 3,862,659 | 686,145 |
| Events in quadrant C | 2,867,231 | 719,065 |
| Events in quadrant D | 6,607,890 | 632,254 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11002 | 3 |
| B | 0 | 14969 | 2 |
| C | 0 | 11992 | 2 |
| D | 0 | 23608 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 110 | 0 |
| B | 0 | 110 | 0 |
| C | 0 | 110 | 0 |
| D | 0 | 110 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5435 | 6 | 0.110396% |
| B | 5435 | 525 | 9.659614% |
| C | 5435 | 80 | 1.471941% |
| D | 5435 | 825 | 15.179393% |

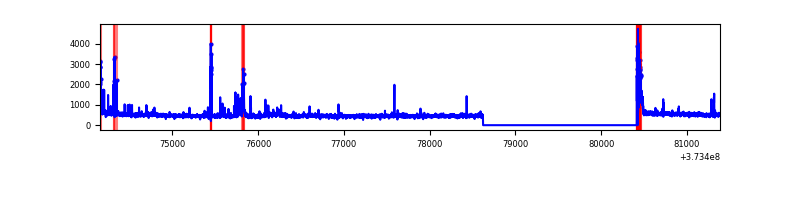

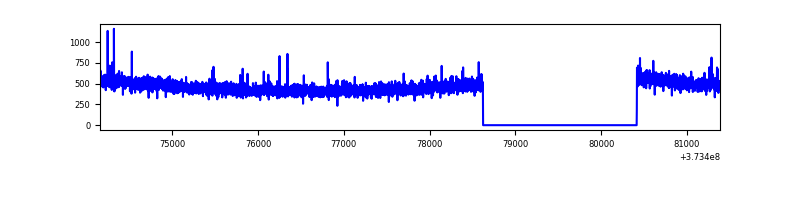

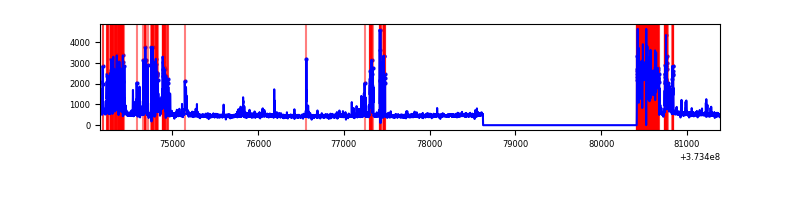

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7228 | 5436 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7228 | 5436 | 375 | 375 | 5.19% | 6.90% |  |
| C | 7228 | 5435 | 53 | 53 | 0.73% | 0.98% |  |
| D | 7228 | 5436 | 670 | 670 | 9.27% | 12.33% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11010 | 80.25 | 640 | 629 | 129.4 |
| A | 13 | 6 | 9229 | 66.48 | 640 | 629 | 129.4 |
| A | 0 | 254 | 6168 | 42.82 | 640 | 629 | 129.4 |
| B | 5 | 172 | 1332592 | 11643.06 | 608 | 592 | 114.4 |
| B | 0 | 219 | 52333 | 452.27 | 608 | 592 | 114.4 |
| B | 0 | 229 | 22533 | 191.79 | 608 | 592 | 114.4 |
| C | 0 | 10 | 183724 | 1262.08 | 630 | 636 | 145.1 |
| C | 1 | 241 | 125437 | 860.29 | 630 | 636 | 145.1 |
| C | 4 | 254 | 47670 | 324.22 | 630 | 636 | 145.1 |
| D | 8 | 195 | 1928196 | 12733.82 | 589 | 577 | 151.4 |
| D | 2 | 250 | 1309599 | 8647.38 | 589 | 577 | 151.4 |
| D | 12 | 218 | 269986 | 1779.71 | 589 | 577 | 151.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

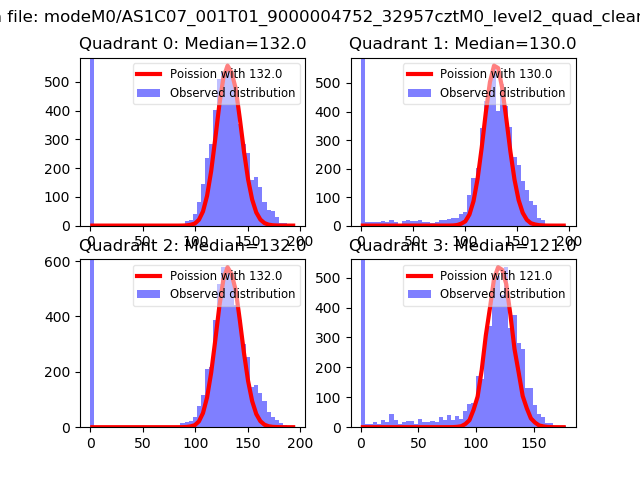

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

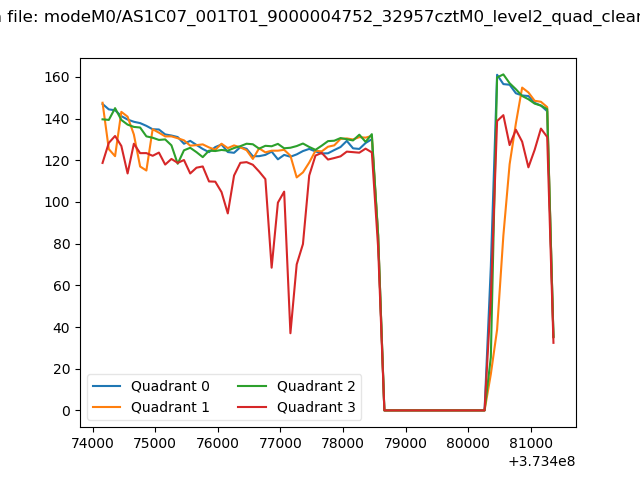

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

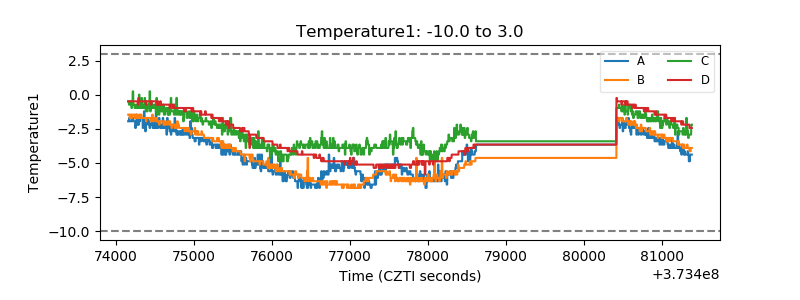

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

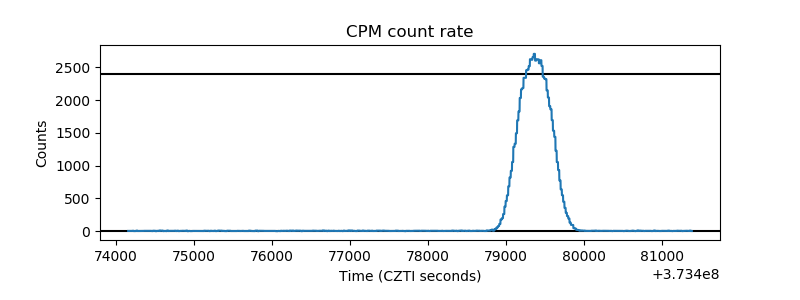

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

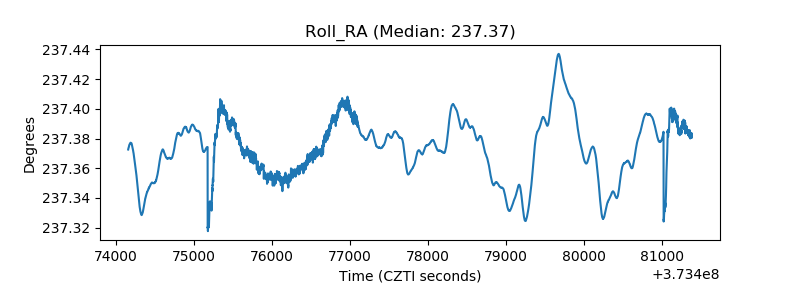

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
