| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_001T01_9000004752_32964cztM0_level2.evt | modeM0/AS1C07_001T01_9000004752_32964cztM0_level2_quad_clean.evt |
| Size (bytes) | 572,149,440 | 100,388,160 |
| Size | 545.6 MB | 95.7 MB |
| Events in quadrant A | 2,537,824 | 697,462 |
| Events in quadrant B | 3,974,285 | 674,407 |
| Events in quadrant C | 2,904,975 | 700,226 |
| Events in quadrant D | 7,529,588 | 574,206 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11523 | 3 |
| B | 0 | 15595 | 2 |
| C | 0 | 12363 | 2 |
| D | 0 | 26322 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 114 | 0 |
| B | 0 | 114 | 0 |
| C | 0 | 114 | 0 |
| D | 0 | 114 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 16 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5624 | 12 | 0.213371% |
| B | 5624 | 472 | 8.392603% |
| C | 5624 | 83 | 1.475818% |
| D | 5624 | 1243 | 22.101707% |

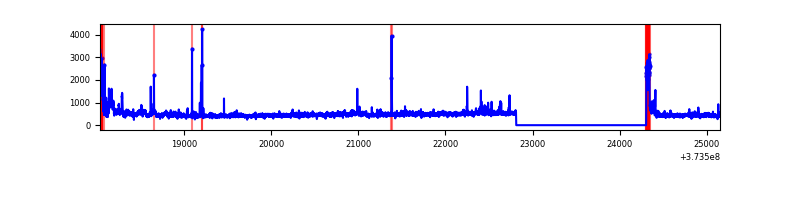

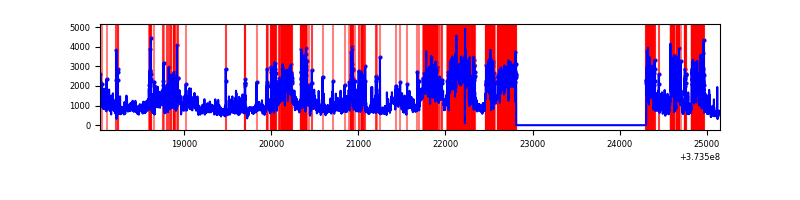

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7117 | 5625 | 2 | 2 | 0.03% | 0.04% |  |
| B | 7117 | 5625 | 307 | 307 | 4.31% | 5.46% |  |
| C | 7117 | 5625 | 62 | 62 | 0.87% | 1.10% |  |
| D | 7117 | 5624 | 1106 | 1106 | 15.54% | 19.67% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 235 | 60249 | 471.86 | 634 | 620 | 126.4 |
| A | 14 | 238 | 13472 | 101.7 | 634 | 620 | 126.4 |
| A | 13 | 254 | 10038 | 74.53 | 634 | 620 | 126.4 |
| B | 5 | 172 | 1145168 | 9819.74 | 611 | 594 | 116.6 |
| B | 0 | 219 | 117127 | 999.78 | 611 | 594 | 116.6 |
| B | 15 | 201 | 84996 | 724.12 | 611 | 594 | 116.6 |
| C | 0 | 10 | 307045 | 2164.88 | 614 | 619 | 141.5 |
| C | 9 | 187 | 81537 | 571.68 | 614 | 619 | 141.5 |
| C | 1 | 241 | 59320 | 414.72 | 614 | 619 | 141.5 |
| D | 8 | 195 | 1602295 | 11227.68 | 546 | 531 | 142.7 |
| D | 12 | 218 | 1229776 | 8616.48 | 546 | 531 | 142.7 |
| D | 7 | 80 | 1106934 | 7755.41 | 546 | 531 | 142.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

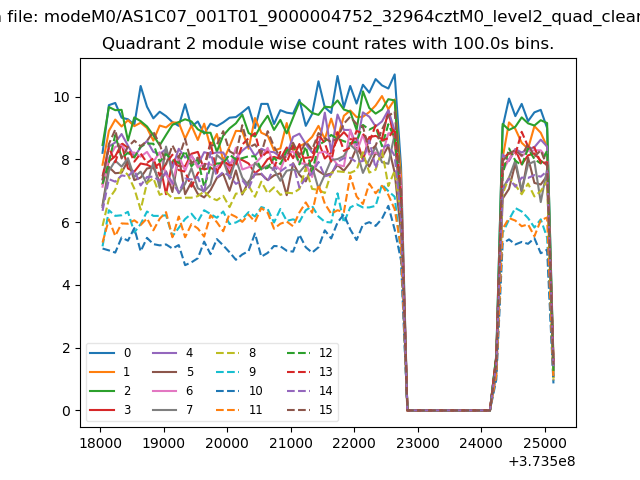

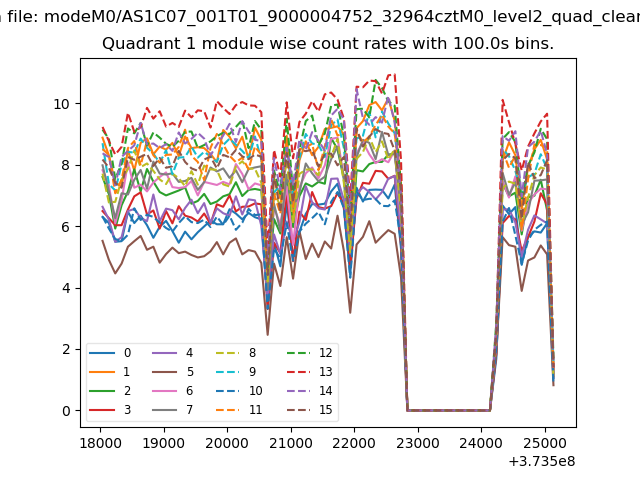

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

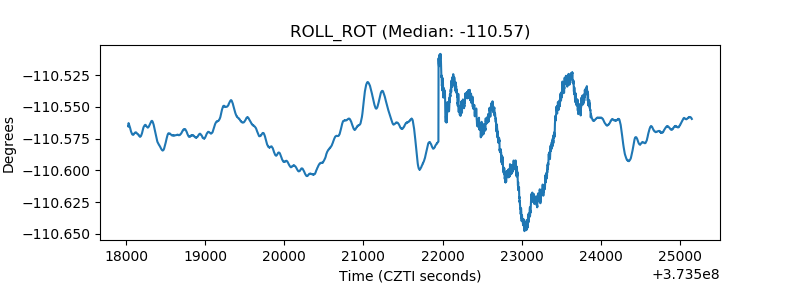

| _ROLL_ROT |  |

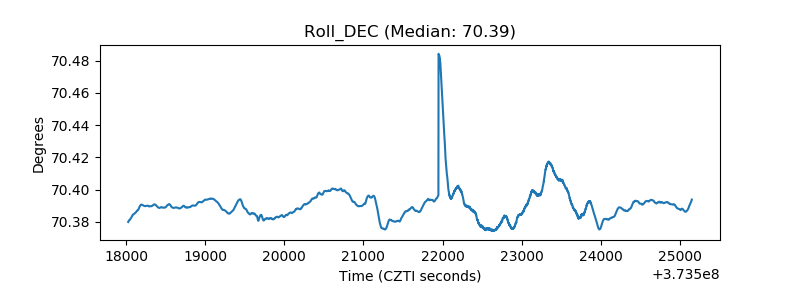

| _Roll_DEC |  |

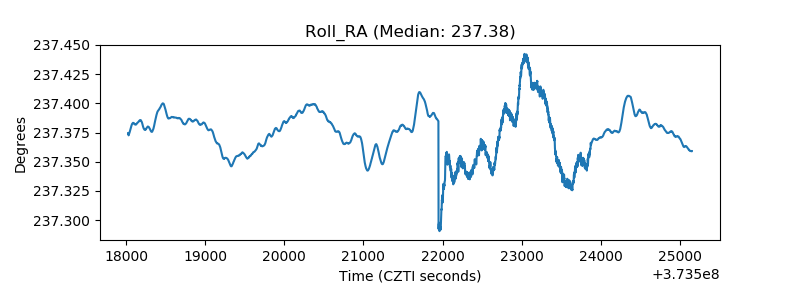

| _Roll_RA |  |

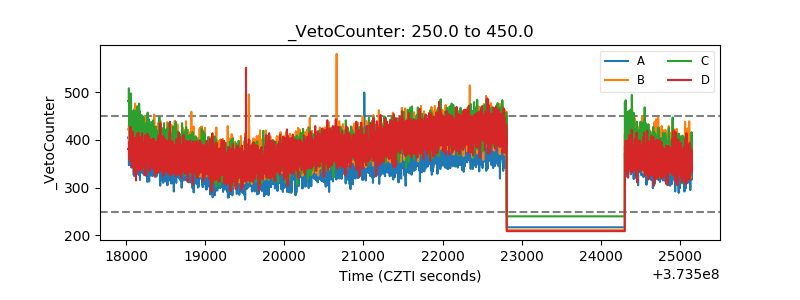

| Veto Counter |  |
