| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_003T01_9000004754_32969cztM0_level2.evt | modeM0/AS1C07_003T01_9000004754_32969cztM0_level2_quad_clean.evt |
| Size (bytes) | 452,416,320 | 81,074,880 |
| Size | 431.5 MB | 77.3 MB |
| Events in quadrant A | 2,578,415 | 525,533 |
| Events in quadrant B | 3,075,606 | 530,982 |
| Events in quadrant C | 2,865,282 | 525,118 |
| Events in quadrant D | 4,806,608 | 486,427 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 112 | 0 |
| B | 0 | 112 | 0 |
| C | 0 | 112 | 0 |
| D | 0 | 112 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27 | 0 |
| B | 0 | 27 | 0 |
| C | 0 | 27 | 0 |
| D | 0 | 28 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11263 | 3 |
| B | 0 | 12613 | 2 |
| C | 0 | 12041 | 2 |
| D | 0 | 18467 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5534 | 9 | 0.162631% |
| B | 5534 | 150 | 2.710517% |
| C | 5534 | 45 | 0.813155% |
| D | 5534 | 234 | 4.228406% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7117 | 5535 | 3 | 3 | 0.04% | 0.05% |  |
| B | 7117 | 5535 | 90 | 90 | 1.26% | 1.63% |  |
| C | 7117 | 5535 | 26 | 26 | 0.37% | 0.47% |  |
| D | 7117 | 5535 | 220 | 220 | 3.09% | 3.97% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 25845 | 189.09 | 654 | 641 | 133.3 |
| A | 12 | 227 | 10227 | 71.92 | 654 | 641 | 133.3 |
| A | 13 | 254 | 9443 | 66.04 | 654 | 641 | 133.3 |
| B | 5 | 172 | 422558 | 3313.21 | 650 | 633 | 127.3 |
| B | 5 | 200 | 23376 | 178.59 | 650 | 633 | 127.3 |
| B | 5 | 255 | 20854 | 158.79 | 650 | 633 | 127.3 |
| C | 0 | 10 | 176906 | 1198.45 | 632 | 636 | 147.1 |
| C | 9 | 54 | 137989 | 933.86 | 632 | 636 | 147.1 |
| C | 1 | 241 | 33117 | 220.84 | 632 | 636 | 147.1 |
| D | 8 | 195 | 1530898 | 9325.61 | 620 | 608 | 164.1 |
| D | 7 | 80 | 676535 | 4119.11 | 620 | 608 | 164.1 |
| D | 2 | 250 | 52125 | 313.95 | 620 | 608 | 164.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

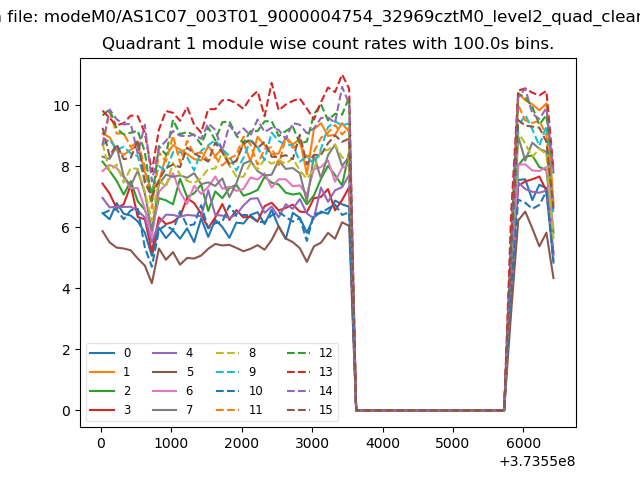

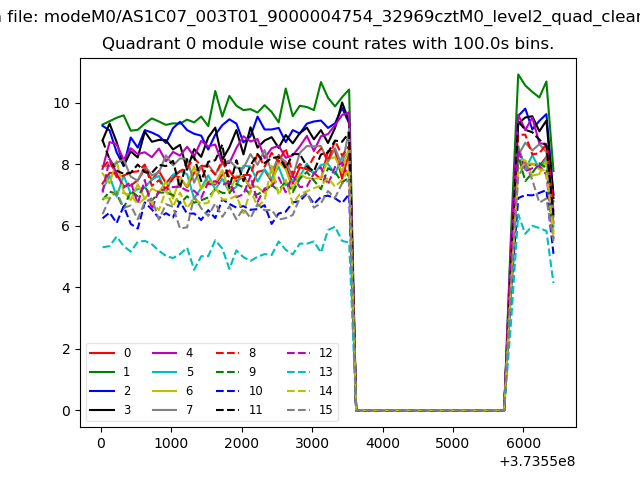

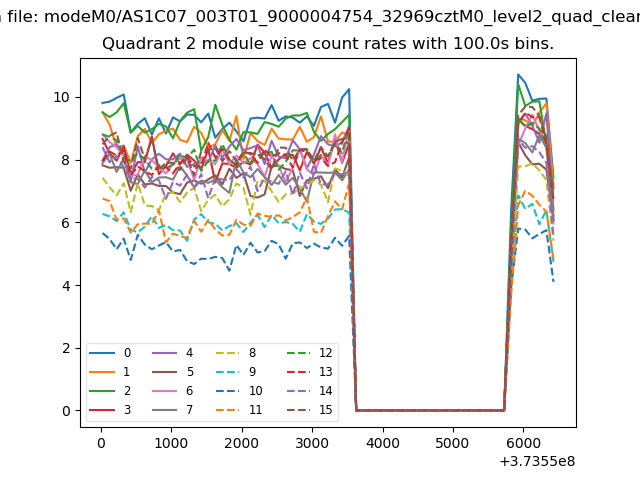

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
