| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_003T01_9000004754_32983cztM0_level2.evt | modeM0/AS1C07_003T01_9000004754_32983cztM0_level2_quad_clean.evt |
| Size (bytes) | 431,392,320 | 83,370,240 |
| Size | 411.4 MB | 79.5 MB |
| Events in quadrant A | 2,736,805 | 532,217 |
| Events in quadrant B | 3,080,192 | 537,584 |
| Events in quadrant C | 3,002,089 | 531,523 |
| Events in quadrant D | 3,842,336 | 508,580 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30 | 0 |
| B | 0 | 30 | 0 |
| C | 0 | 30 | 0 |
| D | 0 | 30 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11975 | 3 |
| B | 0 | 12838 | 2 |
| C | 0 | 12832 | 2 |
| D | 0 | 15289 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5939 | 9 | 0.151541% |
| B | 5939 | 99 | 1.666947% |
| C | 5939 | 95 | 1.599596% |
| D | 5939 | 96 | 1.616434% |

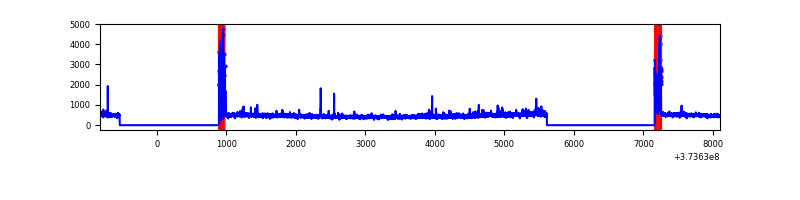

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8924 | 5941 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8924 | 5941 | 53 | 53 | 0.59% | 0.89% |  |
| C | 8924 | 5941 | 60 | 60 | 0.67% | 1.01% |  |
| D | 8924 | 5941 | 55 | 55 | 0.62% | 0.93% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 17651 | 118.6 | 702 | 686 | 143.0 |
| A | 13 | 254 | 10323 | 67.37 | 702 | 686 | 143.0 |
| A | 3 | 137 | 7006 | 44.18 | 702 | 686 | 143.0 |
| B | 5 | 172 | 255239 | 1859.02 | 700 | 682 | 136.9 |
| B | 5 | 255 | 17863 | 125.47 | 700 | 682 | 136.9 |
| B | 12 | 111 | 16681 | 116.84 | 700 | 682 | 136.9 |
| C | 0 | 10 | 245188 | 1549.53 | 678 | 685 | 157.8 |
| C | 3 | 233 | 68464 | 429.55 | 678 | 685 | 157.8 |
| C | 14 | 67 | 24632 | 151.76 | 678 | 685 | 157.8 |
| D | 8 | 195 | 570413 | 3184.86 | 674 | 658 | 178.9 |
| D | 2 | 250 | 175405 | 976.81 | 674 | 658 | 178.9 |
| D | 14 | 52 | 131390 | 730.77 | 674 | 658 | 178.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

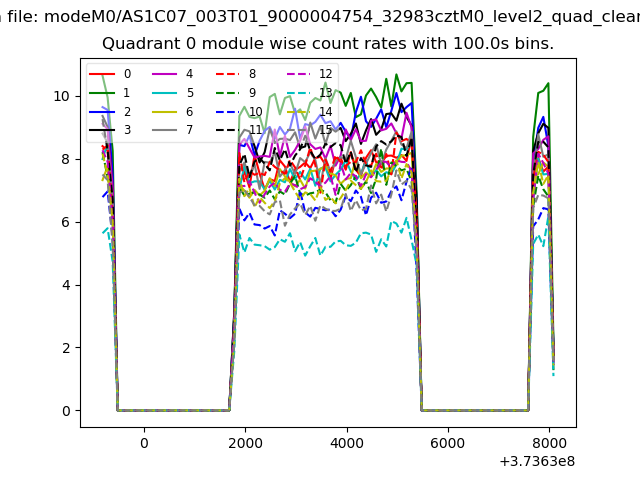

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

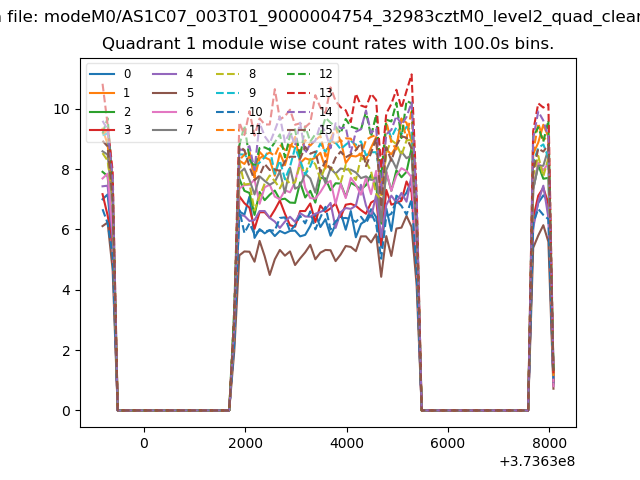

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

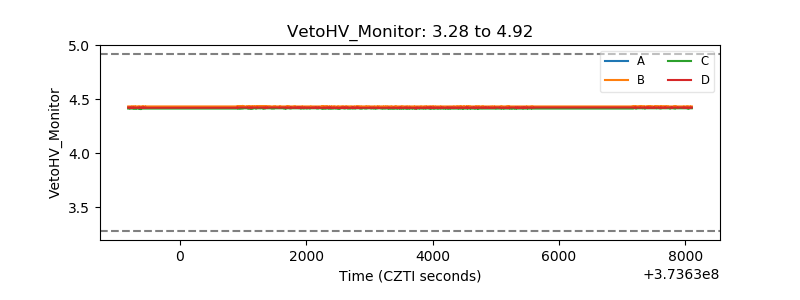

| Veto HV Monitor |  |
| Veto LLD |  |

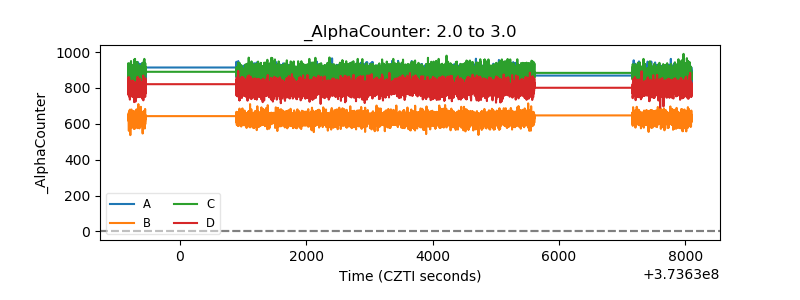

| Alpha Counter |  |
| _CPM_Rate |  |

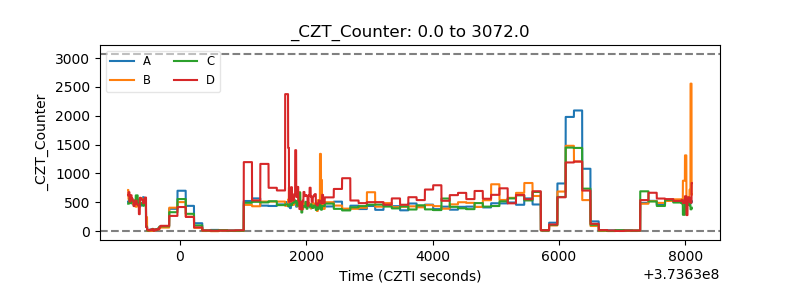

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

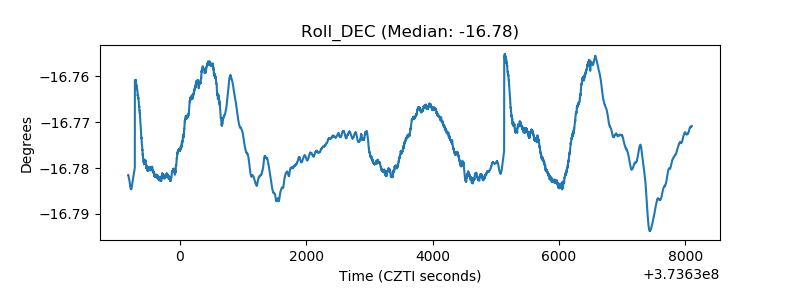

| _Roll_DEC |  |
| _Roll_RA |  |

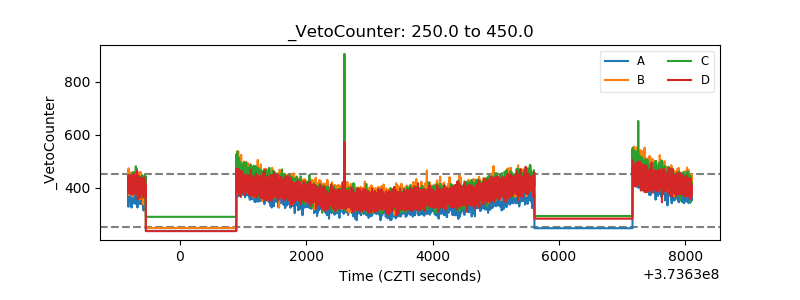

| Veto Counter |  |
