| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_003T01_9000004754_32986cztM0_level2.evt | modeM0/AS1C07_003T01_9000004754_32986cztM0_level2_quad_clean.evt |
| Size (bytes) | 433,627,200 | 89,208,000 |
| Size | 413.5 MB | 85.1 MB |
| Events in quadrant A | 2,510,974 | 603,293 |
| Events in quadrant B | 3,098,479 | 605,676 |
| Events in quadrant C | 2,564,108 | 585,409 |
| Events in quadrant D | 4,601,006 | 538,143 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 106 | 0 |
| B | 0 | 106 | 0 |
| C | 0 | 106 | 0 |
| D | 0 | 106 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10782 | 2 |
| B | 0 | 12592 | 1 |
| C | 0 | 11079 | 1 |
| D | 0 | 17265 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5272 | 9 | 0.170713% |
| B | 5272 | 179 | 3.395296% |
| C | 5272 | 58 | 1.100152% |
| D | 5272 | 423 | 8.023520% |

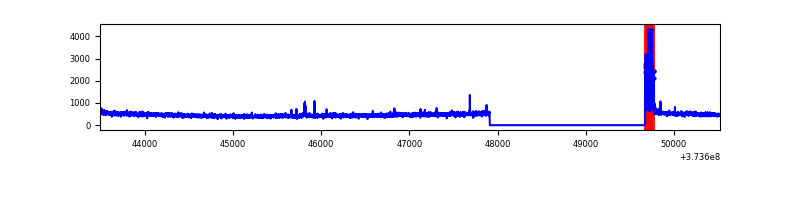

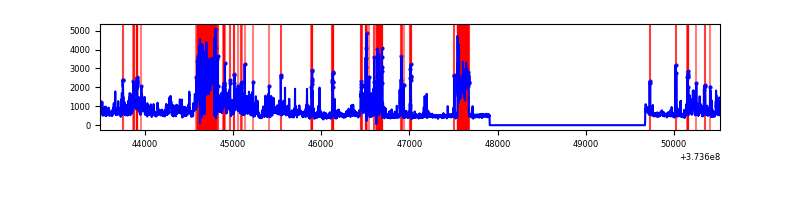

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7036 | 5273 | 2 | 2 | 0.03% | 0.04% |  |
| B | 7036 | 5273 | 105 | 105 | 1.49% | 1.99% |  |
| C | 7036 | 5273 | 39 | 39 | 0.55% | 0.74% |  |
| D | 7036 | 5273 | 386 | 386 | 5.49% | 7.32% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 20307 | 151.29 | 643 | 632 | 130.0 |
| A | 13 | 254 | 8888 | 63.49 | 643 | 632 | 130.0 |
| A | 3 | 137 | 5796 | 39.71 | 643 | 632 | 130.0 |
| B | 5 | 172 | 497547 | 4096.69 | 631 | 617 | 121.3 |
| B | 0 | 197 | 57717 | 470.73 | 631 | 617 | 121.3 |
| B | 0 | 199 | 21576 | 172.79 | 631 | 617 | 121.3 |
| C | 0 | 10 | 150637 | 1058.01 | 609 | 615 | 141.8 |
| C | 3 | 233 | 13796 | 92.96 | 609 | 615 | 141.8 |
| C | 14 | 67 | 12686 | 85.13 | 609 | 615 | 141.8 |
| D | 7 | 80 | 1227332 | 7954.15 | 586 | 575 | 154.2 |
| D | 8 | 195 | 443216 | 2870.03 | 586 | 575 | 154.2 |
| D | 12 | 227 | 375782 | 2432.8 | 586 | 575 | 154.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

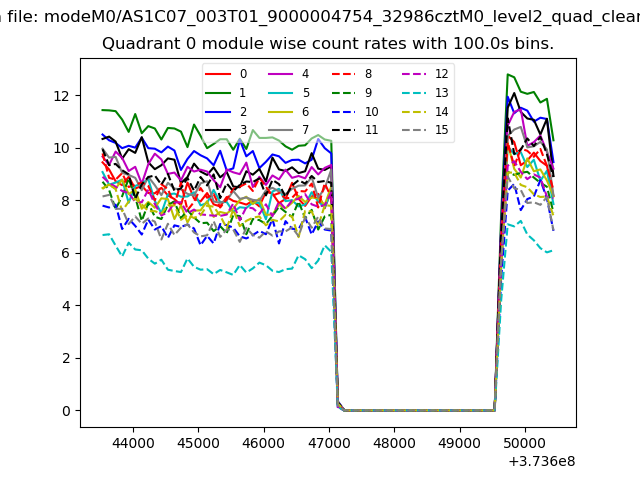

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

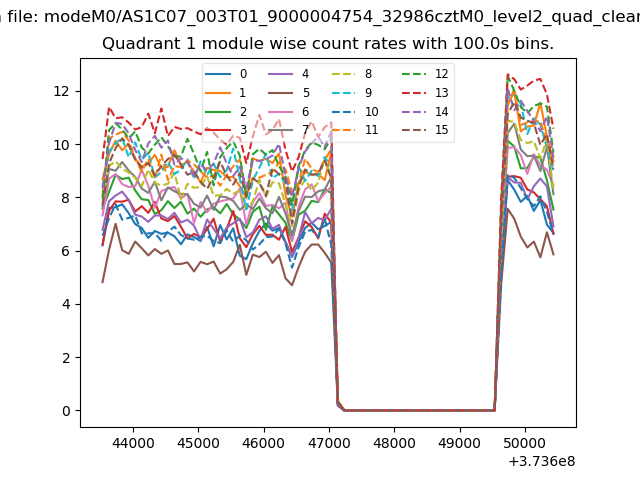

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

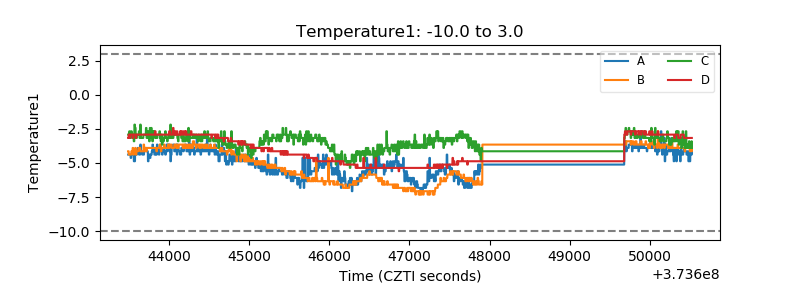

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

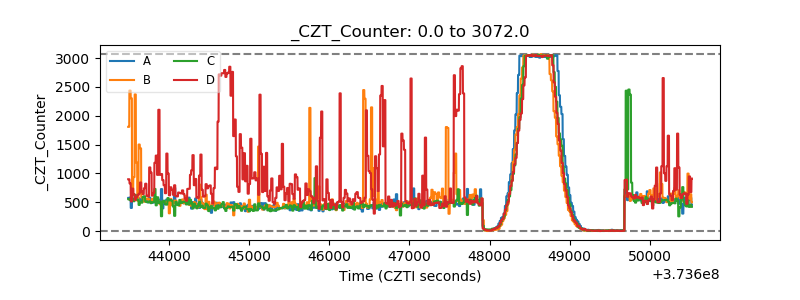

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

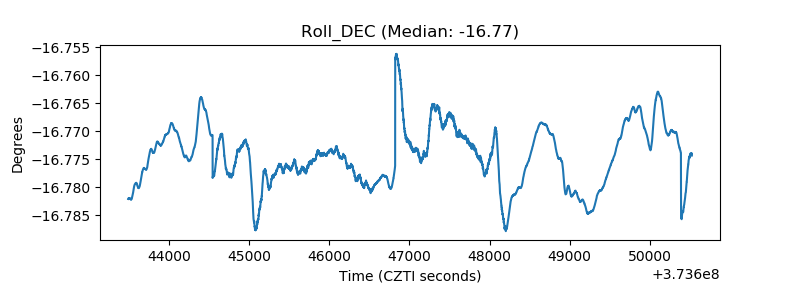

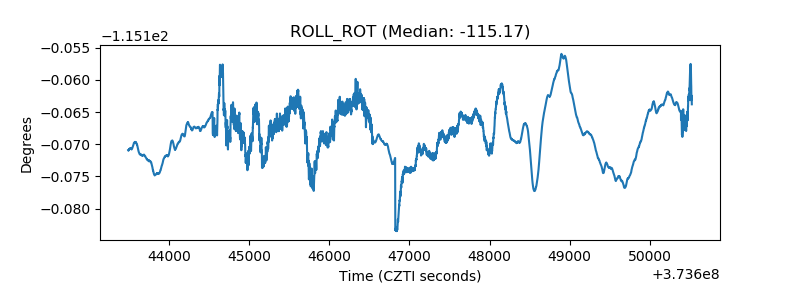

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
