| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_007T07_9000004758_33069cztM0_level2.evt | modeM0/AS1A11_007T07_9000004758_33069cztM0_level2_quad_clean.evt |
| Size (bytes) | 324,095,040 | 26,899,200 |
| Size | 309.1 MB | 25.7 MB |
| Events in quadrant A | 1,468,662 | 154,565 |
| Events in quadrant B | 1,847,413 | 152,009 |
| Events in quadrant C | 2,004,194 | 154,849 |
| Events in quadrant D | 4,271,235 | 119,155 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 66 | 0 |
| B | 0 | 66 | 0 |
| C | 0 | 66 | 0 |
| D | 0 | 66 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6591 | 2 |
| B | 0 | 7598 | 1 |
| C | 0 | 8200 | 1 |
| D | 0 | 14969 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3286 | 2 | 0.060864% |
| B | 3286 | 109 | 3.317103% |
| C | 3286 | 81 | 2.465003% |
| D | 3286 | 541 | 16.463786% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4629 | 3287 | 0 | 0 | 0.00% | 0.00% |  |
| B | 4629 | 3287 | 81 | 81 | 1.75% | 2.46% |  |
| C | 4629 | 3287 | 72 | 72 | 1.56% | 2.19% |  |
| D | 4629 | 3287 | 513 | 513 | 11.08% | 15.61% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 6080 | 72.44 | 378 | 371 | 78.8 |
| A | 3 | 137 | 3725 | 42.56 | 378 | 371 | 78.8 |
| A | 0 | 226 | 3250 | 36.53 | 378 | 371 | 78.8 |
| B | 5 | 172 | 317306 | 4300.02 | 373 | 364 | 73.7 |
| B | 0 | 189 | 19333 | 257.36 | 373 | 364 | 73.7 |
| B | 12 | 111 | 8960 | 116.62 | 373 | 364 | 73.7 |
| C | 0 | 207 | 464786 | 5425.77 | 364 | 367 | 85.6 |
| C | 0 | 10 | 74412 | 865.06 | 364 | 367 | 85.6 |
| C | 7 | 221 | 33301 | 384.77 | 364 | 367 | 85.6 |
| D | 7 | 223 | 2066479 | 23165.47 | 335 | 327 | 89.2 |
| D | 8 | 195 | 455473 | 5103.05 | 335 | 327 | 89.2 |
| D | 2 | 250 | 117564 | 1314.45 | 335 | 327 | 89.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

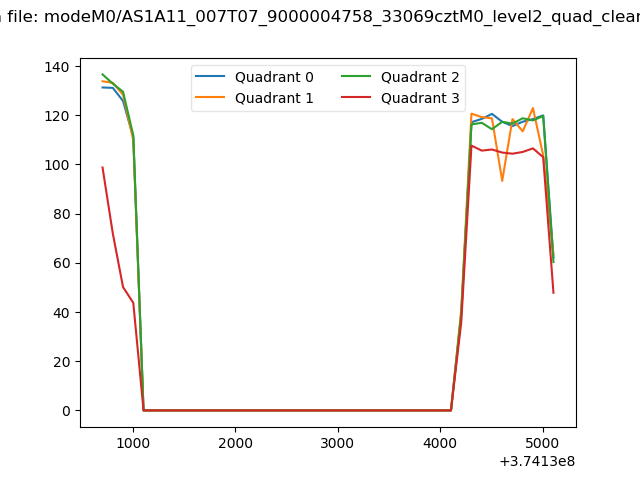

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

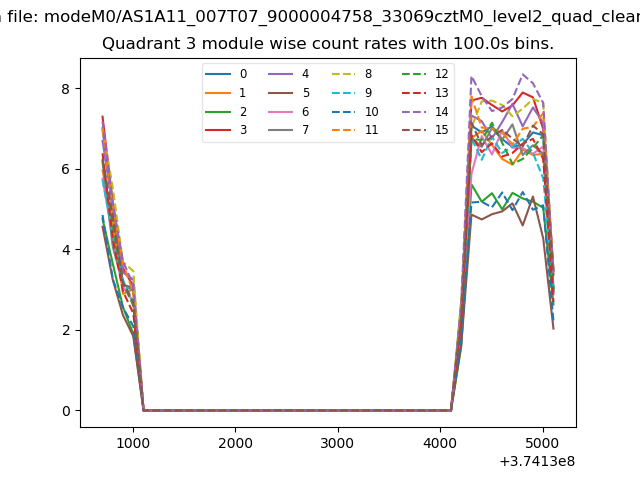

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

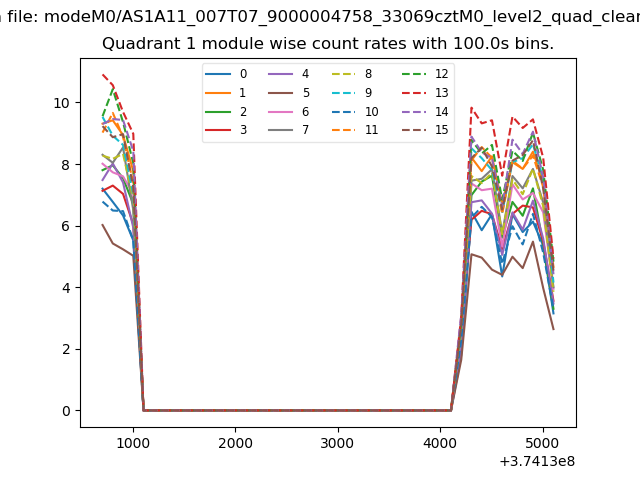

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

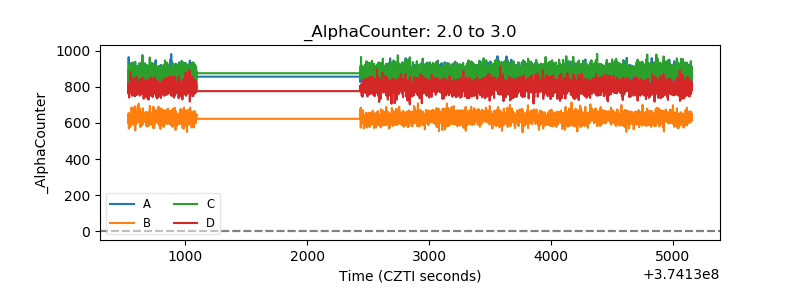

| Alpha Counter |  |

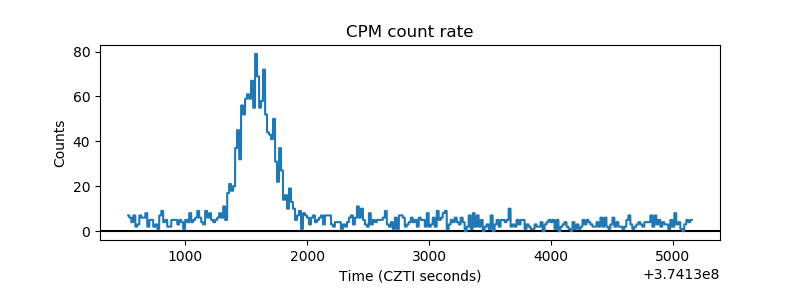

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

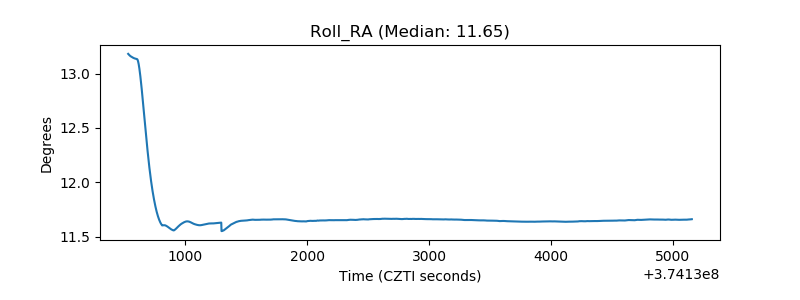

| _Roll_RA |  |

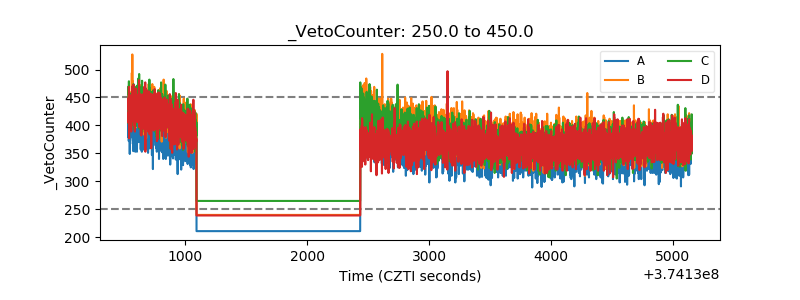

| Veto Counter |  |
