| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_007T07_9000004758_33074cztM0_level2.evt | modeM0/AS1A11_007T07_9000004758_33074cztM0_level2_quad_clean.evt |
| Size (bytes) | 716,446,080 | 86,495,040 |
| Size | 683.3 MB | 82.5 MB |
| Events in quadrant A | 2,466,350 | 659,303 |
| Events in quadrant B | 4,164,445 | 605,448 |
| Events in quadrant C | 3,591,271 | 620,200 |
| Events in quadrant D | 11,139,282 | 383,635 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 102 | 0 |
| B | 0 | 102 | 0 |
| C | 0 | 102 | 0 |
| D | 0 | 102 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10358 | 2 |
| B | 0 | 15560 | 1 |
| C | 0 | 13795 | 1 |
| D | 0 | 36502 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4976 | 6 | 0.120579% |
| B | 4976 | 632 | 12.700965% |
| C | 4976 | 301 | 6.049035% |
| D | 4976 | 3594 | 72.226688% |

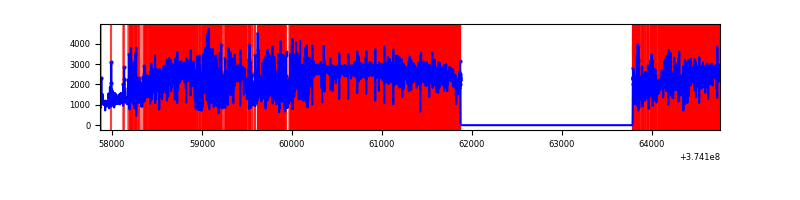

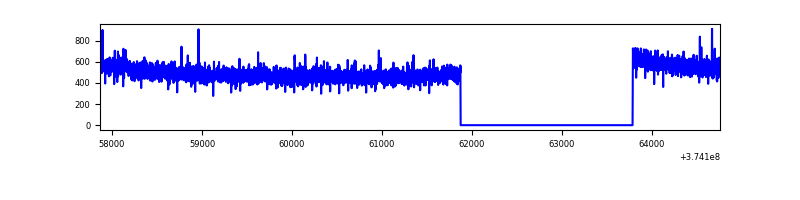

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6889 | 4977 | 0 | 0 | 0.00% | 0.00% |  |
| B | 6889 | 4977 | 437 | 437 | 6.34% | 8.78% |  |
| C | 6889 | 4977 | 266 | 266 | 3.86% | 5.34% |  |
| D | 6889 | 4977 | 3406 | 3406 | 49.44% | 68.43% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 8860 | 65.49 | 633 | 621 | 125.8 |
| A | 13 | 6 | 8125 | 59.65 | 633 | 621 | 125.8 |
| A | 15 | 169 | 7152 | 51.91 | 633 | 621 | 125.8 |
| B | 5 | 172 | 1516898 | 13810.13 | 586 | 571 | 109.8 |
| B | 0 | 189 | 109328 | 990.52 | 586 | 571 | 109.8 |
| B | 5 | 200 | 64519 | 582.41 | 586 | 571 | 109.8 |
| C | 8 | 111 | 919231 | 6775.68 | 595 | 601 | 135.6 |
| C | 1 | 241 | 149786 | 1100.37 | 595 | 601 | 135.6 |
| C | 0 | 10 | 90942 | 666.34 | 595 | 601 | 135.6 |
| D | 7 | 223 | 6259484 | 54344.61 | 433 | 424 | 115.2 |
| D | 12 | 218 | 1712622 | 14866.25 | 433 | 424 | 115.2 |
| D | 8 | 195 | 459426 | 3985.31 | 433 | 424 | 115.2 |

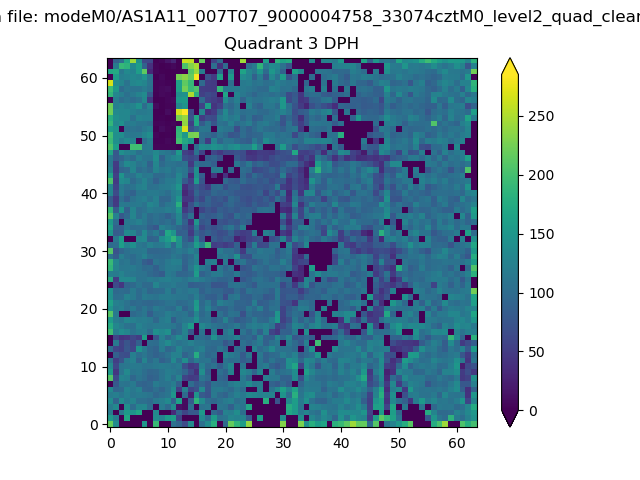

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

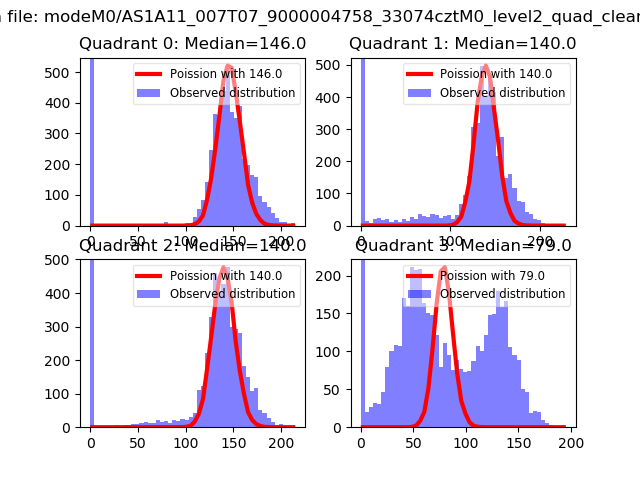

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

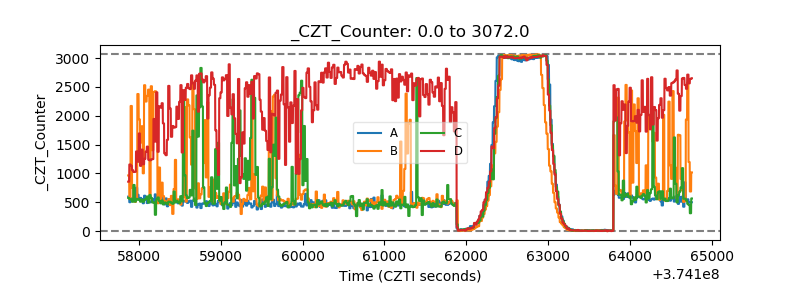

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

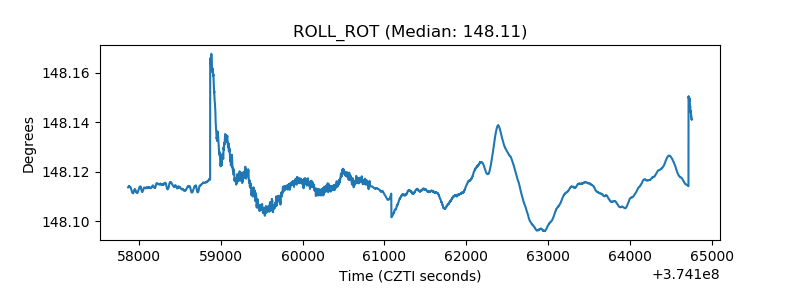

| _ROLL_ROT |  |
| _Roll_DEC |  |

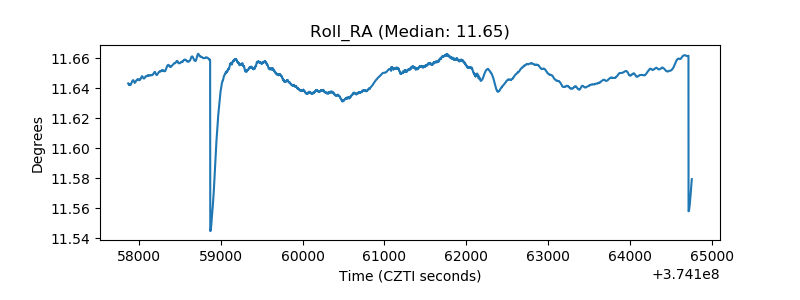

| _Roll_RA |  |

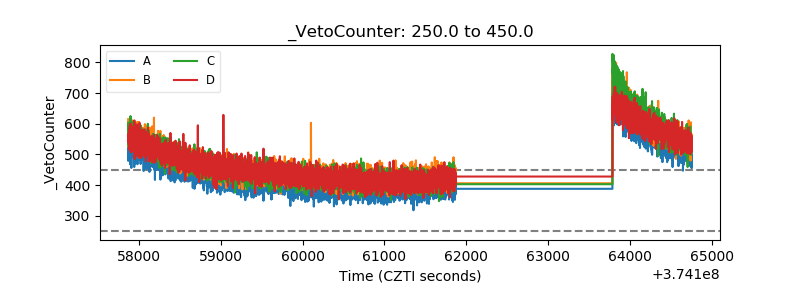

| Veto Counter |  |
