| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_007T07_9000004758_33076cztM0_level2.evt | modeM0/AS1A11_007T07_9000004758_33076cztM0_level2_quad_clean.evt |
| Size (bytes) | 722,877,120 | 75,931,200 |
| Size | 689.4 MB | 72.4 MB |
| Events in quadrant A | 2,467,260 | 588,524 |
| Events in quadrant B | 3,576,122 | 555,756 |
| Events in quadrant C | 2,940,259 | 574,355 |
| Events in quadrant D | 12,572,205 | 230,104 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 100 | 0 |
| B | 0 | 100 | 0 |
| C | 0 | 100 | 0 |
| D | 0 | 100 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10275 | 2 |
| B | 0 | 13783 | 1 |
| C | 0 | 11805 | 1 |
| D | 0 | 40752 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4976 | 2 | 0.040193% |
| B | 4976 | 327 | 6.571543% |
| C | 4976 | 89 | 1.788585% |
| D | 4976 | 4680 | 94.051447% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7099 | 4977 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7099 | 4977 | 245 | 245 | 3.45% | 4.92% |  |
| C | 7099 | 4977 | 62 | 62 | 0.87% | 1.25% |  |
| D | 7098 | 4976 | 4585 | 4585 | 64.60% | 92.14% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 12049 | 90.26 | 634 | 624 | 126.6 |
| A | 15 | 169 | 6582 | 47.07 | 634 | 624 | 126.6 |
| A | 14 | 4 | 5920 | 41.84 | 634 | 624 | 126.6 |
| B | 5 | 172 | 896233 | 7864.23 | 608 | 594 | 113.9 |
| B | 5 | 200 | 69713 | 606.91 | 608 | 594 | 113.9 |
| B | 0 | 219 | 54454 | 472.92 | 608 | 594 | 113.9 |
| C | 7 | 221 | 194993 | 1394.59 | 614 | 618 | 139.4 |
| C | 0 | 10 | 165469 | 1182.76 | 614 | 618 | 139.4 |
| C | 8 | 111 | 158964 | 1136.09 | 614 | 618 | 139.4 |
| D | 7 | 223 | 9149099 | 98172.94 | 350 | 344 | 93.2 |
| D | 8 | 195 | 968203 | 10385.85 | 350 | 344 | 93.2 |
| D | 12 | 218 | 268847 | 2881.24 | 350 | 344 | 93.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

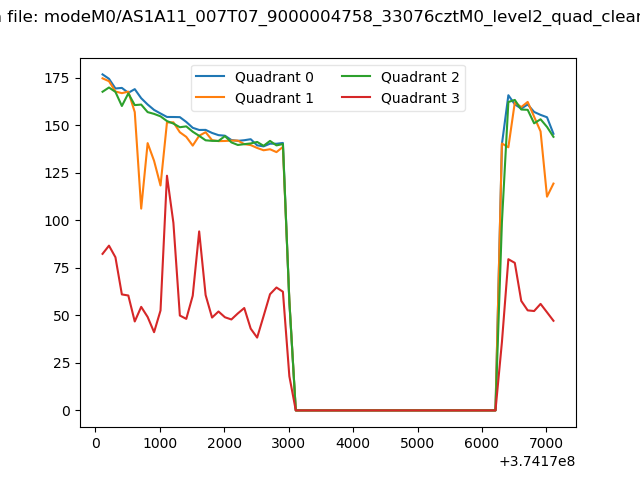

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

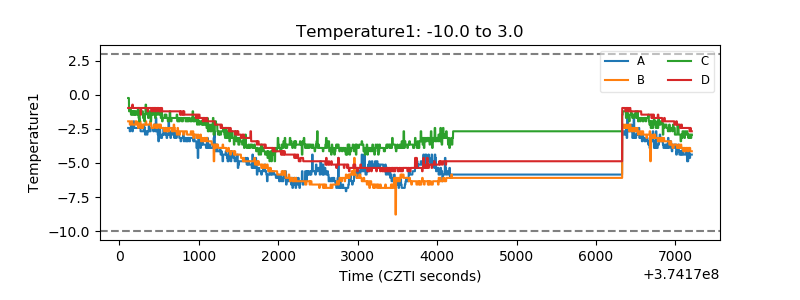

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

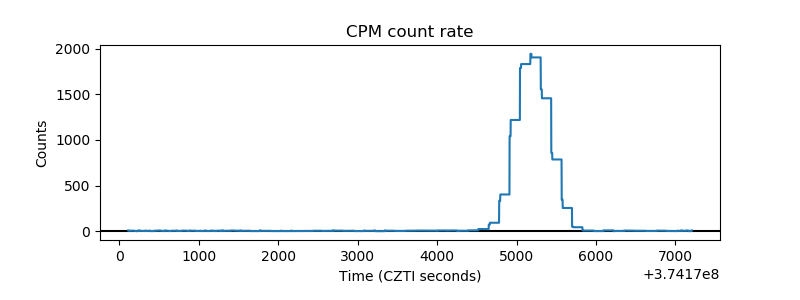

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

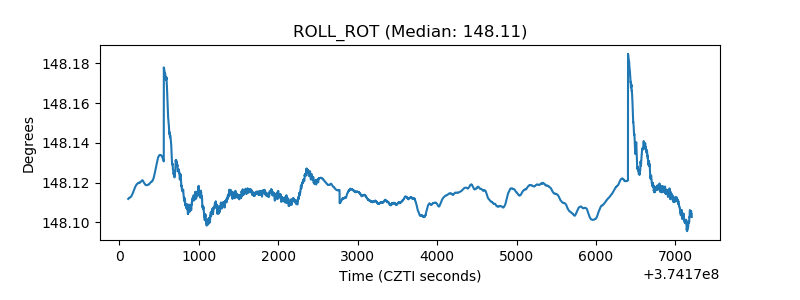

| _ROLL_ROT |  |
| _Roll_DEC |  |

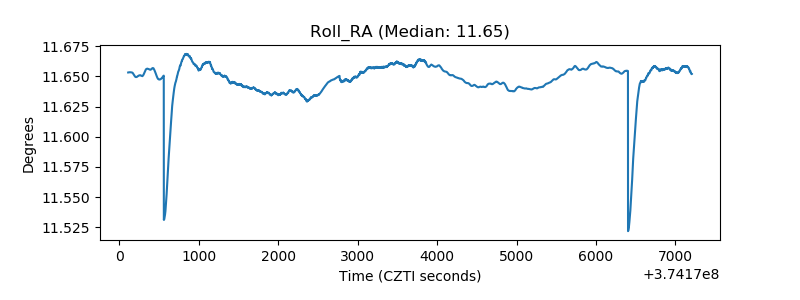

| _Roll_RA |  |
| Veto Counter |  |
