| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_007T07_9000004758_33079cztM0_level2.evt | modeM0/AS1A11_007T07_9000004758_33079cztM0_level2_quad_clean.evt |
| Size (bytes) | 608,097,600 | 62,000,640 |
| Size | 579.9 MB | 59.1 MB |
| Events in quadrant A | 2,420,617 | 423,201 |
| Events in quadrant B | 3,605,723 | 387,568 |
| Events in quadrant C | 3,111,834 | 414,005 |
| Events in quadrant D | 8,912,254 | 273,240 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 108 | 0 |
| B | 0 | 108 | 0 |
| C | 0 | 108 | 0 |
| D | 0 | 108 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10892 | 3 |
| B | 0 | 14265 | 2 |
| C | 0 | 12812 | 2 |
| D | 0 | 30276 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30 | 0 |
| B | 0 | 30 | 0 |
| C | 0 | 30 | 0 |
| D | 0 | 31 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5409 | 6 | 0.110926% |
| B | 5409 | 469 | 8.670734% |
| C | 5409 | 150 | 2.773156% |
| D | 5409 | 2063 | 38.140137% |

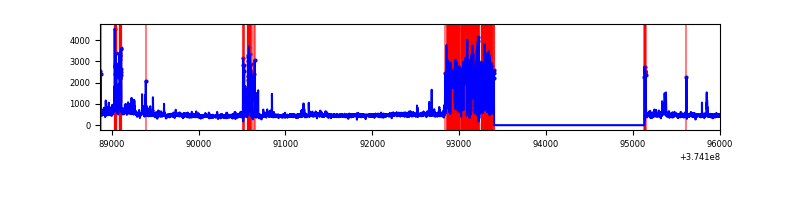

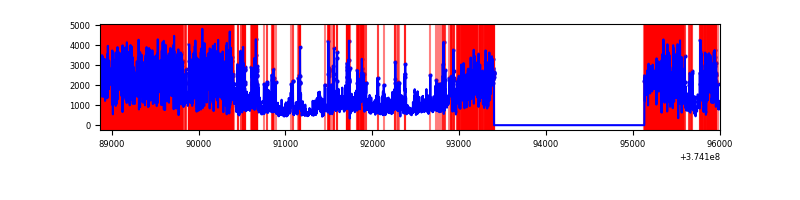

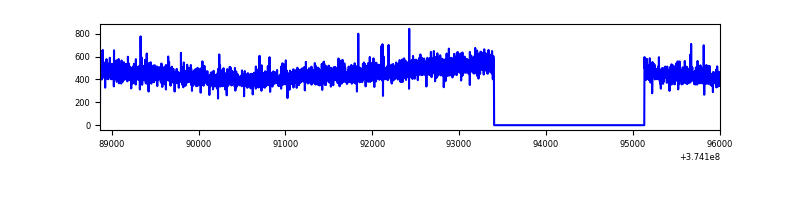

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7141 | 5410 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7141 | 5409 | 359 | 359 | 5.03% | 6.64% |  |
| C | 7141 | 5410 | 116 | 116 | 1.62% | 2.14% |  |
| D | 7141 | 5409 | 1804 | 1804 | 25.26% | 33.35% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11414 | 85.6 | 621 | 608 | 126.2 |
| A | 15 | 169 | 6585 | 47.35 | 621 | 608 | 126.2 |
| A | 3 | 137 | 5947 | 42.29 | 621 | 608 | 126.2 |
| B | 5 | 172 | 1069463 | 9425.03 | 588 | 572 | 113.4 |
| B | 0 | 219 | 65692 | 574.2 | 588 | 572 | 113.4 |
| B | 0 | 189 | 44937 | 391.19 | 588 | 572 | 113.4 |
| C | 8 | 111 | 331666 | 2387.4 | 600 | 606 | 138.7 |
| C | 0 | 10 | 233903 | 1682.4 | 600 | 606 | 138.7 |
| C | 7 | 221 | 150419 | 1080.36 | 600 | 606 | 138.7 |
| D | 12 | 218 | 5354957 | 41254.52 | 495 | 485 | 129.8 |
| D | 8 | 195 | 790039 | 6083.26 | 495 | 485 | 129.8 |
| D | 13 | 249 | 208487 | 1602.59 | 495 | 485 | 129.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

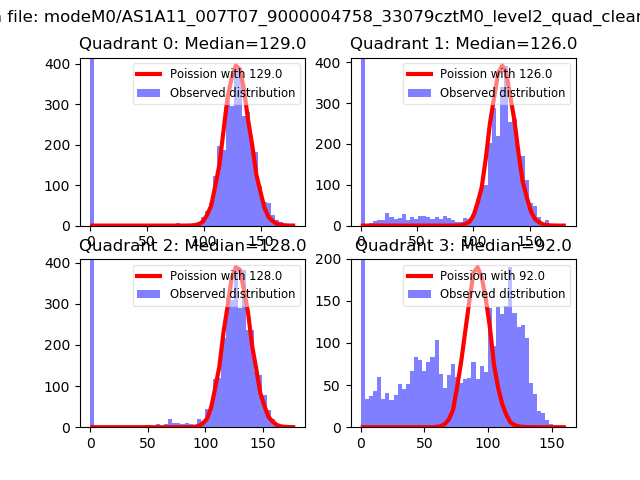

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

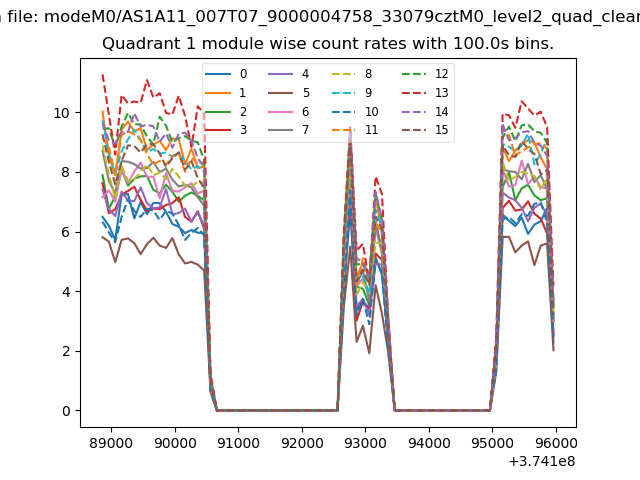

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

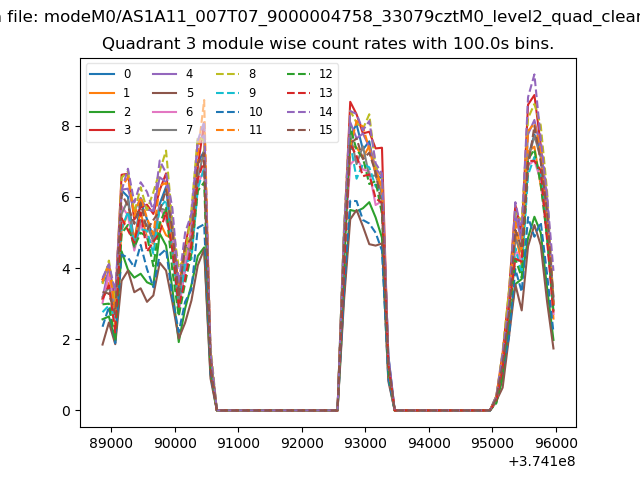

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

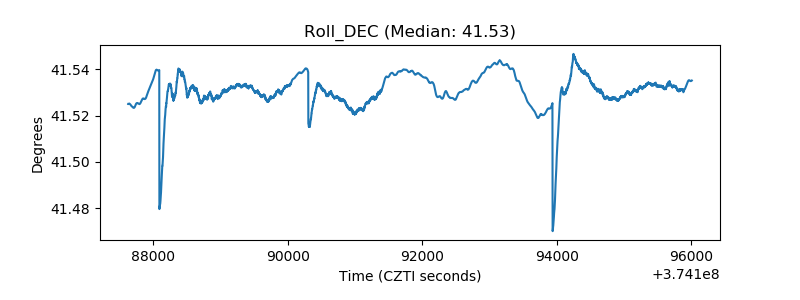

| _Roll_DEC |  |
| _Roll_RA |  |

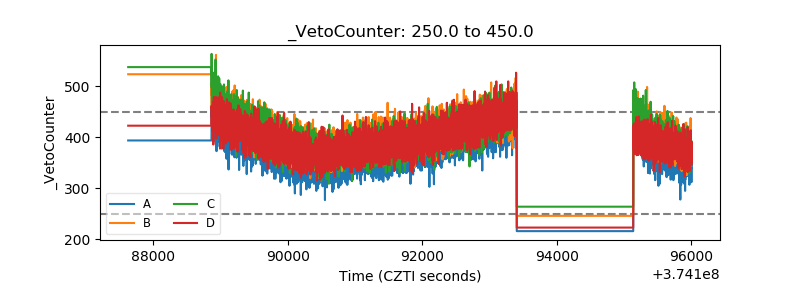

| Veto Counter |  |
