| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_008T06_9000004762_33096cztM0_level2.evt | modeM0/AS1A11_008T06_9000004762_33096cztM0_level2_quad_clean.evt |
| Size (bytes) | 709,502,400 | 63,498,240 |
| Size | 676.6 MB | 60.6 MB |
| Events in quadrant A | 2,699,740 | 412,616 |
| Events in quadrant B | 4,218,513 | 394,329 |
| Events in quadrant C | 4,698,868 | 365,462 |
| Events in quadrant D | 9,466,901 | 331,777 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26 | 0 |
| B | 0 | 26 | 0 |
| C | 0 | 26 | 0 |
| D | 0 | 26 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12033 | 3 |
| B | 0 | 16474 | 2 |
| C | 0 | 17968 | 2 |
| D | 0 | 32234 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5973 | 5 | 0.083710% |
| B | 5973 | 422 | 7.065126% |
| C | 5973 | 649 | 10.865562% |
| D | 5973 | 1679 | 28.109828% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

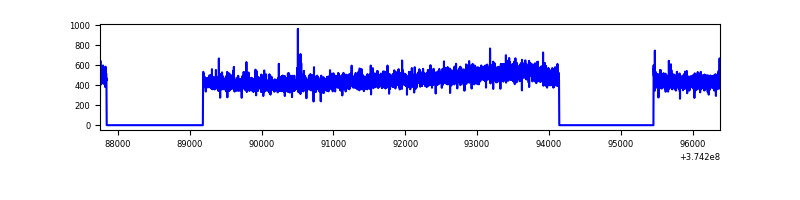

| A | 8629 | 5975 | 0 | 0 | 0.00% | 0.00% |  |

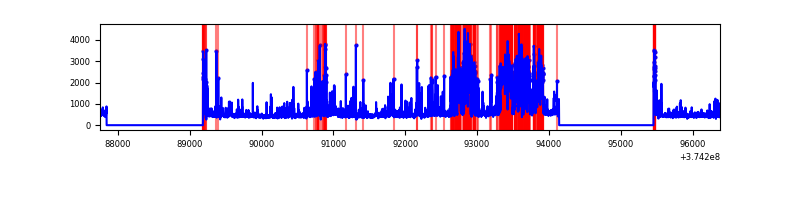

| B | 8629 | 5975 | 281 | 281 | 3.26% | 4.70% |  |
| C | 8629 | 5975 | 504 | 504 | 5.84% | 8.44% |  |
| D | 8629 | 5975 | 1769 | 1769 | 20.50% | 29.61% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11659 | 77.86 | 695 | 681 | 141.0 |
| A | 3 | 137 | 6357 | 40.26 | 695 | 681 | 141.0 |
| A | 0 | 226 | 5885 | 36.91 | 695 | 681 | 141.0 |
| B | 5 | 172 | 915169 | 7045.71 | 675 | 660 | 129.8 |
| B | 5 | 200 | 213772 | 1641.89 | 675 | 660 | 129.8 |
| B | 0 | 189 | 158478 | 1215.89 | 675 | 660 | 129.8 |
| C | 8 | 111 | 1380359 | 9324.98 | 638 | 643 | 148.0 |
| C | 1 | 23 | 325557 | 2195.97 | 638 | 643 | 148.0 |
| C | 7 | 221 | 296545 | 1999.89 | 638 | 643 | 148.0 |
| D | 7 | 223 | 5069047 | 31072.73 | 621 | 607 | 163.1 |
| D | 8 | 195 | 1209789 | 7413.05 | 621 | 607 | 163.1 |
| D | 12 | 218 | 229660 | 1404.24 | 621 | 607 | 163.1 |

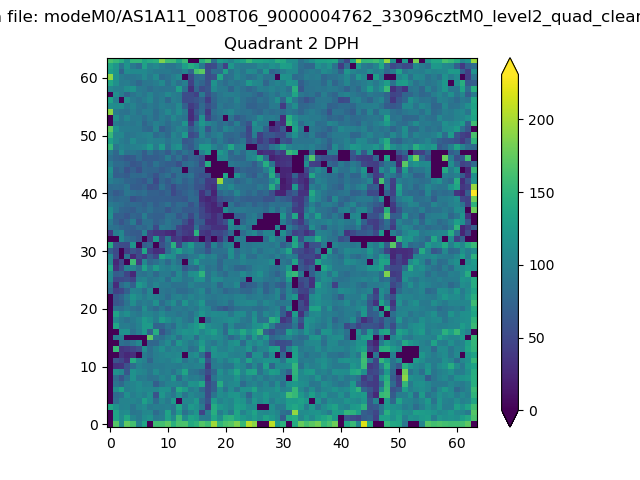

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

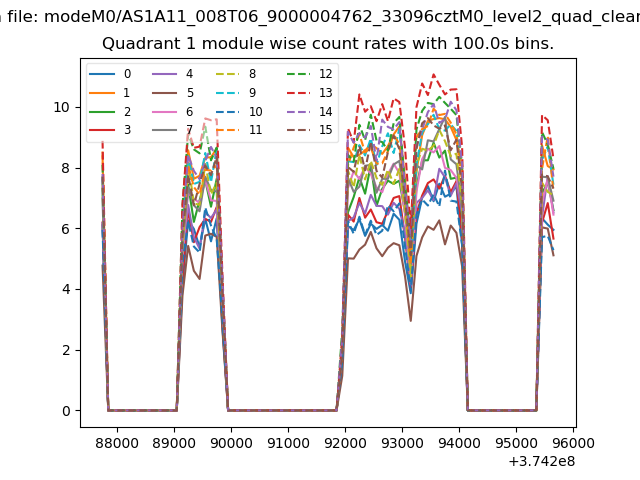

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

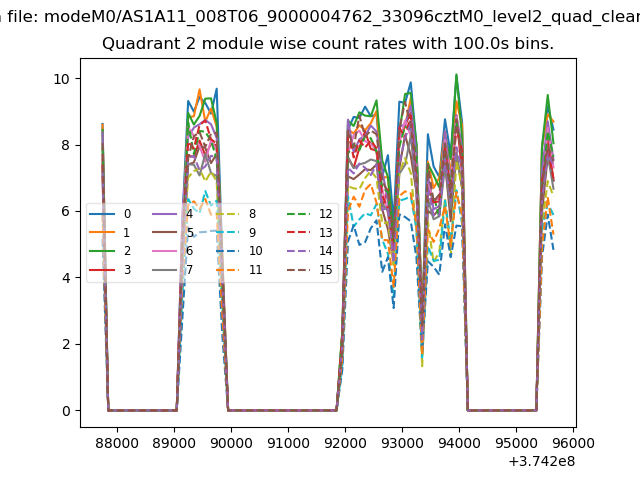

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

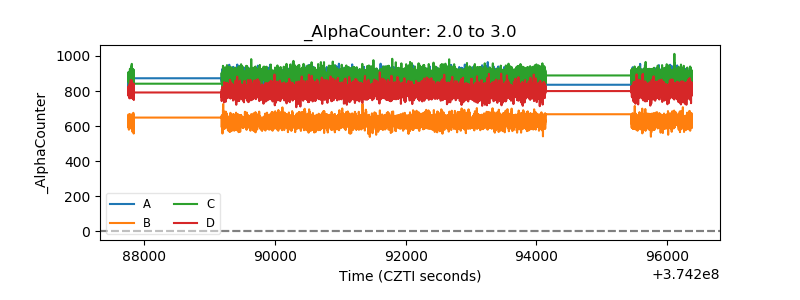

| Alpha Counter |  |

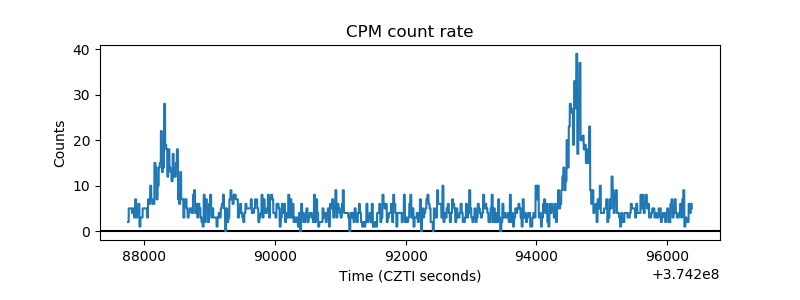

| _CPM_Rate |  |

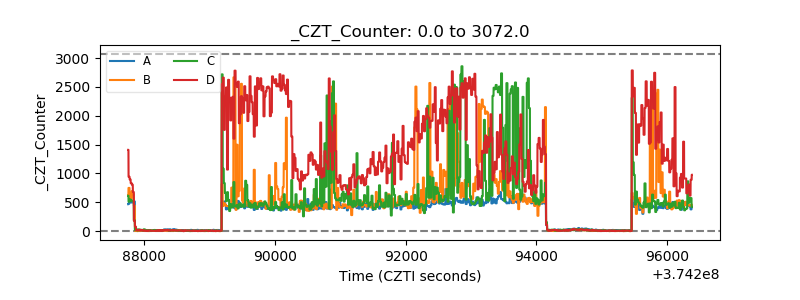

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
