| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_008T06_9000004762_33108cztM0_level2.evt | modeM0/AS1A11_008T06_9000004762_33108cztM0_level2_quad_clean.evt |
| Size (bytes) | 670,772,160 | 59,371,200 |
| Size | 639.7 MB | 56.6 MB |
| Events in quadrant A | 2,432,917 | 408,412 |
| Events in quadrant B | 3,125,315 | 397,840 |
| Events in quadrant C | 3,857,212 | 390,922 |
| Events in quadrant D | 10,542,474 | 229,907 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26 | 0 |
| B | 0 | 26 | 0 |
| C | 0 | 26 | 0 |
| D | 0 | 27 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 108 | 0 |
| B | 0 | 108 | 0 |
| C | 0 | 108 | 0 |
| D | 0 | 108 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10776 | 3 |
| B | 0 | 12706 | 2 |
| C | 0 | 14951 | 2 |
| D | 0 | 34969 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5270 | 9 | 0.170778% |
| B | 5270 | 178 | 3.377609% |
| C | 5270 | 281 | 5.332068% |
| D | 5270 | 2943 | 55.844402% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

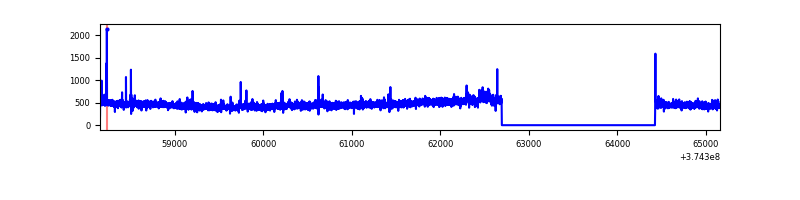

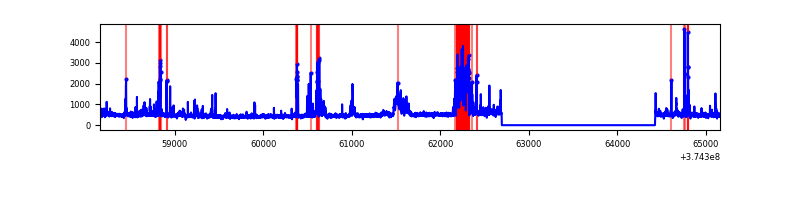

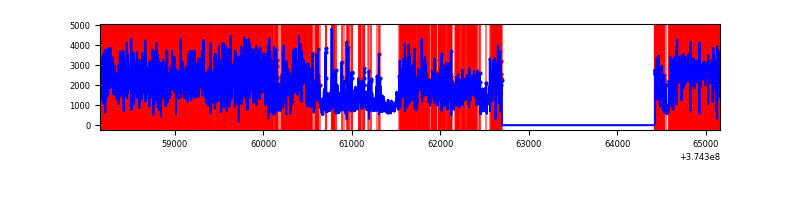

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7002 | 5271 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7002 | 5271 | 107 | 107 | 1.53% | 2.03% |  |
| C | 7002 | 5271 | 226 | 226 | 3.23% | 4.29% |  |
| D | 7002 | 5271 | 2733 | 2733 | 39.03% | 51.85% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 45855 | 369.28 | 610 | 599 | 122.6 |
| A | 13 | 6 | 16220 | 127.46 | 610 | 599 | 122.6 |
| A | 13 | 254 | 9523 | 72.82 | 610 | 599 | 122.6 |
| B | 5 | 172 | 478277 | 4155.87 | 601 | 585 | 114.9 |
| B | 0 | 189 | 103193 | 892.68 | 601 | 585 | 114.9 |
| B | 15 | 85 | 71243 | 614.72 | 601 | 585 | 114.9 |
| C | 8 | 111 | 697068 | 5170.96 | 583 | 588 | 134.7 |
| C | 7 | 221 | 494408 | 3666.33 | 583 | 588 | 134.7 |
| C | 0 | 10 | 199088 | 1473.75 | 583 | 588 | 134.7 |
| D | 7 | 223 | 3660982 | 31196.4 | 447 | 438 | 117.3 |
| D | 12 | 218 | 2799739 | 23856.59 | 447 | 438 | 117.3 |
| D | 8 | 195 | 877270 | 7472.66 | 447 | 438 | 117.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

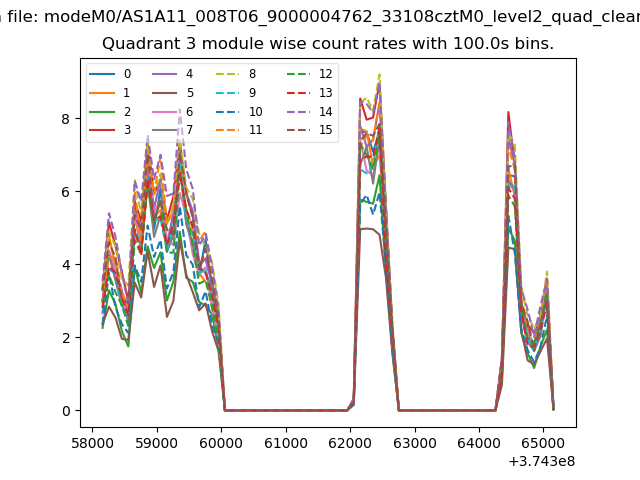

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

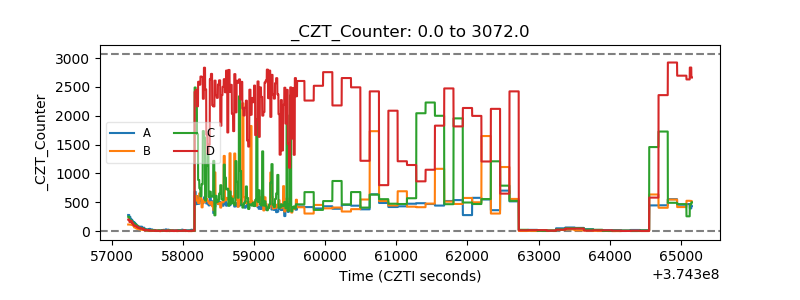

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

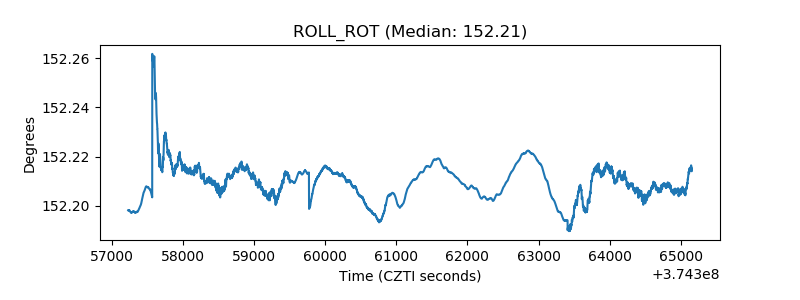

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

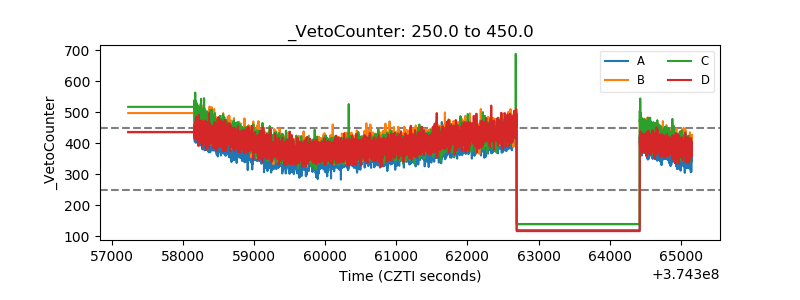

| Veto Counter |  |
