| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_008T06_9000004762_33109cztM0_level2.evt | modeM0/AS1A11_008T06_9000004762_33109cztM0_level2_quad_clean.evt |
| Size (bytes) | 701,611,200 | 65,376,000 |
| Size | 669.1 MB | 62.3 MB |
| Events in quadrant A | 2,581,573 | 454,428 |
| Events in quadrant B | 3,605,414 | 437,775 |
| Events in quadrant C | 3,371,469 | 439,757 |
| Events in quadrant D | 11,305,988 | 249,089 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 24 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 118 | 0 |
| B | 0 | 118 | 0 |
| C | 0 | 118 | 0 |
| D | 0 | 118 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11516 | 3 |
| B | 0 | 14494 | 2 |
| C | 0 | 13746 | 2 |
| D | 0 | 37527 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5669 | 6 | 0.105839% |
| B | 5669 | 310 | 5.468337% |
| C | 5669 | 148 | 2.610690% |
| D | 5669 | 3002 | 52.954666% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7102 | 5670 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7102 | 5670 | 171 | 171 | 2.41% | 3.02% |  |
| C | 7102 | 5670 | 111 | 111 | 1.56% | 1.96% |  |
| D | 7102 | 5670 | 2924 | 2924 | 41.17% | 51.57% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 227 | 15823 | 113.96 | 656 | 642 | 133.2 |
| A | 13 | 6 | 12149 | 86.38 | 656 | 642 | 133.2 |
| A | 13 | 254 | 10150 | 71.37 | 656 | 642 | 133.2 |
| B | 5 | 172 | 676095 | 5520.31 | 642 | 626 | 122.4 |
| B | 0 | 189 | 152868 | 1244.21 | 642 | 626 | 122.4 |
| B | 4 | 67 | 55883 | 451.59 | 642 | 626 | 122.4 |
| C | 7 | 221 | 332493 | 2256.64 | 633 | 639 | 147.1 |
| C | 0 | 10 | 228601 | 1550.17 | 633 | 639 | 147.1 |
| C | 8 | 111 | 187965 | 1273.84 | 633 | 639 | 147.1 |
| D | 7 | 223 | 6208268 | 49318.28 | 483 | 472 | 125.9 |
| D | 8 | 195 | 973359 | 7729.17 | 483 | 472 | 125.9 |
| D | 2 | 249 | 532694 | 4228.27 | 483 | 472 | 125.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

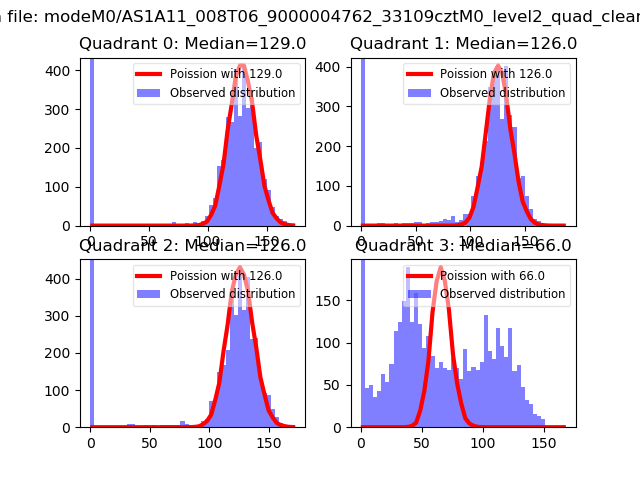

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

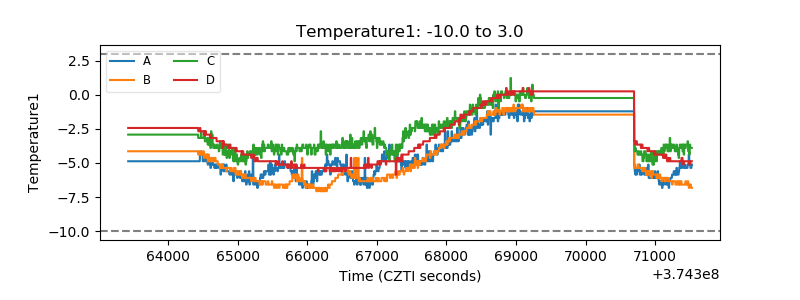

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

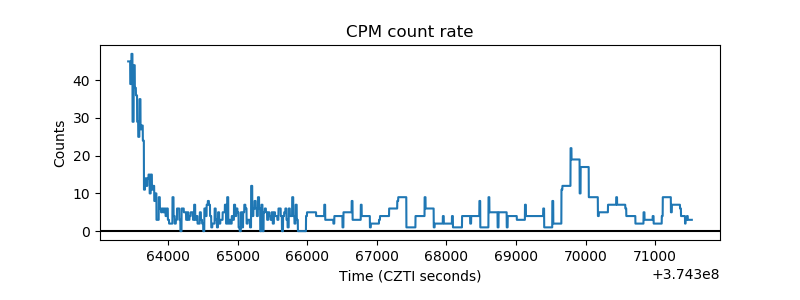

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

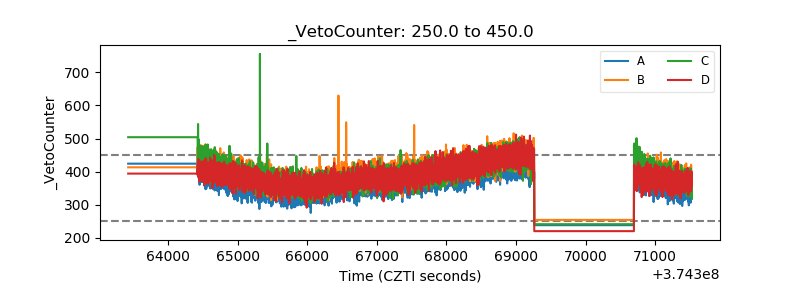

| Veto Counter |  |
