| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_030T01_9000004760_33084cztM0_level2.evt | modeM0/AS1A11_030T01_9000004760_33084cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,188,872,640 | 107,720,640 |
| Size | 1.1 GB | 102.7 MB |
| Events in quadrant A | 4,864,391 | 671,010 |
| Events in quadrant B | 6,735,372 | 662,942 |
| Events in quadrant C | 6,082,044 | 639,618 |
| Events in quadrant D | 17,609,301 | 552,997 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 32 | 0 |
| B | 0 | 32 | 0 |
| C | 0 | 32 | 0 |
| D | 0 | 32 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21277 | 4 |
| B | 0 | 26524 | 3 |
| C | 0 | 24583 | 3 |
| D | 0 | 59684 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 216 | 0 |
| B | 0 | 216 | 0 |
| C | 0 | 216 | 0 |
| D | 0 | 216 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 10611 | 10 | 0.094242% |
| B | 10611 | 677 | 6.380172% |
| C | 10611 | 153 | 1.441900% |
| D | 10611 | 3158 | 29.761568% |

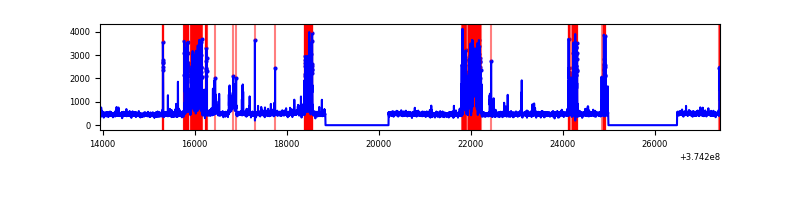

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 13477 | 10613 | 0 | 0 | 0.00% | 0.00% |  |
| B | 13477 | 10613 | 472 | 472 | 3.50% | 4.45% |  |
| C | 13477 | 10613 | 116 | 116 | 0.86% | 1.09% |  |
| D | 13477 | 10613 | 3280 | 3280 | 24.34% | 30.91% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 19749 | 73.57 | 1255 | 1228 | 251.7 |
| A | 3 | 137 | 11940 | 42.55 | 1255 | 1228 | 251.7 |
| A | 13 | 6 | 11136 | 39.36 | 1255 | 1228 | 251.7 |
| B | 5 | 172 | 1640866 | 7032.4 | 1217 | 1184 | 233.2 |
| B | 0 | 190 | 138270 | 587.95 | 1217 | 1184 | 233.2 |
| B | 5 | 200 | 57565 | 241.81 | 1217 | 1184 | 233.2 |
| C | 3 | 233 | 332520 | 1174.57 | 1215 | 1227 | 282.1 |
| C | 0 | 10 | 277398 | 979.14 | 1215 | 1227 | 282.1 |
| C | 1 | 241 | 268197 | 946.51 | 1215 | 1227 | 282.1 |
| D | 7 | 223 | 9765625 | 33247.96 | 1123 | 1099 | 293.7 |
| D | 8 | 195 | 1518459 | 5166.57 | 1123 | 1099 | 293.7 |
| D | 12 | 6 | 903855 | 3073.86 | 1123 | 1099 | 293.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

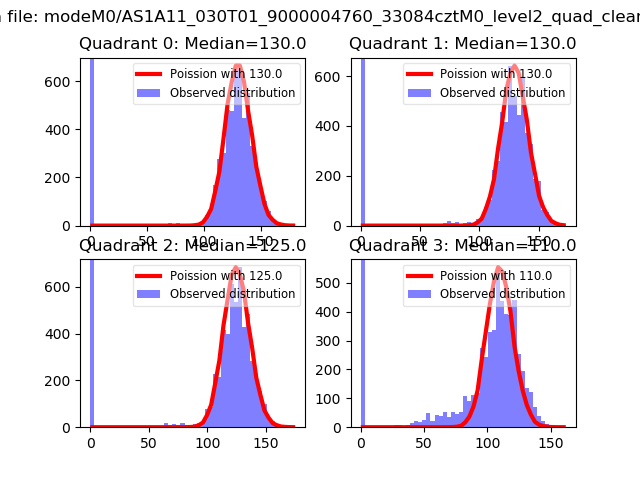

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

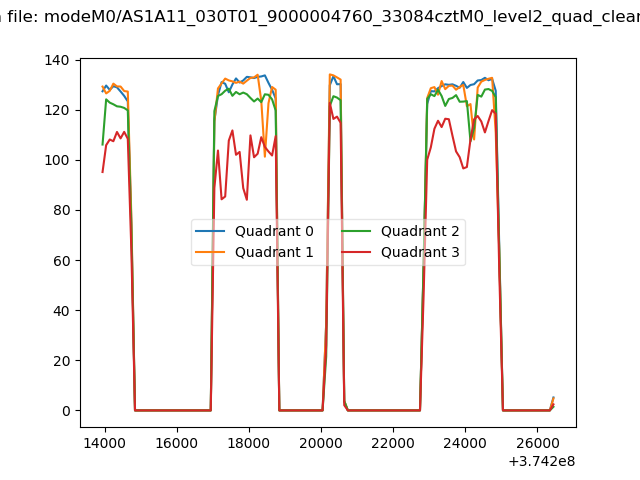

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

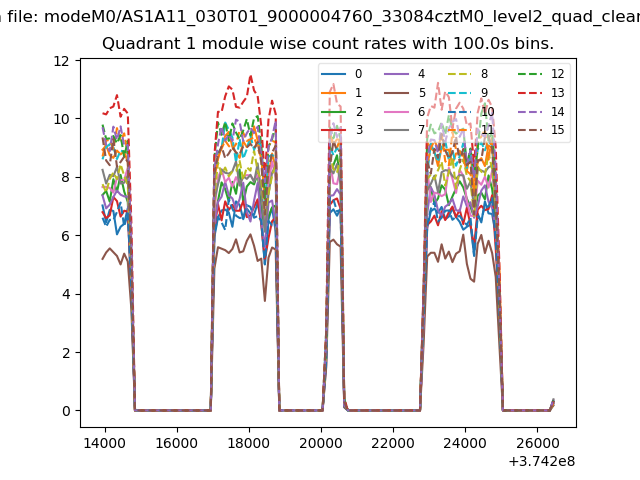

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

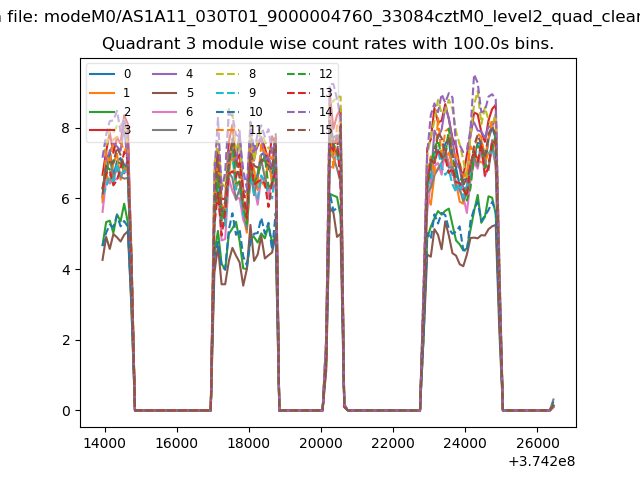

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

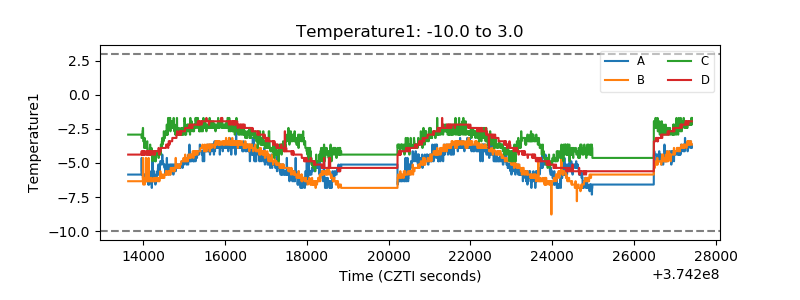

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

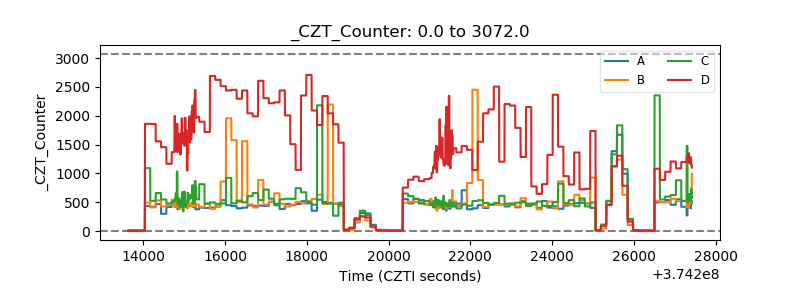

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

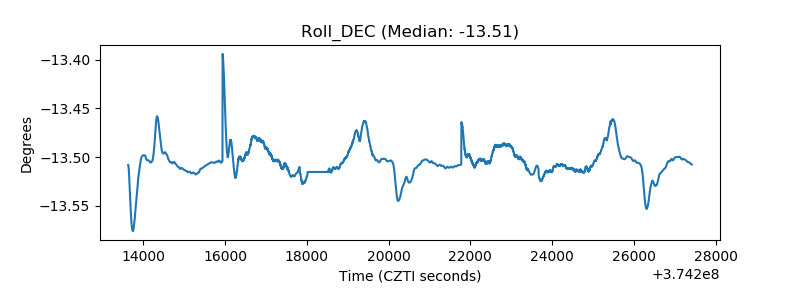

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
