| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_030T01_9000004760_33087cztM0_level2.evt | modeM0/AS1A11_030T01_9000004760_33087cztM0_level2_quad_clean.evt |
| Size (bytes) | 619,159,680 | 57,614,400 |
| Size | 590.5 MB | 54.9 MB |
| Events in quadrant A | 2,599,908 | 354,657 |
| Events in quadrant B | 3,274,364 | 351,018 |
| Events in quadrant C | 5,338,425 | 340,642 |
| Events in quadrant D | 7,170,510 | 316,333 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25 | 0 |
| B | 0 | 25 | 0 |
| C | 0 | 25 | 0 |
| D | 0 | 26 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11131 | 2 |
| B | 0 | 13108 | 1 |
| C | 0 | 19516 | 1 |
| D | 0 | 25152 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 110 | 0 |
| B | 0 | 110 | 0 |
| C | 0 | 110 | 0 |
| D | 0 | 110 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5455 | 8 | 0.146654% |
| B | 5455 | 221 | 4.051329% |
| C | 5455 | 1004 | 18.405133% |
| D | 5455 | 402 | 7.369386% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7188 | 5456 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7188 | 5456 | 143 | 143 | 1.99% | 2.62% |  |
| C | 7188 | 5456 | 782 | 782 | 10.88% | 14.33% |  |
| D | 7188 | 5456 | 424 | 424 | 5.90% | 7.77% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10143 | 70.43 | 670 | 656 | 134.7 |
| A | 3 | 137 | 6193 | 41.11 | 670 | 656 | 134.7 |
| A | 0 | 226 | 5740 | 37.74 | 670 | 656 | 134.7 |
| B | 5 | 172 | 583864 | 4658.06 | 659 | 644 | 125.2 |
| B | 0 | 189 | 28101 | 219.29 | 659 | 644 | 125.2 |
| B | 15 | 85 | 23024 | 178.74 | 659 | 644 | 125.2 |
| C | 8 | 111 | 2061198 | 14829.59 | 600 | 606 | 139.0 |
| C | 1 | 23 | 574173 | 4127.82 | 600 | 606 | 139.0 |
| C | 7 | 221 | 126585 | 906.64 | 600 | 606 | 139.0 |
| D | 7 | 223 | 2243138 | 13625.92 | 630 | 615 | 164.6 |
| D | 8 | 195 | 1451407 | 8815.24 | 630 | 615 | 164.6 |
| D | 2 | 250 | 468794 | 2844.73 | 630 | 615 | 164.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

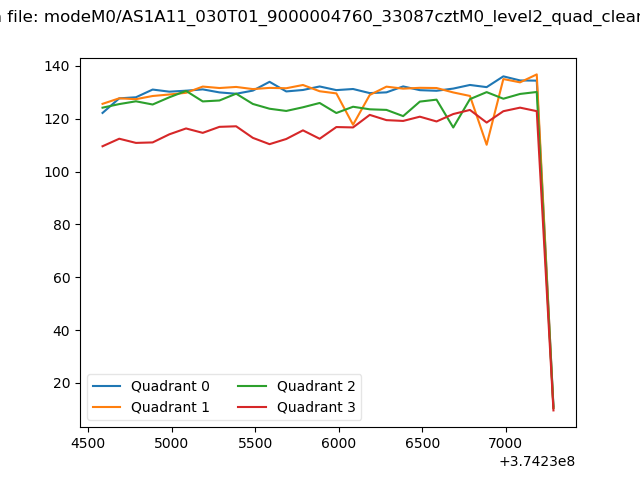

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

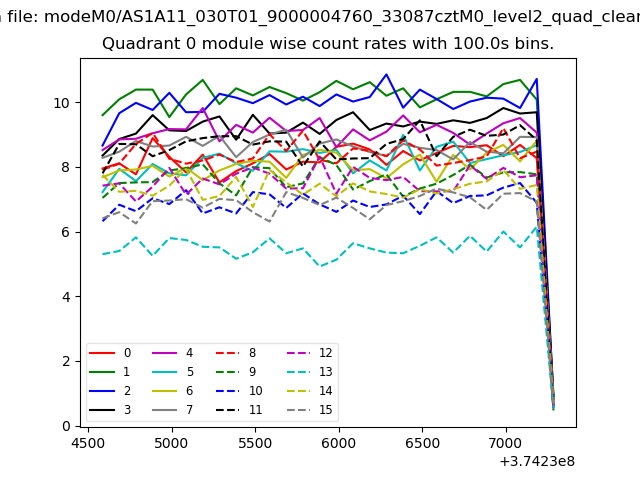

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

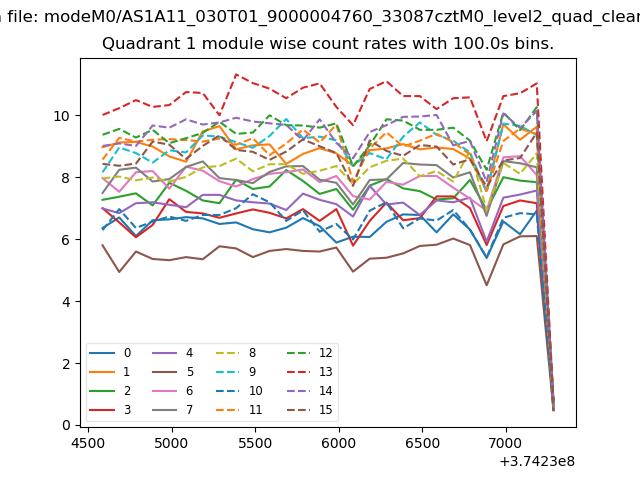

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

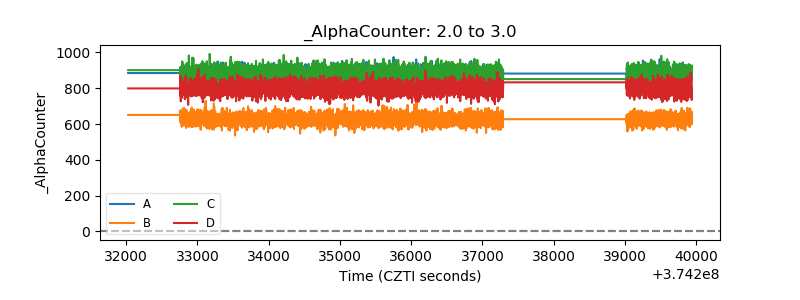

| Alpha Counter |  |

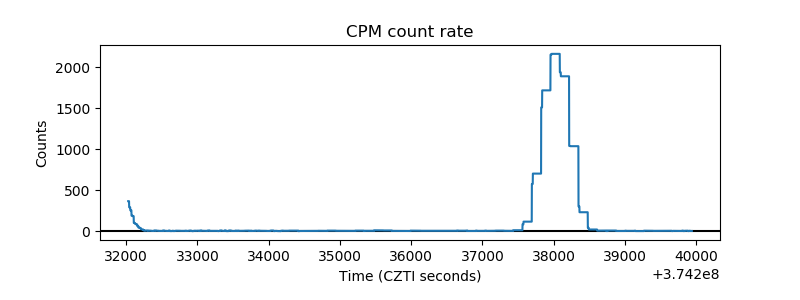

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
