| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_030T01_9000004760_33088cztM0_level2.evt | modeM0/AS1A11_030T01_9000004760_33088cztM0_level2_quad_clean.evt |
| Size (bytes) | 747,486,720 | 64,077,120 |
| Size | 712.9 MB | 61.1 MB |
| Events in quadrant A | 2,691,622 | 430,484 |
| Events in quadrant B | 3,051,290 | 429,032 |
| Events in quadrant C | 5,509,322 | 403,097 |
| Events in quadrant D | 11,019,224 | 296,729 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 37 | 0 |
| B | 0 | 37 | 0 |
| C | 0 | 37 | 0 |
| D | 0 | 37 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11362 | 2 |
| B | 0 | 12413 | 1 |
| C | 0 | 19975 | 1 |
| D | 0 | 36521 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 110 | 0 |
| B | 0 | 110 | 0 |
| C | 0 | 110 | 0 |
| D | 0 | 110 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5434 | 6 | 0.110416% |
| B | 5434 | 95 | 1.748252% |
| C | 5434 | 1054 | 19.396393% |
| D | 5434 | 3240 | 59.624586% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9050 | 5436 | 0 | 0 | 0.00% | 0.00% |  |
| B | 9050 | 5436 | 55 | 55 | 0.61% | 1.01% |  |
| C | 9050 | 5436 | 815 | 815 | 9.01% | 14.99% |  |
| D | 9050 | 5436 | 3180 | 3180 | 35.14% | 58.50% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 9793 | 66.12 | 695 | 684 | 137.8 |
| A | 3 | 137 | 6478 | 42.06 | 695 | 684 | 137.8 |
| A | 13 | 6 | 6098 | 39.3 | 695 | 684 | 137.8 |
| B | 5 | 172 | 284598 | 2187.51 | 690 | 675 | 129.8 |
| B | 12 | 111 | 15241 | 112.22 | 690 | 675 | 129.8 |
| B | 11 | 111 | 13267 | 97.02 | 690 | 675 | 129.8 |
| C | 8 | 111 | 2314068 | 16352.93 | 612 | 619 | 141.5 |
| C | 7 | 221 | 369324 | 2606.24 | 612 | 619 | 141.5 |
| C | 1 | 241 | 207847 | 1464.82 | 612 | 619 | 141.5 |
| D | 7 | 223 | 7676699 | 54693.3 | 538 | 527 | 140.3 |
| D | 8 | 195 | 764213 | 5441.32 | 538 | 527 | 140.3 |
| D | 10 | 203 | 171837 | 1220.6 | 538 | 527 | 140.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

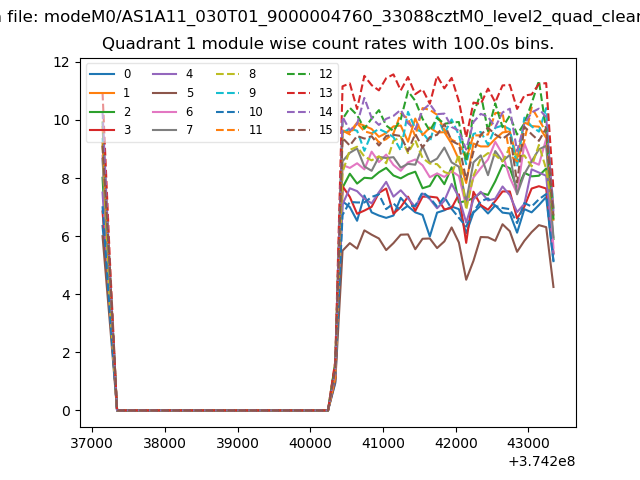

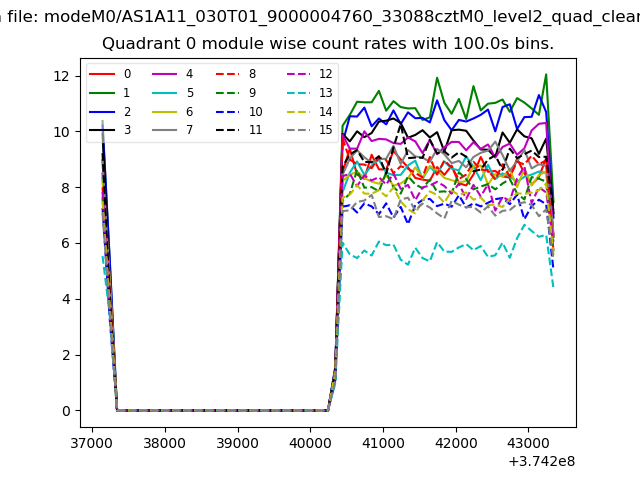

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

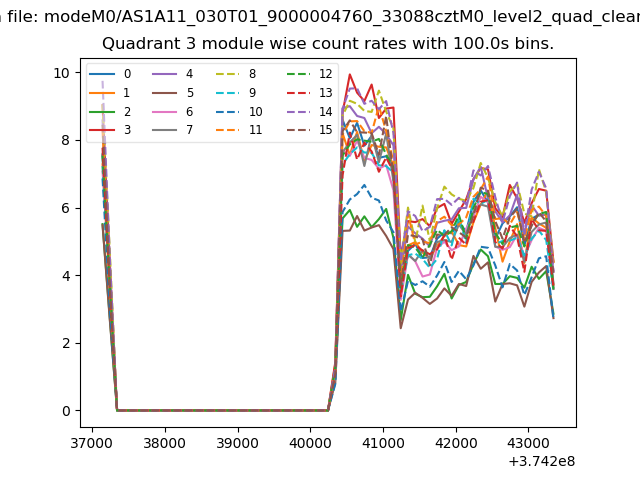

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

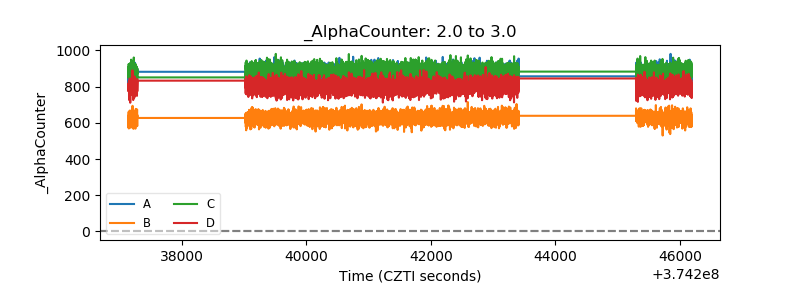

| Alpha Counter |  |

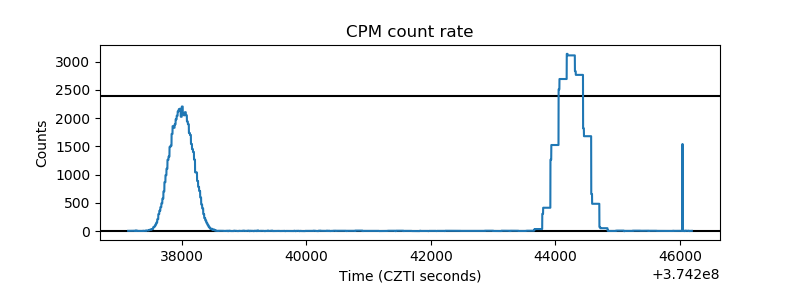

| _CPM_Rate |  |

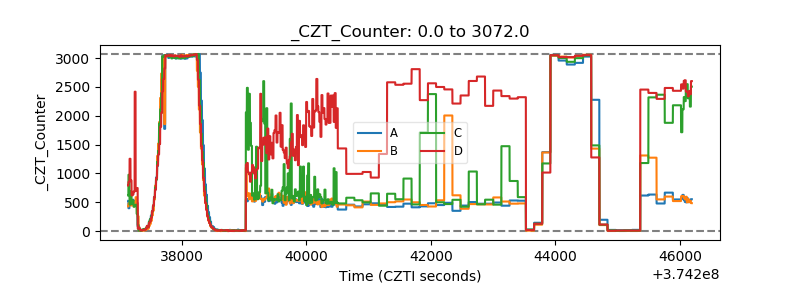

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

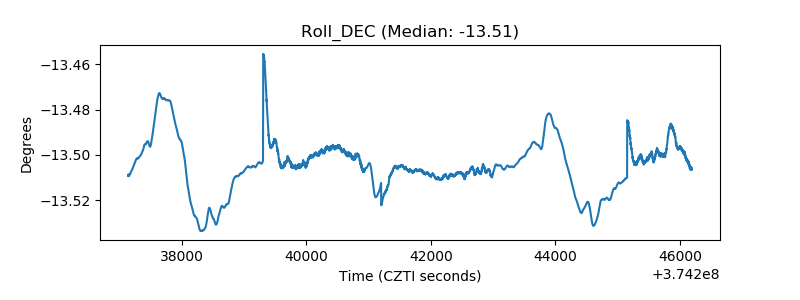

| _Roll_DEC |  |

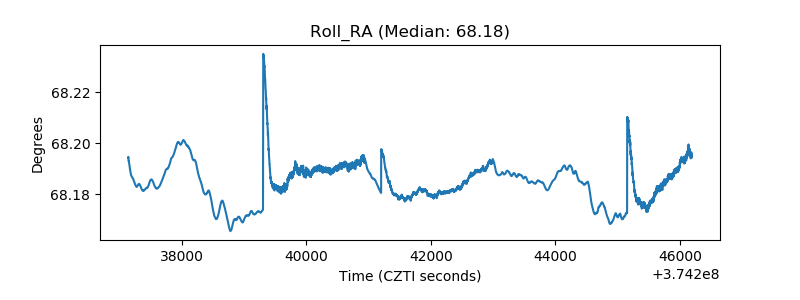

| _Roll_RA |  |
| Veto Counter |  |
