| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_030T01_9000004760_33091cztM0_level2.evt | modeM0/AS1A11_030T01_9000004760_33091cztM0_level2_quad_clean.evt |
| Size (bytes) | 777,144,960 | 90,256,320 |
| Size | 741.1 MB | 86.1 MB |
| Events in quadrant A | 2,586,035 | 692,519 |
| Events in quadrant B | 2,837,734 | 704,183 |
| Events in quadrant C | 4,693,121 | 614,265 |
| Events in quadrant D | 13,069,027 | 357,391 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 42 | 0 |
| B | 0 | 42 | 0 |
| C | 0 | 42 | 0 |
| D | 0 | 42 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10706 | 3 |
| B | 0 | 11493 | 2 |
| C | 0 | 17318 | 2 |
| D | 0 | 42391 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 108 | 0 |
| B | 0 | 108 | 0 |
| C | 0 | 108 | 0 |
| D | 0 | 108 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5173 | 3 | 0.057993% |
| B | 5173 | 29 | 0.560603% |
| C | 5173 | 625 | 12.081964% |
| D | 5173 | 5122 | 99.014112% |

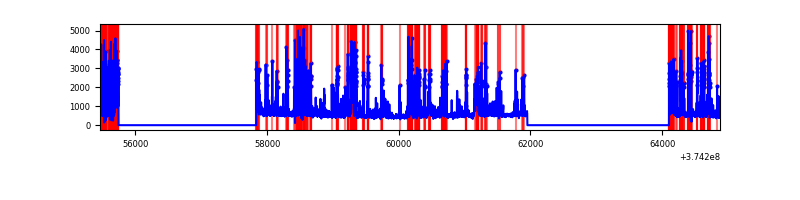

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9418 | 5175 | 0 | 0 | 0.00% | 0.00% |  |
| B | 9418 | 5175 | 16 | 16 | 0.17% | 0.31% |  |
| C | 9418 | 5175 | 528 | 528 | 5.61% | 10.20% |  |
| D | 9418 | 5175 | 4943 | 4943 | 52.48% | 95.52% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 10358 | 72.99 | 665 | 656 | 132.9 |
| A | 13 | 6 | 9236 | 64.55 | 665 | 656 | 132.9 |
| A | 13 | 254 | 8670 | 60.29 | 665 | 656 | 132.9 |
| B | 5 | 172 | 93474 | 738.23 | 666 | 653 | 125.7 |
| B | 5 | 200 | 58940 | 463.57 | 666 | 653 | 125.7 |
| B | 0 | 189 | 27263 | 211.64 | 666 | 653 | 125.7 |
| C | 1 | 23 | 1019736 | 7389.08 | 600 | 607 | 137.9 |
| C | 8 | 111 | 913806 | 6621.04 | 600 | 607 | 137.9 |
| C | 0 | 10 | 168991 | 1220.85 | 600 | 607 | 137.9 |
| D | 7 | 223 | 10334214 | 95857.69 | 411 | 402 | 107.8 |
| D | 8 | 195 | 500637 | 4640.24 | 411 | 402 | 107.8 |
| D | 12 | 218 | 224456 | 2078.35 | 411 | 402 | 107.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

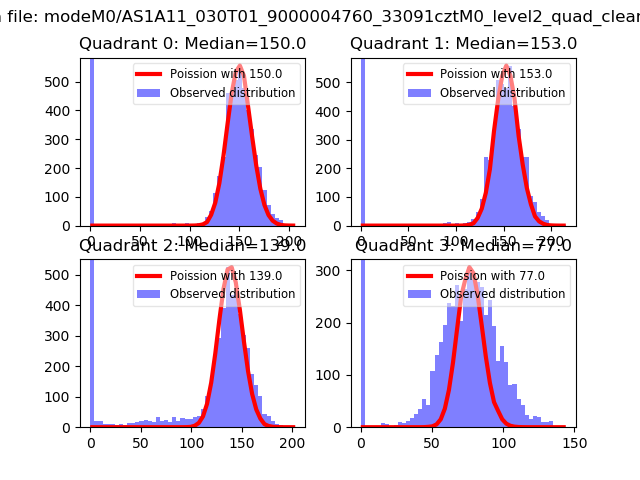

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

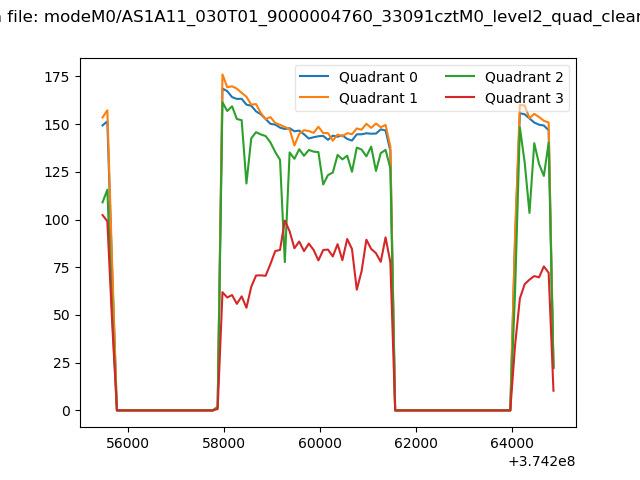

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

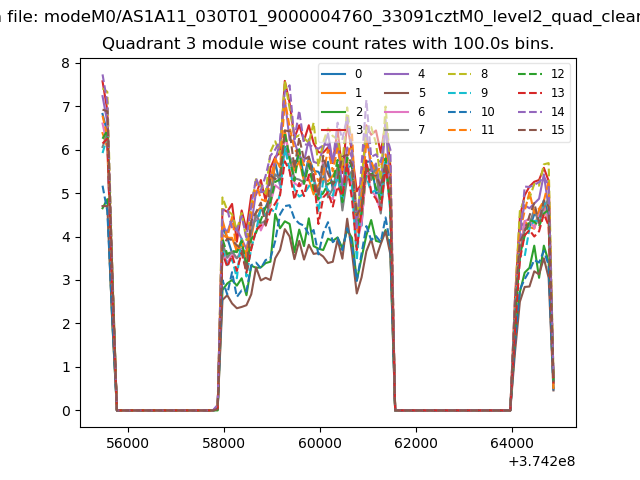

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

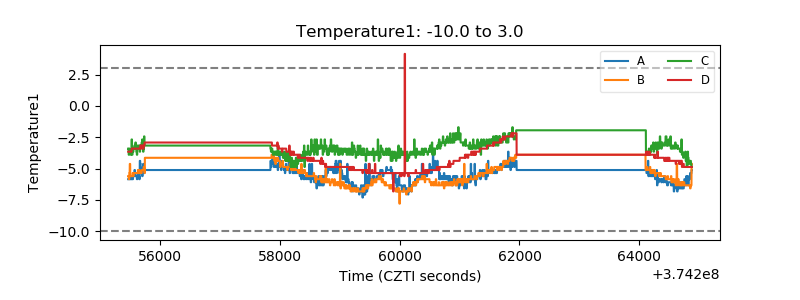

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

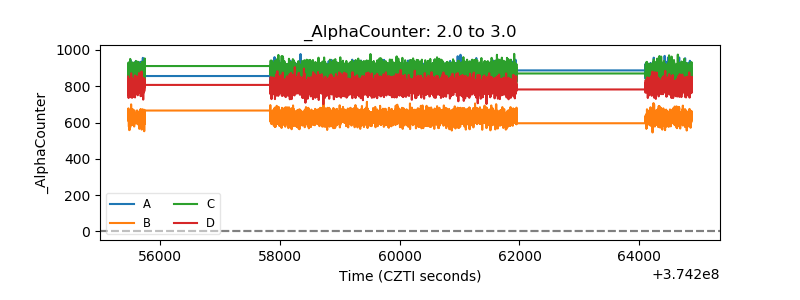

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

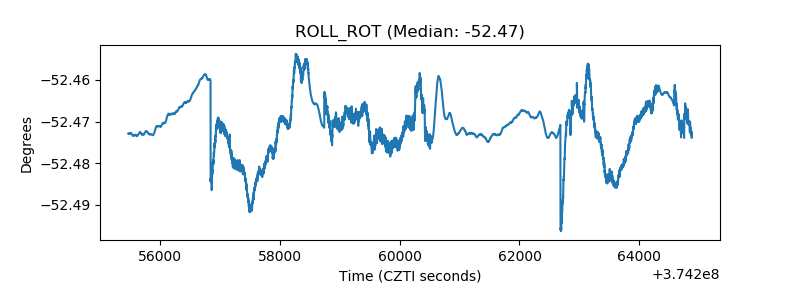

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
