| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_046T06_9000004764_33120cztM0_level2.evt | modeM0/AS1A11_046T06_9000004764_33120cztM0_level2_quad_clean.evt |
| Size (bytes) | 481,279,680 | 87,209,280 |
| Size | 459.0 MB | 83.2 MB |
| Events in quadrant A | 2,550,814 | 593,087 |
| Events in quadrant B | 3,484,447 | 591,212 |
| Events in quadrant C | 2,949,312 | 562,425 |
| Events in quadrant D | 5,235,120 | 526,524 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10707 | 3 |
| B | 0 | 13706 | 2 |
| C | 0 | 12018 | 2 |
| D | 0 | 19212 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 108 | 0 |
| B | 0 | 108 | 0 |
| C | 0 | 108 | 0 |
| D | 0 | 108 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5245 | 4 | 0.076263% |
| B | 5245 | 220 | 4.194471% |
| C | 5245 | 71 | 1.353670% |
| D | 5246 | 567 | 10.808235% |

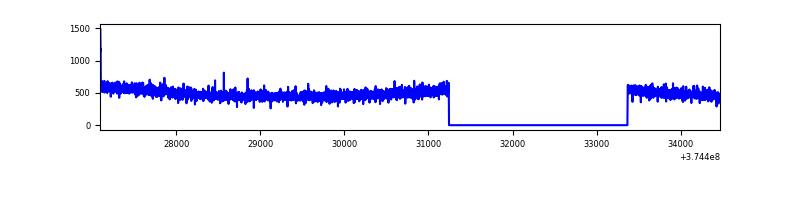

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7368 | 5246 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7368 | 5246 | 148 | 148 | 2.01% | 2.82% |  |
| C | 7368 | 5246 | 58 | 58 | 0.79% | 1.11% |  |
| D | 7369 | 5247 | 504 | 504 | 6.84% | 9.61% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10109 | 72.23 | 657 | 645 | 131.0 |
| A | 13 | 6 | 6823 | 47.15 | 657 | 645 | 131.0 |
| A | 3 | 137 | 5822 | 39.51 | 657 | 645 | 131.0 |
| B | 5 | 172 | 736268 | 5973.23 | 648 | 633 | 123.2 |
| B | 5 | 200 | 55707 | 447.19 | 648 | 633 | 123.2 |
| B | 0 | 189 | 46474 | 372.22 | 648 | 633 | 123.2 |
| C | 0 | 10 | 252801 | 1772.73 | 619 | 626 | 142.3 |
| C | 7 | 221 | 251468 | 1763.36 | 619 | 626 | 142.3 |
| C | 14 | 67 | 8459 | 55.06 | 619 | 626 | 142.3 |
| D | 8 | 195 | 669846 | 4487.65 | 597 | 582 | 149.1 |
| D | 7 | 223 | 655587 | 4392.04 | 597 | 582 | 149.1 |
| D | 2 | 250 | 529647 | 3547.57 | 597 | 582 | 149.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

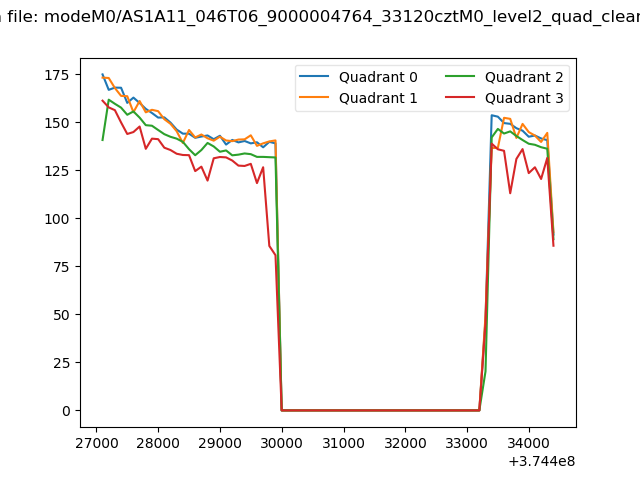

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

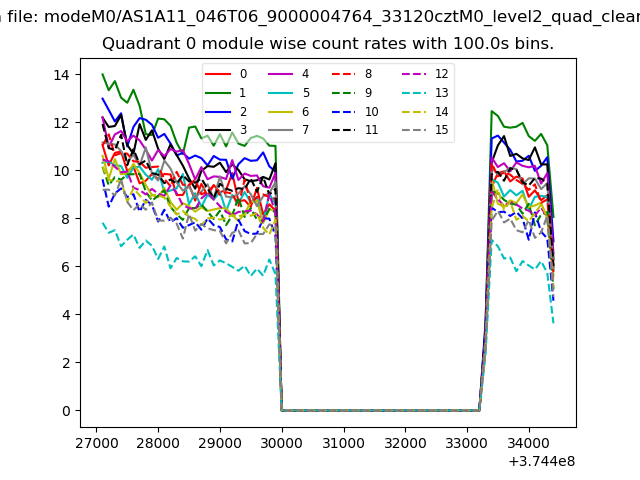

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

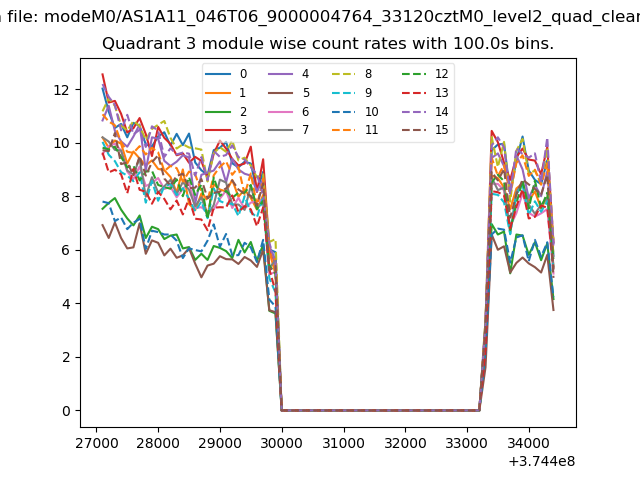

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

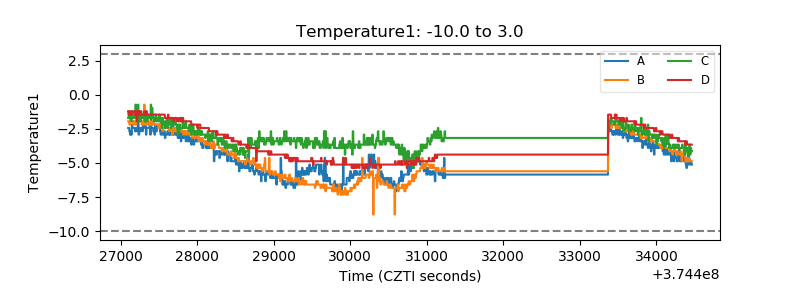

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

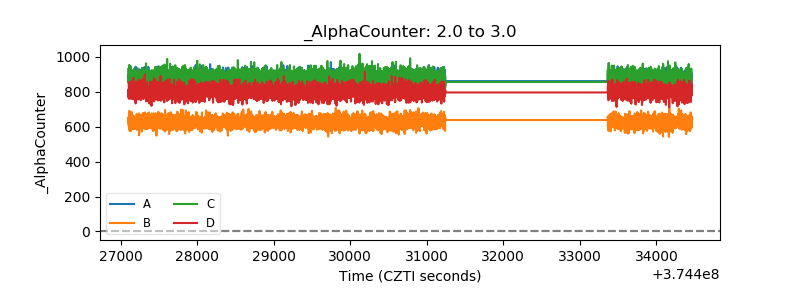

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

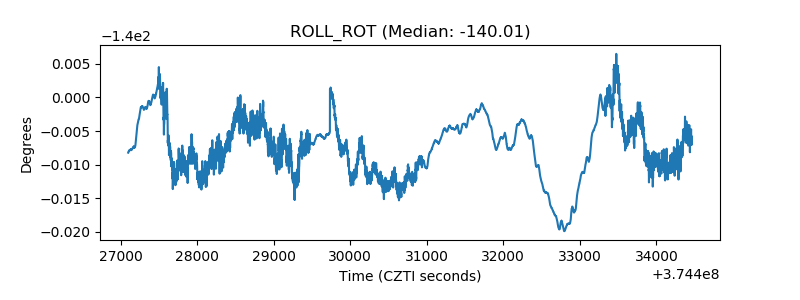

| _ROLL_ROT |  |

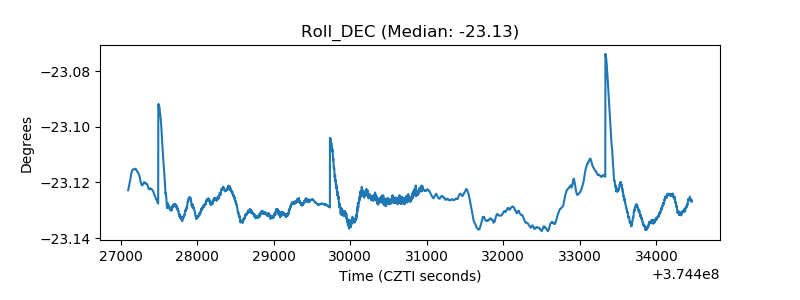

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
