| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_096T01_9000004766_33163cztM0_level2.evt | modeM0/AS1A11_096T01_9000004766_33163cztM0_level2_quad_clean.evt |
| Size (bytes) | 133,364,160 | 18,668,160 |
| Size | 127.2 MB | 17.8 MB |
| Events in quadrant A | 790,225 | 119,016 |
| Events in quadrant B | 1,072,171 | 114,329 |
| Events in quadrant C | 770,531 | 112,837 |
| Events in quadrant D | 1,301,233 | 107,101 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 51 | 19 |
| B | 0 | 51 | 17 |
| C | 0 | 49 | 21 |
| D | 0 | 51 | 19 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5597 | 2441 |
| B | 0 | 8142 | 4024 |
| C | 0 | 5703 | 2500 |
| D | 0 | 9377 | 4422 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 4 |
| B | 0 | 5 | 5 |
| C | 0 | 6 | 6 |
| D | 0 | 7 | 6 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 1546 | 0 | 0.000000% |
| B | 1450 | 72 | 4.965517% |
| C | 1568 | 3 | 0.191327% |
| D | 1431 | 10 | 0.698812% |

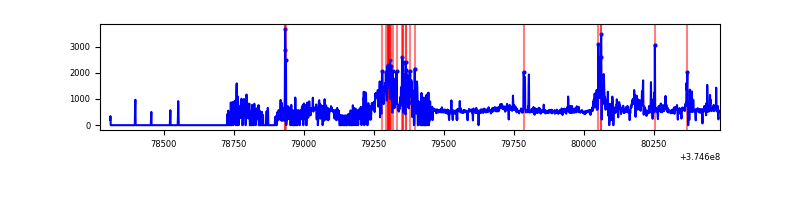

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 2215 | 1688 | 0 | 0 | 0.00% | 0.00% |  |
| B | 2178 | 1619 | 28 | 28 | 1.29% | 1.73% |  |
| C | 2192 | 1720 | 2 | 2 | 0.09% | 0.12% |  |
| D | 2108 | 1587 | 8 | 8 | 0.38% | 0.50% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 6 | 4276 | 96.79 | 202 | 199 | 42.1 |
| A | 13 | 254 | 3076 | 68.3 | 202 | 199 | 42.1 |
| A | 0 | 31 | 2711 | 59.64 | 202 | 199 | 42.1 |
| B | 0 | 219 | 157381 | 4376.14 | 183 | 180 | 35.9 |
| B | 5 | 172 | 113989 | 3168.2 | 183 | 180 | 35.9 |
| B | 15 | 85 | 28124 | 777.9 | 183 | 180 | 35.9 |
| C | 0 | 207 | 6846 | 146.95 | 191 | 193 | 45.3 |
| C | 1 | 241 | 3577 | 74.75 | 191 | 193 | 45.3 |
| C | 1 | 23 | 3499 | 73.02 | 191 | 193 | 45.3 |
| D | 8 | 195 | 435109 | 9820.77 | 174 | 170 | 44.3 |
| D | 10 | 203 | 86762 | 1955.22 | 174 | 170 | 44.3 |
| D | 1 | 47 | 23953 | 537.01 | 174 | 170 | 44.3 |

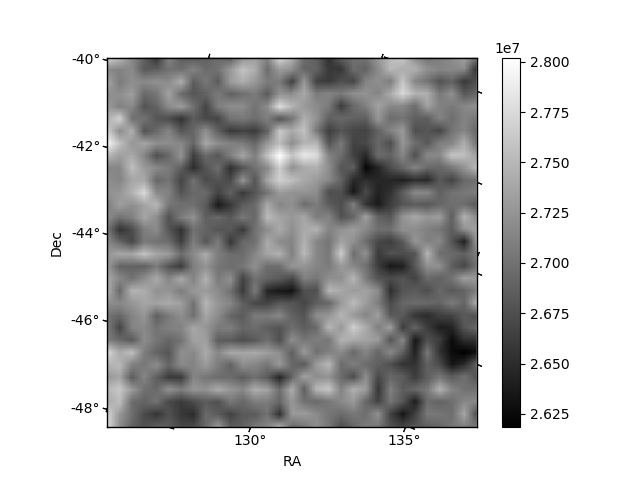

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

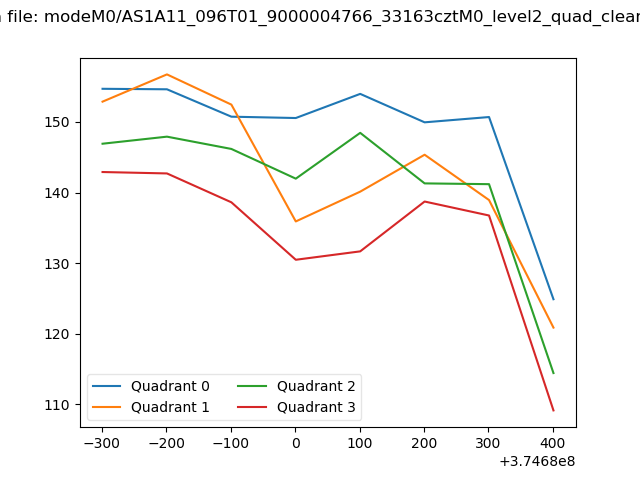

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

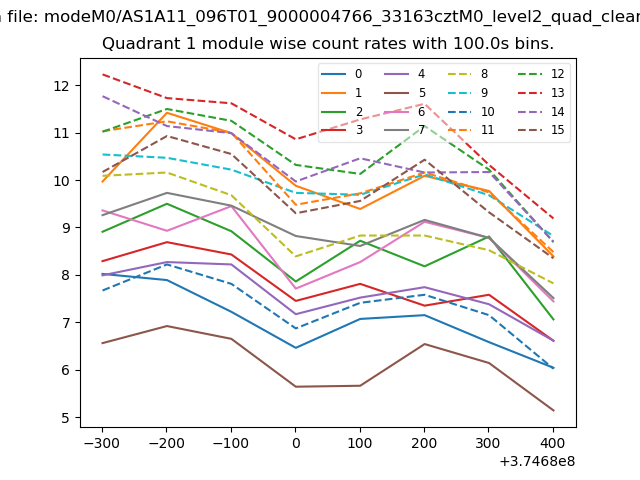

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

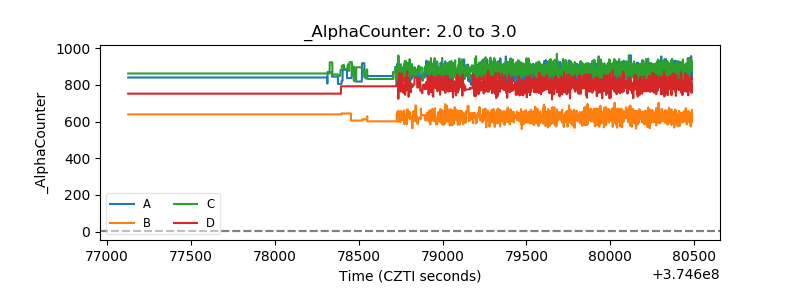

| Alpha Counter |  |

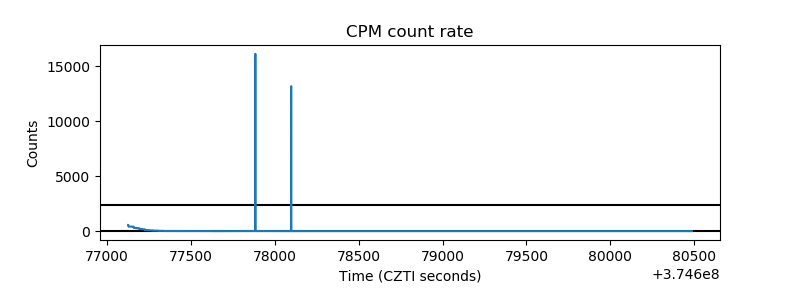

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

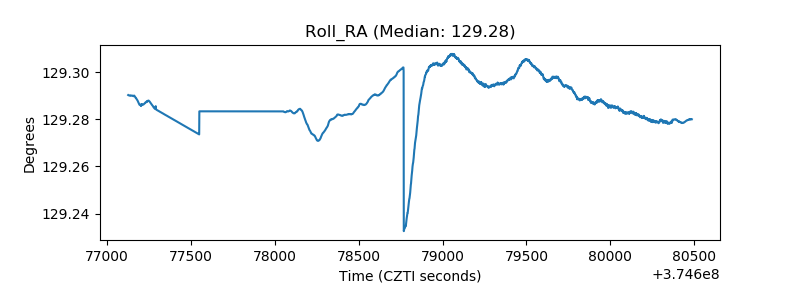

| _Roll_RA |  |

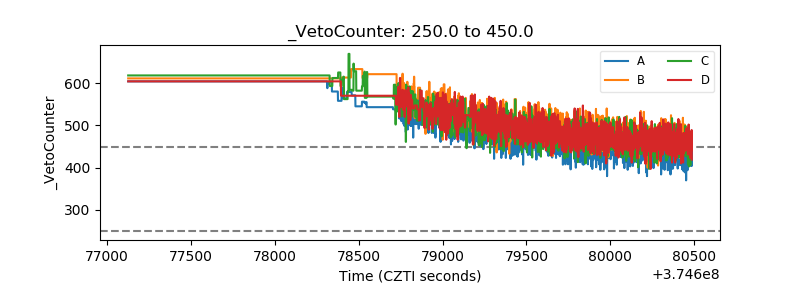

| Veto Counter |  |
