| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_080T02_9000004768_33185cztM0_level2.evt | modeM0/AS1A11_080T02_9000004768_33185cztM0_level2_quad_clean.evt |
| Size (bytes) | 977,158,080 | 148,368,960 |
| Size | 931.9 MB | 141.5 MB |
| Events in quadrant A | 4,861,577 | 960,337 |
| Events in quadrant B | 7,405,403 | 946,407 |
| Events in quadrant C | 5,235,741 | 950,806 |
| Events in quadrant D | 11,357,848 | 884,093 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 31 | 0 |
| B | 0 | 31 | 0 |
| C | 0 | 31 | 0 |
| D | 0 | 32 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 220 | 0 |
| B | 0 | 220 | 0 |
| C | 0 | 220 | 0 |
| D | 0 | 220 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21911 | 4 |
| B | 0 | 29481 | 3 |
| C | 0 | 23013 | 3 |
| D | 0 | 41529 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 10862 | 12 | 0.110477% |
| B | 10862 | 767 | 7.061315% |
| C | 10862 | 78 | 0.718100% |
| D | 10862 | 820 | 7.549254% |

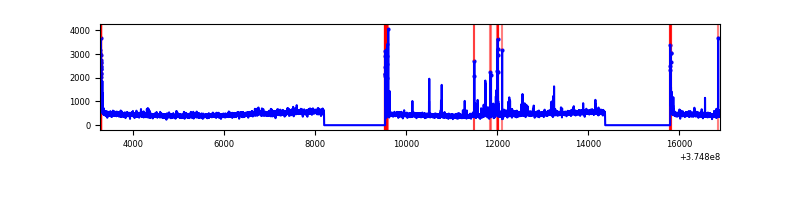

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 13636 | 10864 | 0 | 0 | 0.00% | 0.00% |  |
| B | 13636 | 10864 | 455 | 455 | 3.34% | 4.19% |  |
| C | 13636 | 10864 | 52 | 52 | 0.38% | 0.48% |  |
| D | 13636 | 10864 | 554 | 554 | 4.06% | 5.10% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 19292 | 72.68 | 1251 | 1224 | 248.6 |
| A | 13 | 6 | 17853 | 66.89 | 1251 | 1224 | 248.6 |
| A | 3 | 137 | 11892 | 42.91 | 1251 | 1224 | 248.6 |
| B | 5 | 172 | 2032158 | 8813.41 | 1206 | 1177 | 230.4 |
| B | 0 | 219 | 381484 | 1650.33 | 1206 | 1177 | 230.4 |
| B | 0 | 230 | 41229 | 173.8 | 1206 | 1177 | 230.4 |
| C | 0 | 10 | 218452 | 782.35 | 1205 | 1215 | 277.7 |
| C | 9 | 187 | 165839 | 592.87 | 1205 | 1215 | 277.7 |
| C | 14 | 67 | 70821 | 250.68 | 1205 | 1215 | 277.7 |
| D | 8 | 195 | 3131536 | 10072.65 | 1160 | 1134 | 310.8 |
| D | 12 | 218 | 938270 | 3015.41 | 1160 | 1134 | 310.8 |
| D | 2 | 250 | 926418 | 2977.27 | 1160 | 1134 | 310.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

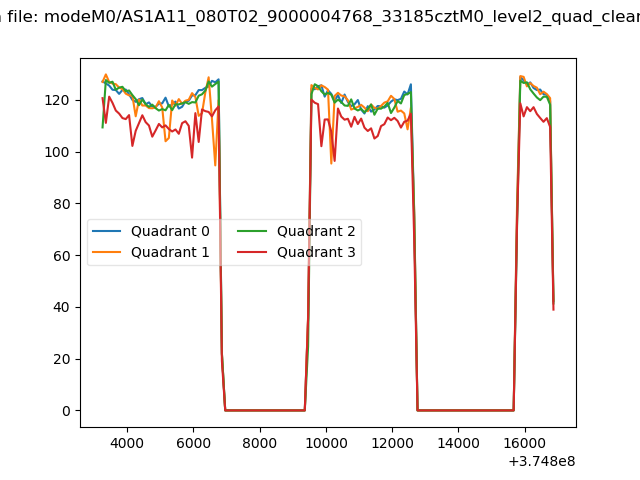

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

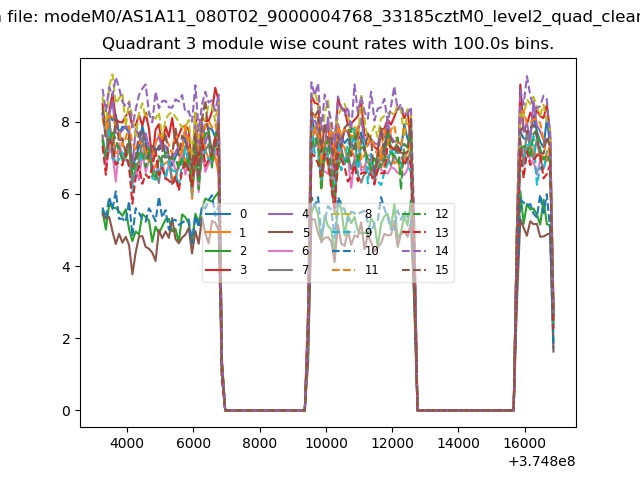

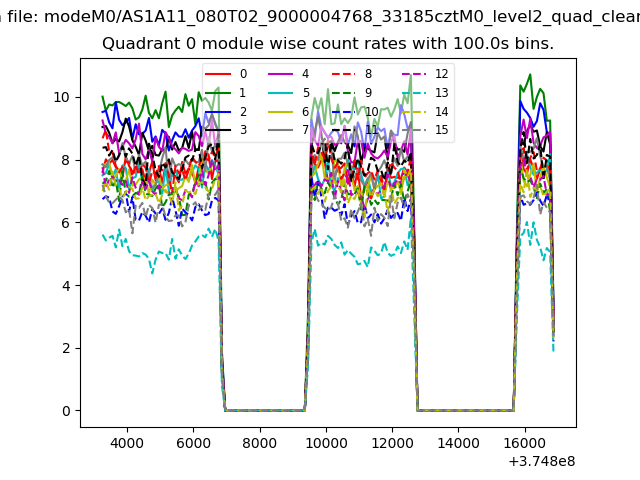

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

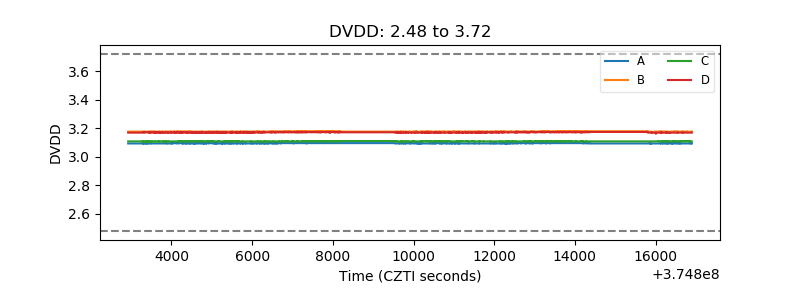

| D_VDD |  |

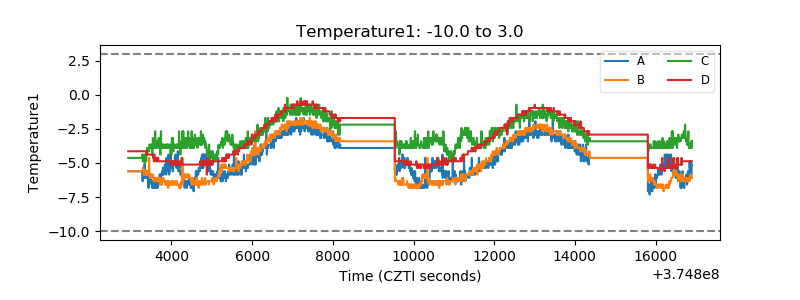

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

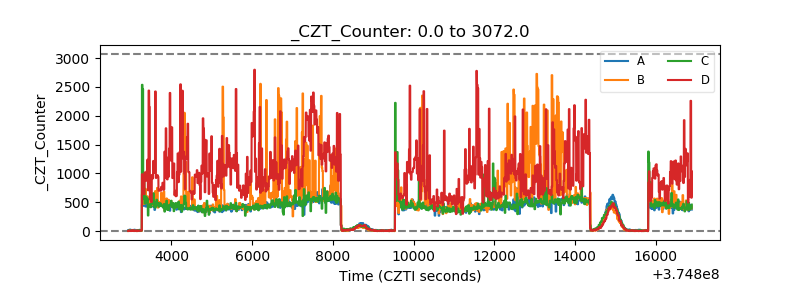

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

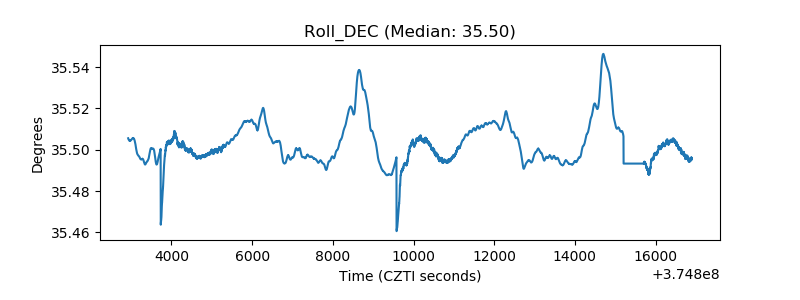

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
