| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_080T02_9000004768_33190cztM0_level2.evt | modeM0/AS1A11_080T02_9000004768_33190cztM0_level2_quad_clean.evt |
| Size (bytes) | 516,792,960 | 72,276,480 |
| Size | 492.9 MB | 68.9 MB |
| Events in quadrant A | 2,574,096 | 471,446 |
| Events in quadrant B | 3,722,550 | 467,274 |
| Events in quadrant C | 2,948,005 | 461,496 |
| Events in quadrant D | 6,058,188 | 427,374 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 106 | 0 |
| B | 0 | 106 | 0 |
| C | 0 | 106 | 0 |
| D | 0 | 106 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10550 | 3 |
| B | 0 | 14199 | 2 |
| C | 0 | 11751 | 2 |
| D | 0 | 21709 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5146 | 5 | 0.097163% |
| B | 5146 | 265 | 5.149631% |
| C | 5146 | 106 | 2.059852% |
| D | 5147 | 283 | 5.498349% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7088 | 5147 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7088 | 5147 | 173 | 173 | 2.44% | 3.36% |  |
| C | 7088 | 5147 | 80 | 80 | 1.13% | 1.55% |  |
| D | 7089 | 5148 | 227 | 227 | 3.20% | 4.41% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 6 | 12797 | 93.21 | 662 | 650 | 130.3 |
| A | 13 | 254 | 8807 | 62.59 | 662 | 650 | 130.3 |
| A | 3 | 137 | 5682 | 38.61 | 662 | 650 | 130.3 |
| B | 5 | 172 | 739971 | 6096.27 | 642 | 626 | 121.3 |
| B | 0 | 219 | 284996 | 2344.78 | 642 | 626 | 121.3 |
| B | 0 | 155 | 51650 | 420.72 | 642 | 626 | 121.3 |
| C | 0 | 10 | 280306 | 1918.9 | 636 | 642 | 145.7 |
| C | 3 | 233 | 94833 | 646.29 | 636 | 642 | 145.7 |
| C | 1 | 241 | 38144 | 257.32 | 636 | 642 | 145.7 |
| D | 8 | 195 | 2251199 | 13396.61 | 630 | 616 | 168.0 |
| D | 12 | 33 | 591639 | 3518.07 | 630 | 616 | 168.0 |
| D | 2 | 250 | 196281 | 1164.7 | 630 | 616 | 168.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

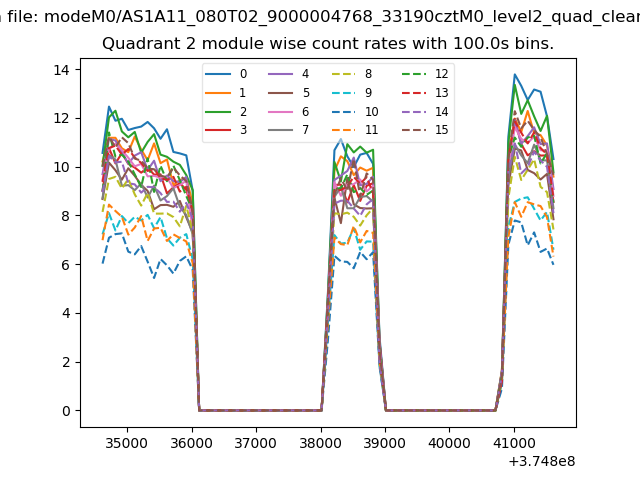

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

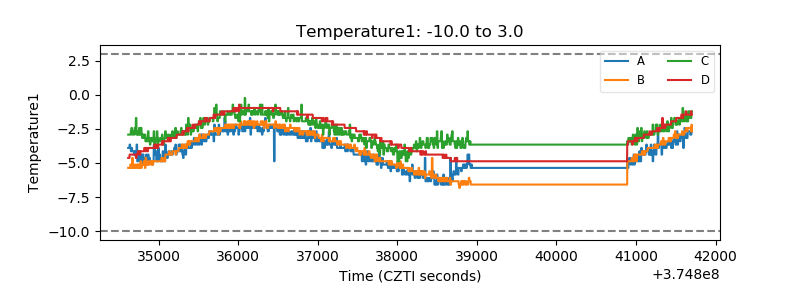

| Temperature 1 |  |

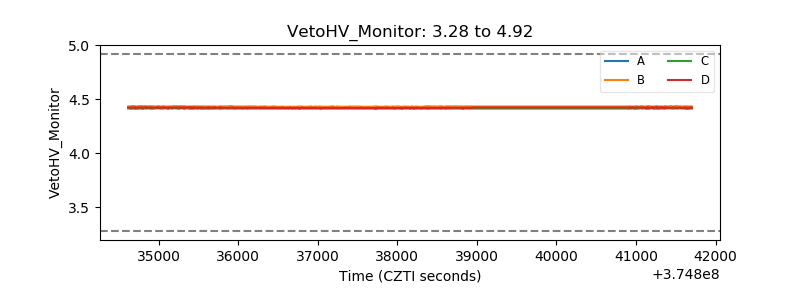

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

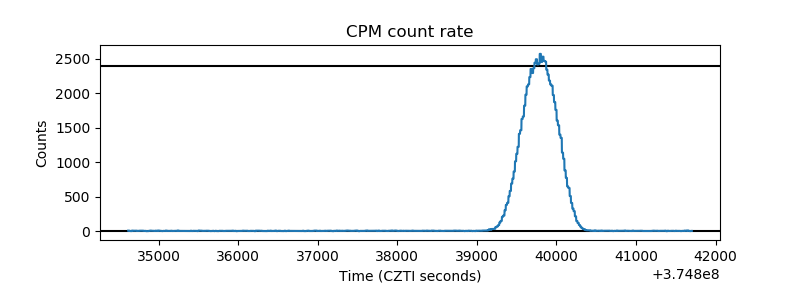

| _CPM_Rate |  |

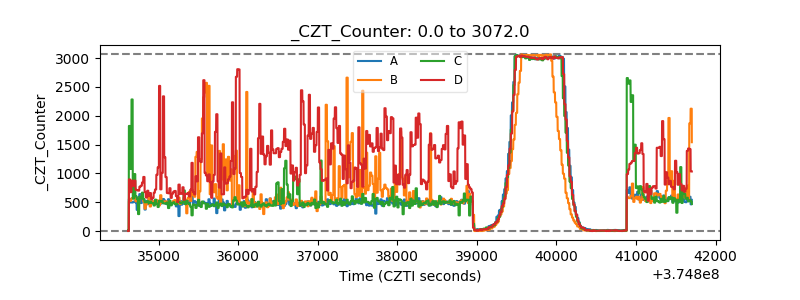

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

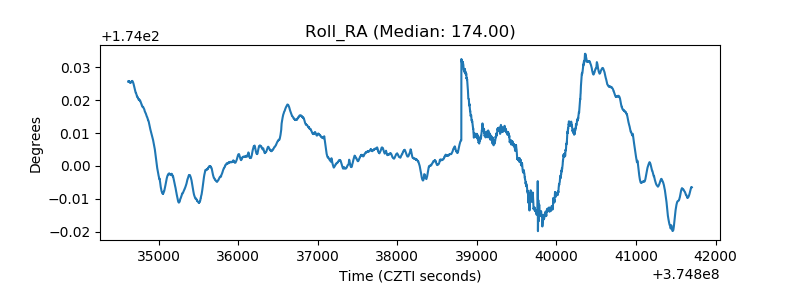

| _Roll_RA |  |
| Veto Counter |  |
