| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_067T01_9000004770_33206cztM0_level2.evt | modeM0/AS1A10_067T01_9000004770_33206cztM0_level2_quad_clean.evt |
| Size (bytes) | 541,373,760 | 51,036,480 |
| Size | 516.3 MB | 48.7 MB |
| Events in quadrant A | 2,861,487 | 305,379 |
| Events in quadrant B | 3,846,120 | 295,968 |
| Events in quadrant C | 3,209,424 | 293,810 |
| Events in quadrant D | 6,120,789 | 279,065 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27 | 0 |
| B | 0 | 27 | 0 |
| C | 0 | 27 | 0 |
| D | 0 | 28 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11545 | 3 |
| B | 0 | 14994 | 2 |
| C | 0 | 12747 | 2 |
| D | 0 | 21939 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 108 | 0 |
| B | 0 | 108 | 0 |
| C | 0 | 108 | 0 |
| D | 0 | 108 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5293 | 6 | 0.113357% |
| B | 5293 | 223 | 4.213112% |
| C | 5293 | 79 | 1.492537% |
| D | 5293 | 332 | 6.272435% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7387 | 5294 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7387 | 5294 | 144 | 144 | 1.95% | 2.72% |  |
| C | 7387 | 5294 | 62 | 62 | 0.84% | 1.17% |  |
| D | 7387 | 5294 | 250 | 250 | 3.38% | 4.72% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 9569 | 61.13 | 734 | 724 | 144.7 |
| A | 13 | 254 | 8829 | 56.01 | 734 | 724 | 144.7 |
| A | 9 | 191 | 6545 | 40.23 | 734 | 724 | 144.7 |
| B | 5 | 172 | 749687 | 5712.92 | 709 | 693 | 131.1 |
| B | 0 | 197 | 107198 | 812.36 | 709 | 693 | 131.1 |
| B | 0 | 190 | 51989 | 391.26 | 709 | 693 | 131.1 |
| C | 0 | 10 | 220798 | 1368.97 | 707 | 714 | 160.8 |
| C | 14 | 67 | 123582 | 764.27 | 707 | 714 | 160.8 |
| C | 1 | 23 | 45892 | 281.02 | 707 | 714 | 160.8 |
| D | 8 | 195 | 1917031 | 11134.06 | 707 | 689 | 172.1 |
| D | 2 | 250 | 464386 | 2694.11 | 707 | 689 | 172.1 |
| D | 1 | 52 | 423121 | 2454.36 | 707 | 689 | 172.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

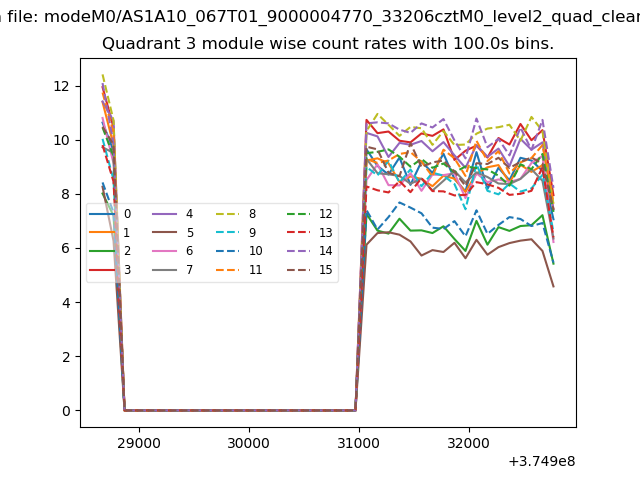

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
