| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_067T01_9000004770_33211cztM0_level2.evt | modeM0/AS1A10_067T01_9000004770_33211cztM0_level2_quad_clean.evt |
| Size (bytes) | 529,534,080 | 86,777,280 |
| Size | 505.0 MB | 82.8 MB |
| Events in quadrant A | 2,662,649 | 573,156 |
| Events in quadrant B | 4,187,258 | 562,005 |
| Events in quadrant C | 2,812,620 | 564,009 |
| Events in quadrant D | 5,982,046 | 523,714 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 16 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11686 | 3 |
| B | 0 | 16323 | 2 |
| C | 0 | 12264 | 2 |
| D | 0 | 21912 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5787 | 5 | 0.086401% |
| B | 5787 | 370 | 6.393641% |
| C | 5787 | 57 | 0.984966% |
| D | 5787 | 313 | 5.408675% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7129 | 5788 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7129 | 5788 | 211 | 211 | 2.96% | 3.65% |  |
| C | 7129 | 5788 | 49 | 49 | 0.69% | 0.85% |  |
| D | 7129 | 5788 | 293 | 293 | 4.11% | 5.06% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 6 | 10188 | 69.35 | 683 | 669 | 137.3 |
| A | 13 | 254 | 9263 | 62.61 | 683 | 669 | 137.3 |
| A | 3 | 137 | 6575 | 43.03 | 683 | 669 | 137.3 |
| B | 5 | 172 | 831693 | 6513.67 | 658 | 641 | 127.6 |
| B | 0 | 219 | 458146 | 3585.86 | 658 | 641 | 127.6 |
| B | 4 | 170 | 89252 | 694.52 | 658 | 641 | 127.6 |
| C | 0 | 10 | 178824 | 1164.68 | 658 | 664 | 153.0 |
| C | 10 | 49 | 17911 | 112.75 | 658 | 664 | 153.0 |
| C | 3 | 233 | 15518 | 97.1 | 658 | 664 | 153.0 |
| D | 8 | 195 | 1967442 | 11065.76 | 646 | 634 | 177.7 |
| D | 2 | 250 | 701778 | 3944.81 | 646 | 634 | 177.7 |
| D | 13 | 249 | 191121 | 1071.73 | 646 | 634 | 177.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

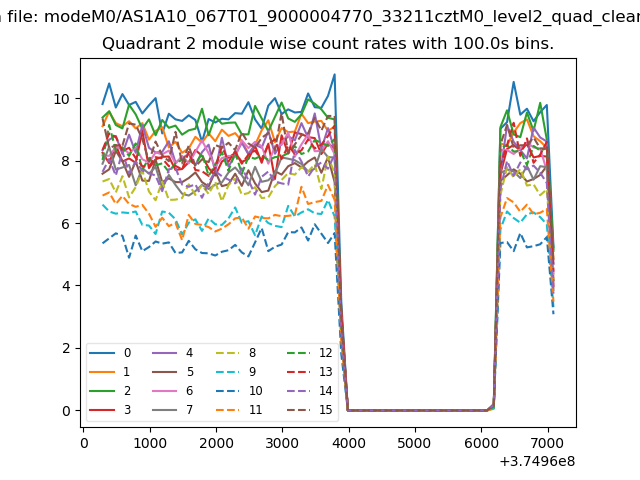

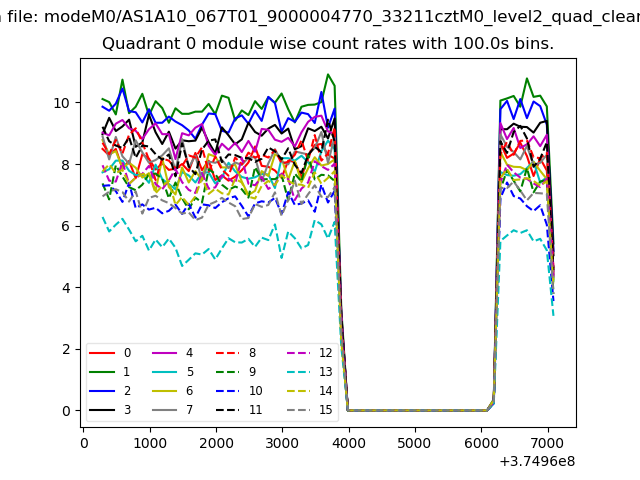

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

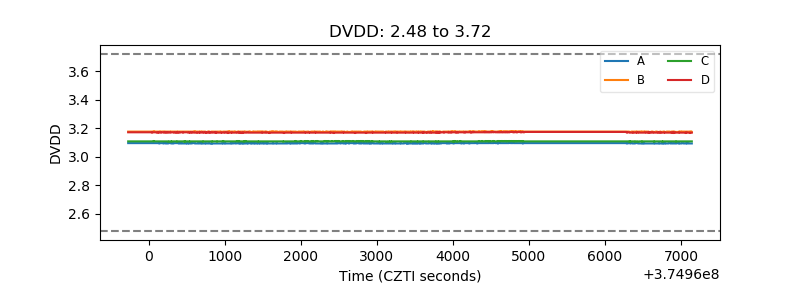

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

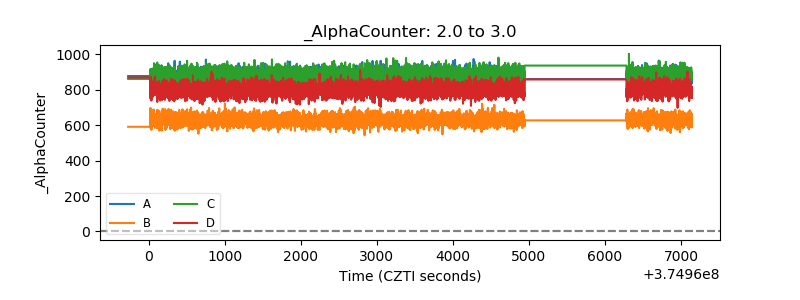

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

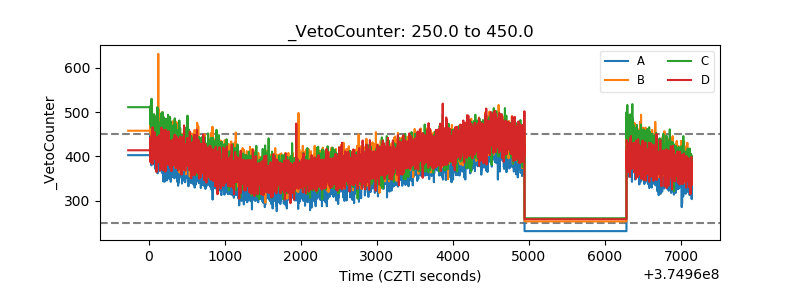

| Veto Counter |  |
