| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_066T01_9000004772_33212cztM0_level2.evt | modeM0/AS1T04_066T01_9000004772_33212cztM0_level2_quad_clean.evt |
| Size (bytes) | 242,052,480 | 44,835,840 |
| Size | 230.8 MB | 42.8 MB |
| Events in quadrant A | 1,390,686 | 304,075 |
| Events in quadrant B | 2,285,219 | 284,338 |
| Events in quadrant C | 1,341,550 | 302,296 |
| Events in quadrant D | 2,139,641 | 284,744 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5882 | 2 |
| B | 0 | 8538 | 1 |
| C | 0 | 5539 | 1 |
| D | 0 | 8204 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 54 | 0 |
| B | 0 | 54 | 0 |
| C | 0 | 54 | 0 |
| D | 0 | 54 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2530 | 10 | 0.395257% |
| B | 2530 | 305 | 12.055336% |
| C | 2530 | 44 | 1.739130% |
| D | 2530 | 97 | 3.833992% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

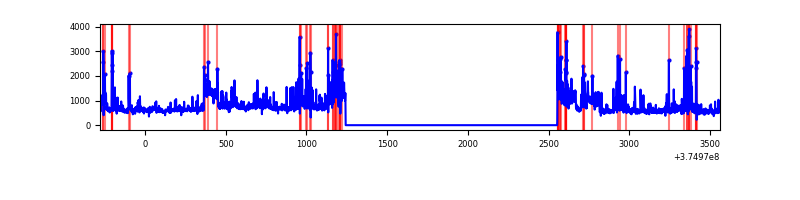

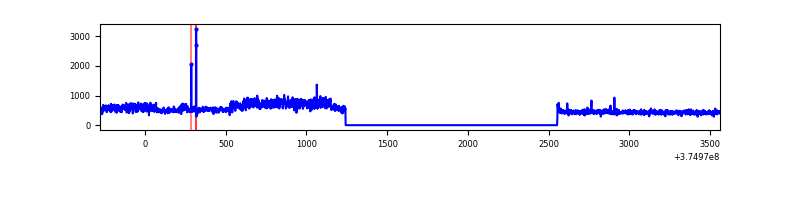

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3842 | 2531 | 3 | 3 | 0.08% | 0.12% |  |
| B | 3842 | 2531 | 172 | 172 | 4.48% | 6.80% |  |
| C | 3842 | 2531 | 33 | 33 | 0.86% | 1.30% |  |
| D | 3842 | 2531 | 66 | 66 | 1.72% | 2.61% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 47 | 145911 | 2238.3 | 315 | 308 | 65.1 |
| A | 13 | 210 | 9632 | 143.33 | 315 | 308 | 65.1 |
| A | 15 | 174 | 6069 | 88.56 | 315 | 308 | 65.1 |
| B | 5 | 172 | 626655 | 10710.74 | 294 | 287 | 58.5 |
| B | 0 | 219 | 158074 | 2698.12 | 294 | 287 | 58.5 |
| B | 0 | 189 | 84340 | 1437.29 | 294 | 287 | 58.5 |
| C | 0 | 10 | 128098 | 1779.24 | 303 | 304 | 71.8 |
| C | 12 | 250 | 8395 | 112.65 | 303 | 304 | 71.8 |
| C | 12 | 251 | 7840 | 104.92 | 303 | 304 | 71.8 |
| D | 8 | 195 | 429967 | 5448.5 | 302 | 295 | 78.9 |
| D | 2 | 250 | 131743 | 1666.84 | 302 | 295 | 78.9 |
| D | 2 | 249 | 89110 | 1126.23 | 302 | 295 | 78.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

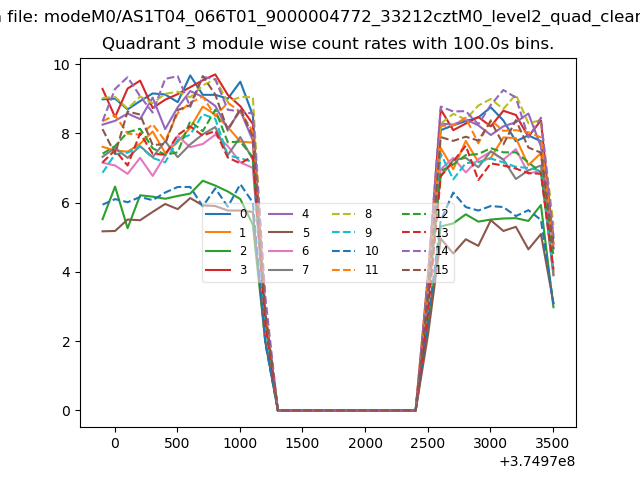

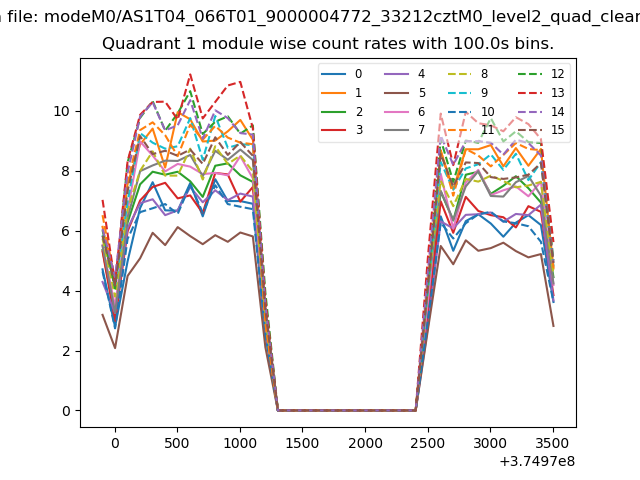

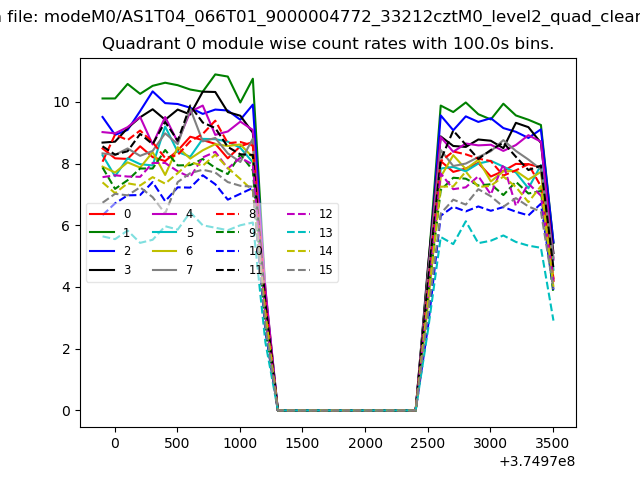

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

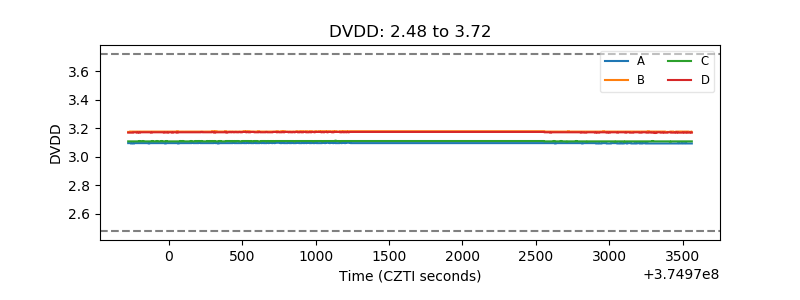

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

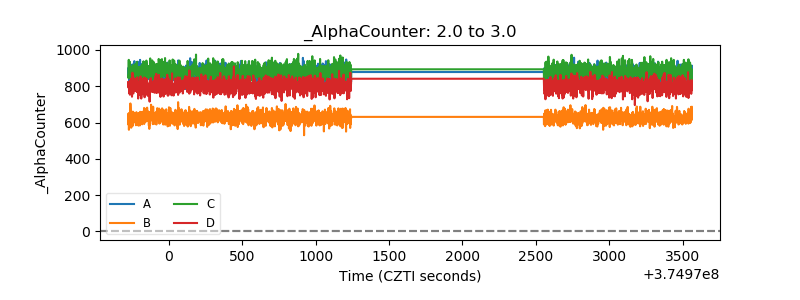

| Alpha Counter |  |
| _CPM_Rate |  |

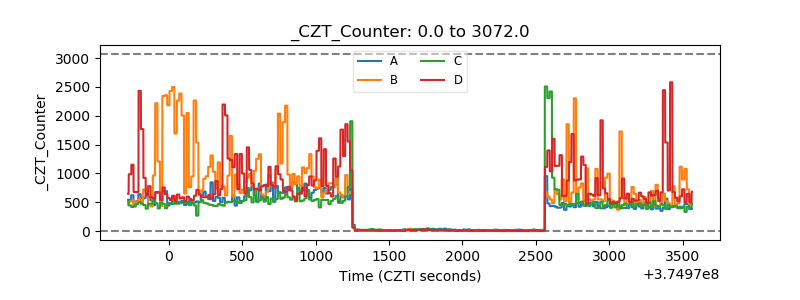

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
