| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_066T01_9000004772_33218cztM0_level2.evt | modeM0/AS1T04_066T01_9000004772_33218cztM0_level2_quad_clean.evt |
| Size (bytes) | 566,663,040 | 62,815,680 |
| Size | 540.4 MB | 59.9 MB |
| Events in quadrant A | 2,659,979 | 400,747 |
| Events in quadrant B | 3,340,386 | 397,659 |
| Events in quadrant C | 2,768,695 | 393,090 |
| Events in quadrant D | 8,037,935 | 342,402 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10861 | 3 |
| B | 0 | 13223 | 2 |
| C | 0 | 11344 | 2 |
| D | 0 | 27560 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 108 | 0 |
| B | 0 | 108 | 0 |
| C | 0 | 108 | 0 |
| D | 0 | 108 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25 | 0 |
| B | 0 | 25 | 0 |
| C | 0 | 25 | 0 |
| D | 0 | 26 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5246 | 10 | 0.190621% |
| B | 5246 | 115 | 2.192146% |
| C | 5246 | 67 | 1.277164% |
| D | 5246 | 676 | 12.886008% |

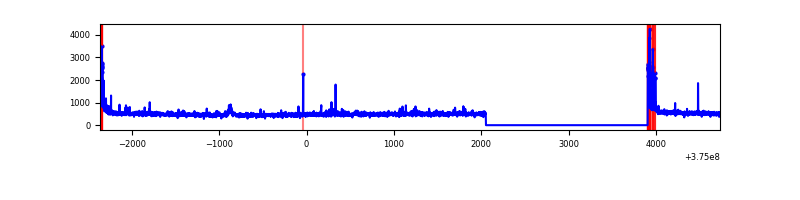

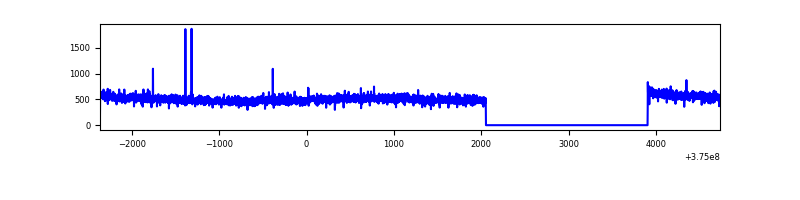

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7099 | 5247 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7099 | 5247 | 68 | 68 | 0.96% | 1.30% |  |
| C | 7099 | 5247 | 54 | 54 | 0.76% | 1.03% |  |
| D | 7099 | 5247 | 648 | 648 | 9.13% | 12.35% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 47 | 42439 | 311.35 | 673 | 662 | 134.2 |
| A | 13 | 254 | 9233 | 63.88 | 673 | 662 | 134.2 |
| A | 14 | 254 | 7245 | 49.06 | 673 | 662 | 134.2 |
| B | 5 | 172 | 378222 | 3012.13 | 664 | 647 | 125.4 |
| B | 4 | 170 | 95186 | 754.19 | 664 | 647 | 125.4 |
| B | 0 | 245 | 54830 | 432.24 | 664 | 647 | 125.4 |
| C | 0 | 10 | 202491 | 1388.73 | 637 | 643 | 145.3 |
| C | 1 | 23 | 23893 | 159.96 | 637 | 643 | 145.3 |
| C | 9 | 187 | 20429 | 136.13 | 637 | 643 | 145.3 |
| D | 8 | 195 | 3771648 | 24437.8 | 624 | 606 | 154.3 |
| D | 13 | 187 | 765932 | 4959.61 | 624 | 606 | 154.3 |
| D | 10 | 203 | 309928 | 2004.53 | 624 | 606 | 154.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

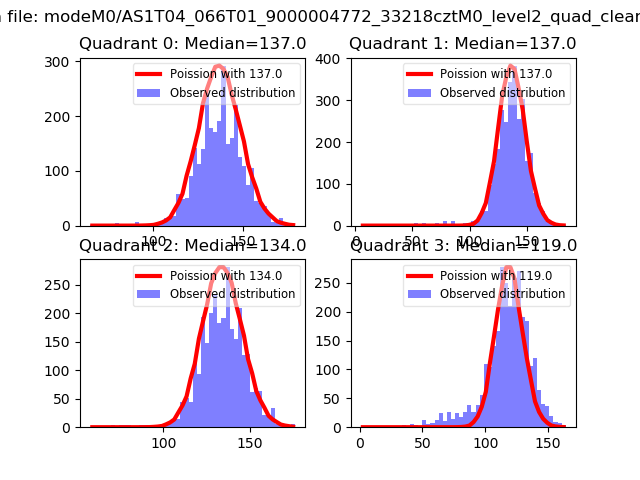

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

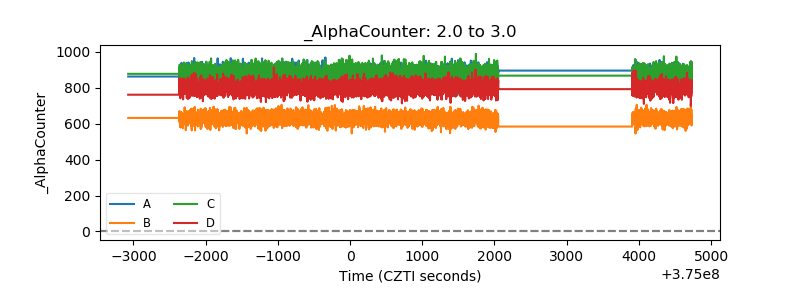

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

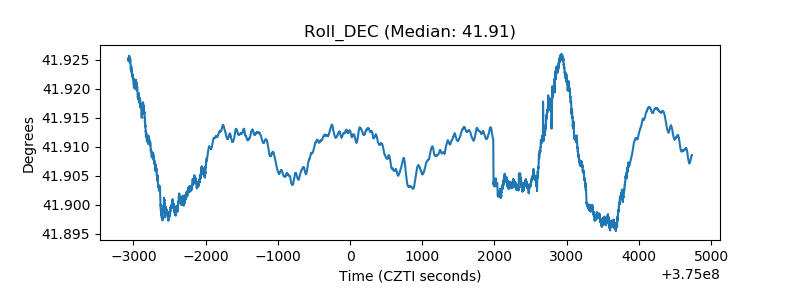

| _Roll_DEC |  |
| _Roll_RA |  |

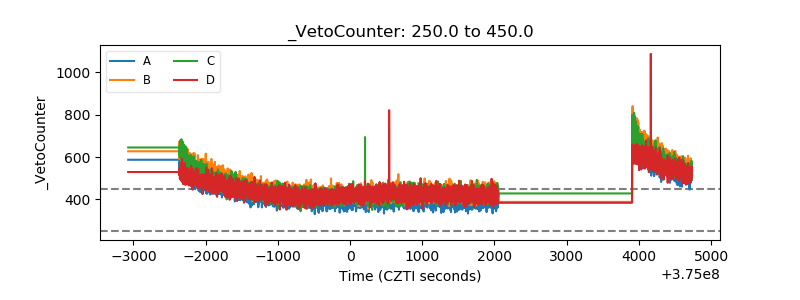

| Veto Counter |  |
