| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_067T01_9000004774_33223cztM0_level2.evt | modeM0/AS1A10_067T01_9000004774_33223cztM0_level2_quad_clean.evt |
| Size (bytes) | 500,616,000 | 61,545,600 |
| Size | 477.4 MB | 58.7 MB |
| Events in quadrant A | 2,355,756 | 397,842 |
| Events in quadrant B | 3,512,987 | 384,095 |
| Events in quadrant C | 2,542,677 | 382,854 |
| Events in quadrant D | 6,423,567 | 360,514 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 98 | 0 |
| B | 0 | 98 | 0 |
| C | 0 | 98 | 0 |
| D | 0 | 98 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9806 | 2 |
| B | 0 | 13544 | 1 |
| C | 0 | 10501 | 1 |
| D | 0 | 22550 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4818 | 2 | 0.041511% |
| B | 4818 | 202 | 4.192611% |
| C | 4818 | 52 | 1.079286% |
| D | 4818 | 846 | 17.559153% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6821 | 4819 | 0 | 0 | 0.00% | 0.00% |  |
| B | 6821 | 4819 | 147 | 147 | 2.16% | 3.05% |  |
| C | 6821 | 4819 | 45 | 45 | 0.66% | 0.93% |  |
| D | 6821 | 4819 | 764 | 764 | 11.20% | 15.85% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 47 | 22763 | 184.97 | 596 | 586 | 119.9 |
| A | 14 | 235 | 18959 | 153.24 | 596 | 586 | 119.9 |
| A | 13 | 254 | 9790 | 76.77 | 596 | 586 | 119.9 |
| B | 4 | 170 | 623072 | 5617.74 | 583 | 570 | 110.8 |
| B | 5 | 172 | 356423 | 3211.38 | 583 | 570 | 110.8 |
| B | 0 | 197 | 65823 | 588.87 | 583 | 570 | 110.8 |
| C | 10 | 49 | 99759 | 748.88 | 572 | 579 | 132.4 |
| C | 0 | 10 | 86996 | 652.51 | 572 | 579 | 132.4 |
| C | 9 | 187 | 77676 | 582.14 | 572 | 579 | 132.4 |
| D | 8 | 195 | 2488696 | 17971.43 | 547 | 535 | 138.5 |
| D | 2 | 250 | 614933 | 4437.66 | 547 | 535 | 138.5 |
| D | 12 | 3 | 579134 | 4179.09 | 547 | 535 | 138.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

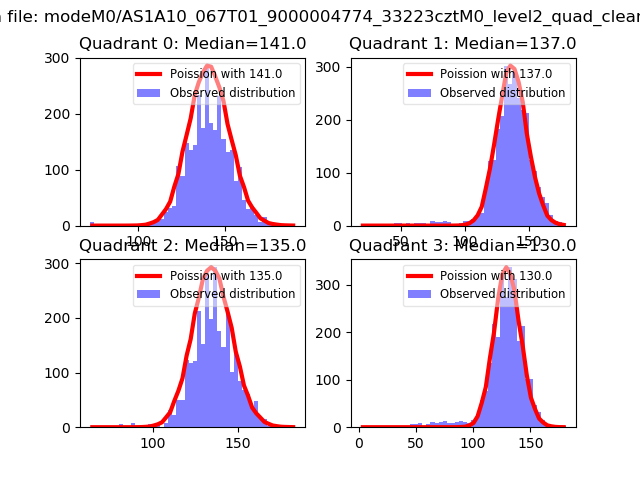

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

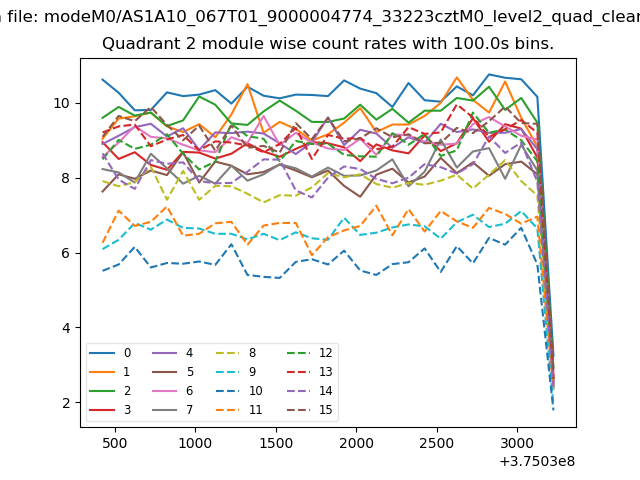

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

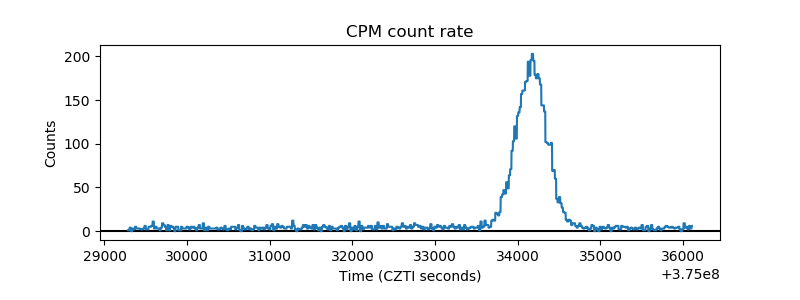

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

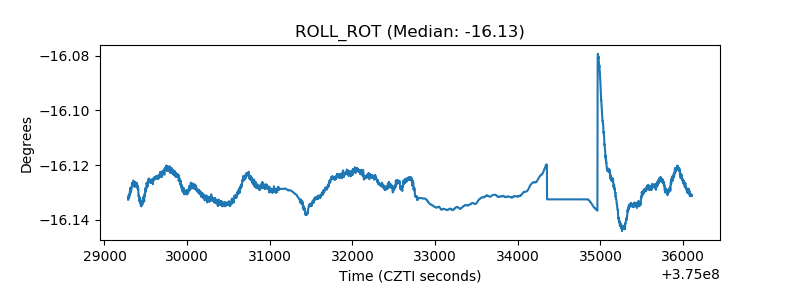

| _ROLL_ROT |  |
| _Roll_DEC |  |

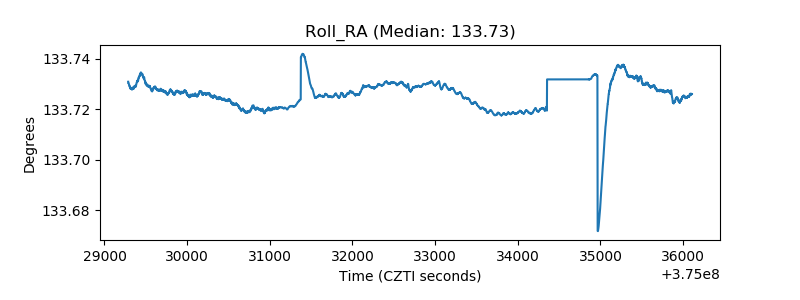

| _Roll_RA |  |
| Veto Counter |  |
