| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_067T01_9000004774_33233cztM0_level2.evt | modeM0/AS1A10_067T01_9000004774_33233cztM0_level2_quad_clean.evt |
| Size (bytes) | 501,454,080 | 70,655,040 |
| Size | 478.2 MB | 67.4 MB |
| Events in quadrant A | 2,634,937 | 457,491 |
| Events in quadrant B | 3,580,908 | 456,660 |
| Events in quadrant C | 4,201,385 | 434,776 |
| Events in quadrant D | 4,417,046 | 425,623 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 21 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 108 | 0 |
| B | 0 | 108 | 0 |
| C | 0 | 108 | 0 |
| D | 0 | 108 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10704 | 3 |
| B | 0 | 14094 | 2 |
| C | 0 | 15916 | 2 |
| D | 0 | 16933 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5201 | 6 | 0.115362% |
| B | 5201 | 113 | 2.172659% |
| C | 5201 | 207 | 3.980004% |
| D | 5201 | 170 | 3.268602% |

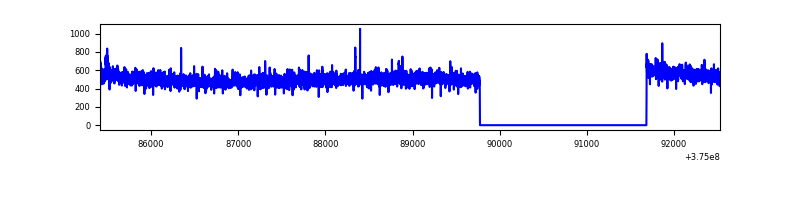

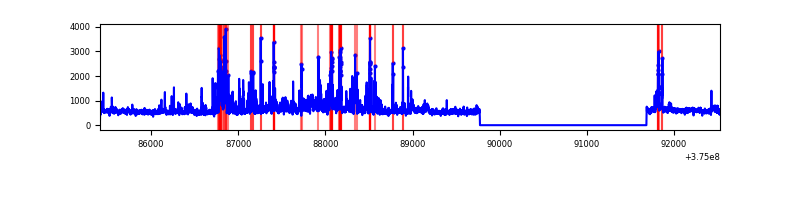

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7113 | 5202 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7113 | 5202 | 79 | 79 | 1.11% | 1.52% |  |
| C | 7113 | 5202 | 166 | 166 | 2.33% | 3.19% |  |
| D | 7113 | 5202 | 132 | 132 | 1.86% | 2.54% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 47 | 21175 | 152.33 | 674 | 660 | 134.7 |
| A | 13 | 6 | 8978 | 61.76 | 674 | 660 | 134.7 |
| A | 13 | 254 | 8548 | 58.57 | 674 | 660 | 134.7 |
| B | 5 | 172 | 417136 | 3379.17 | 657 | 643 | 123.3 |
| B | 4 | 170 | 316166 | 2559.96 | 657 | 643 | 123.3 |
| B | 5 | 200 | 75620 | 608.31 | 657 | 643 | 123.3 |
| C | 10 | 49 | 1003827 | 6883.02 | 637 | 644 | 145.7 |
| C | 15 | 208 | 279120 | 1910.67 | 637 | 644 | 145.7 |
| C | 0 | 10 | 191014 | 1306.16 | 637 | 644 | 145.7 |
| D | 8 | 195 | 753394 | 4654.89 | 651 | 633 | 161.7 |
| D | 7 | 80 | 333106 | 2055.93 | 651 | 633 | 161.7 |
| D | 2 | 250 | 281598 | 1737.42 | 651 | 633 | 161.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

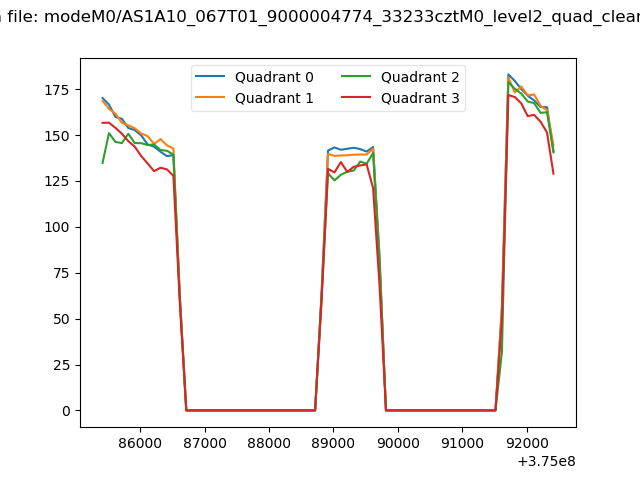

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

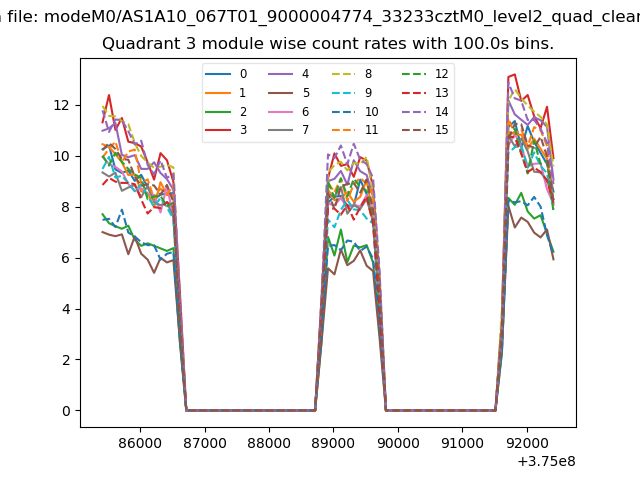

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

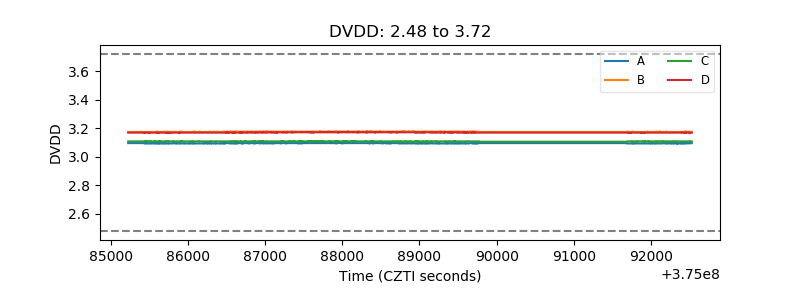

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

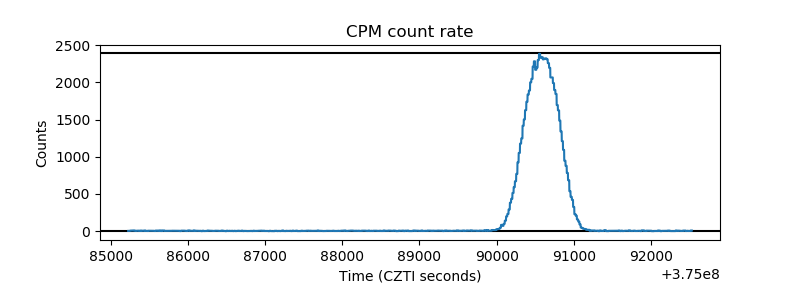

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

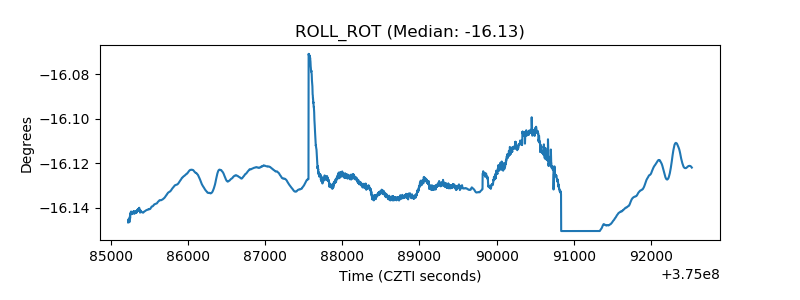

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

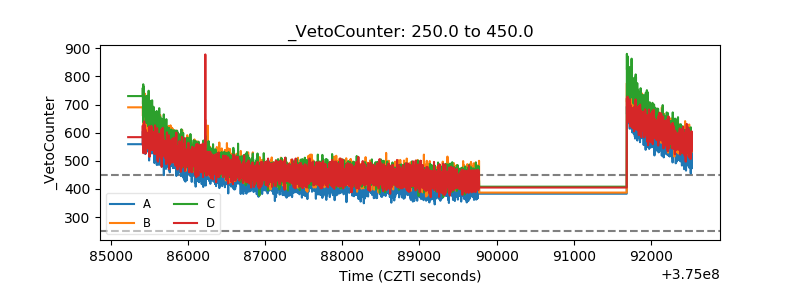

| Veto Counter |  |
