| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_067T01_9000004774_33237cztM0_level2.evt | modeM0/AS1A10_067T01_9000004774_33237cztM0_level2_quad_clean.evt |
| Size (bytes) | 571,415,040 | 56,257,920 |
| Size | 544.9 MB | 53.7 MB |
| Events in quadrant A | 2,579,828 | 348,456 |
| Events in quadrant B | 3,708,819 | 339,674 |
| Events in quadrant C | 2,906,710 | 343,126 |
| Events in quadrant D | 7,759,903 | 308,908 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 23 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 106 | 0 |
| B | 0 | 106 | 0 |
| C | 0 | 106 | 0 |
| D | 0 | 106 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10639 | 3 |
| B | 0 | 14293 | 2 |
| C | 0 | 11693 | 2 |
| D | 0 | 26740 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5178 | 5 | 0.096562% |
| B | 5178 | 363 | 7.010429% |
| C | 5178 | 89 | 1.718810% |
| D | 5178 | 934 | 18.037852% |

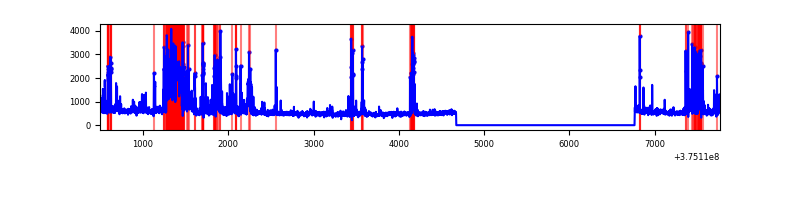

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

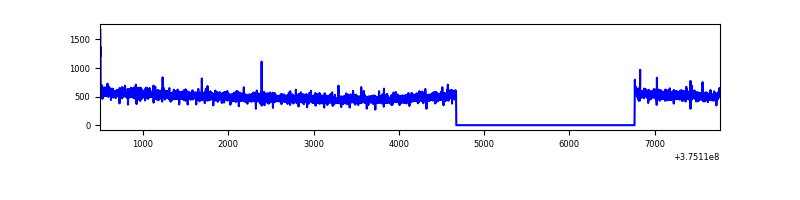

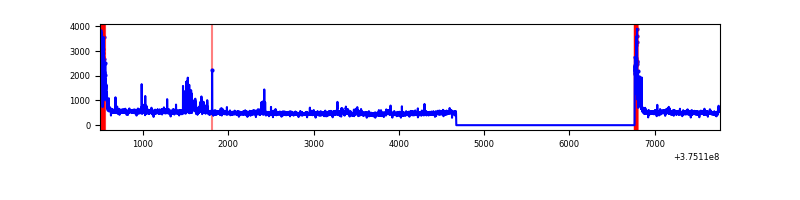

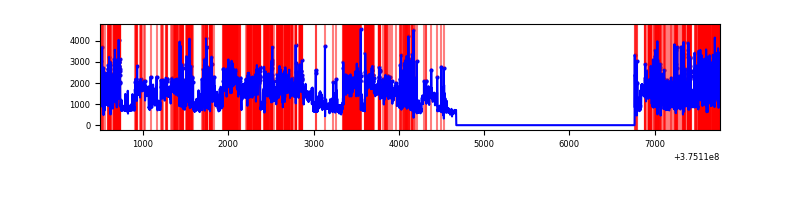

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7271 | 5179 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7271 | 5179 | 262 | 262 | 3.60% | 5.06% |  |
| C | 7271 | 5179 | 62 | 62 | 0.85% | 1.20% |  |
| D | 7271 | 5179 | 999 | 999 | 13.74% | 19.29% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 6 | 14654 | 107.23 | 658 | 647 | 130.6 |
| A | 14 | 4 | 9539 | 68.07 | 658 | 647 | 130.6 |
| A | 13 | 254 | 8326 | 58.78 | 658 | 647 | 130.6 |
| B | 5 | 172 | 1031634 | 8633.16 | 629 | 614 | 119.4 |
| B | 0 | 219 | 44651 | 368.74 | 629 | 614 | 119.4 |
| B | 15 | 85 | 33308 | 273.76 | 629 | 614 | 119.4 |
| C | 0 | 10 | 261719 | 1786.97 | 636 | 643 | 146.1 |
| C | 1 | 23 | 89253 | 606.5 | 636 | 643 | 146.1 |
| C | 14 | 67 | 39011 | 262.61 | 636 | 643 | 146.1 |
| D | 8 | 195 | 2896119 | 19129.82 | 611 | 594 | 151.4 |
| D | 7 | 80 | 1065505 | 7035.53 | 611 | 594 | 151.4 |
| D | 12 | 3 | 656737 | 4334.93 | 611 | 594 | 151.4 |

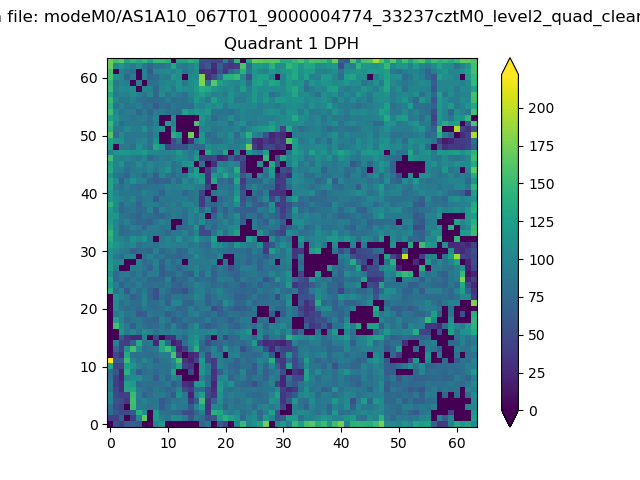

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

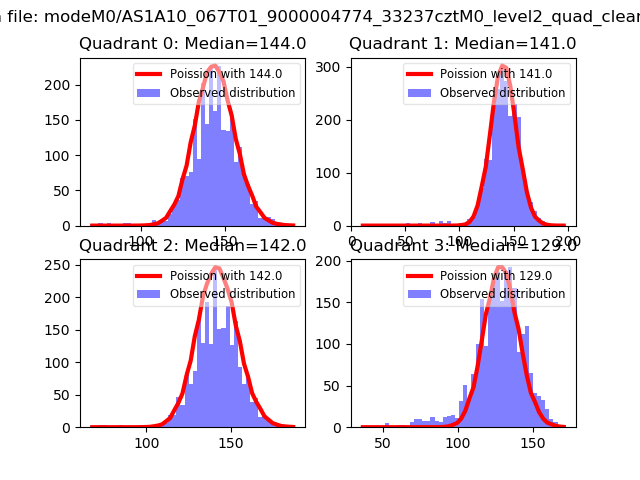

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

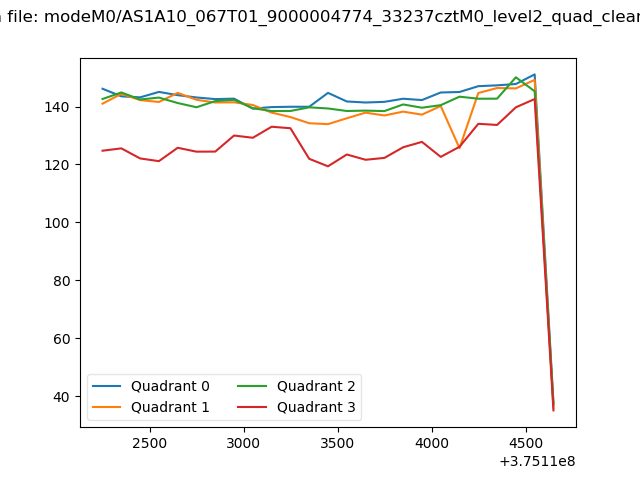

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

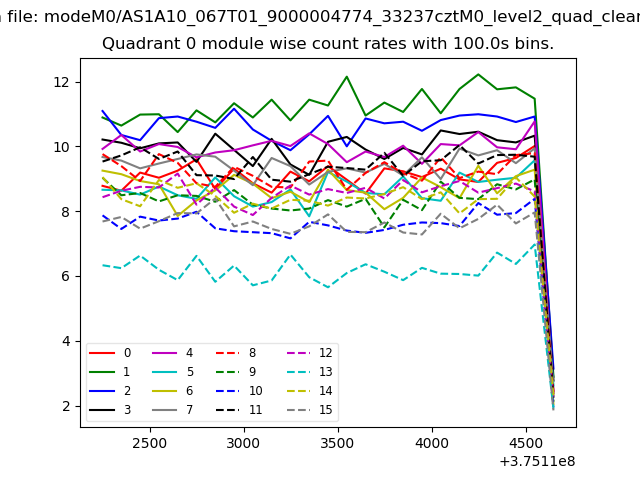

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

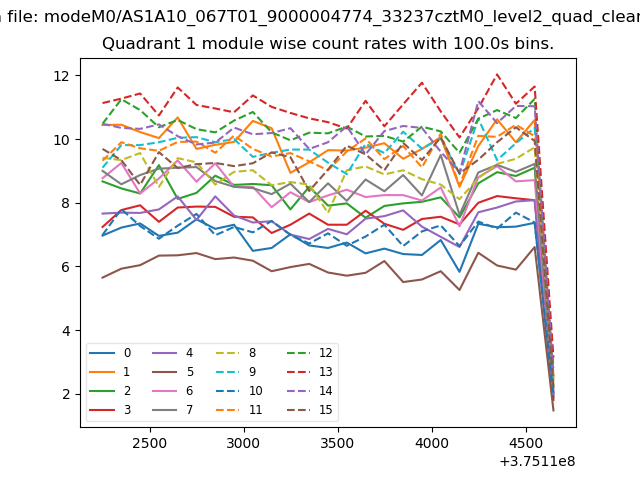

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

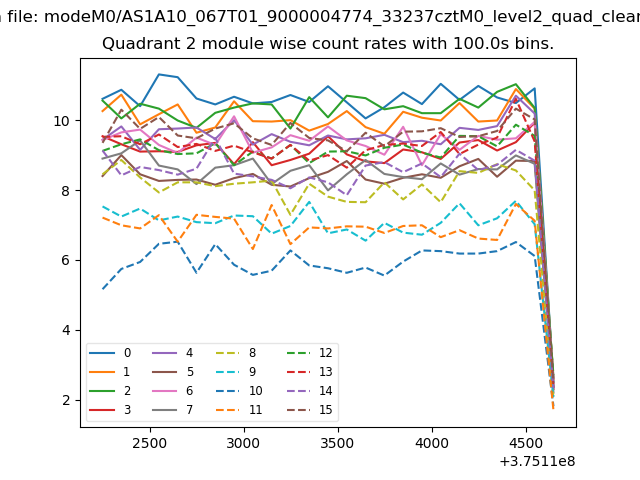

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

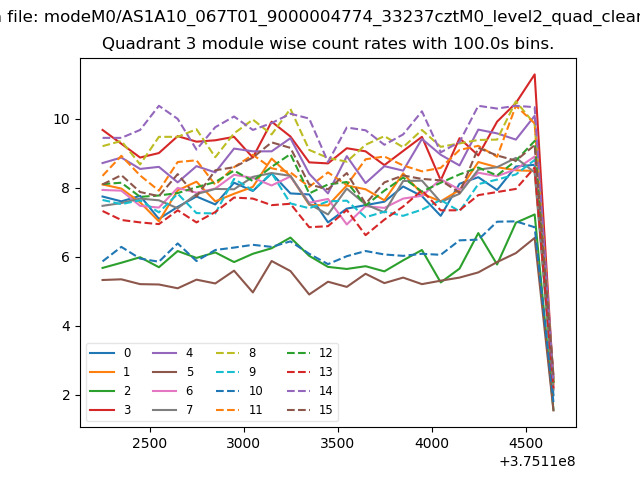

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

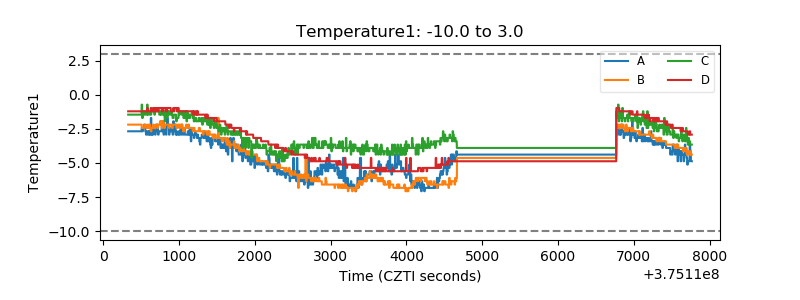

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

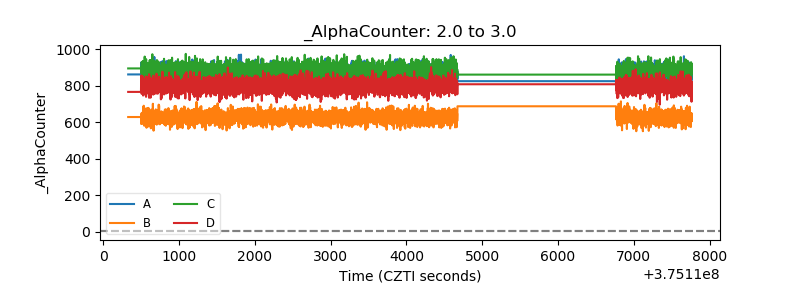

| Alpha Counter |  |
| _CPM_Rate |  |

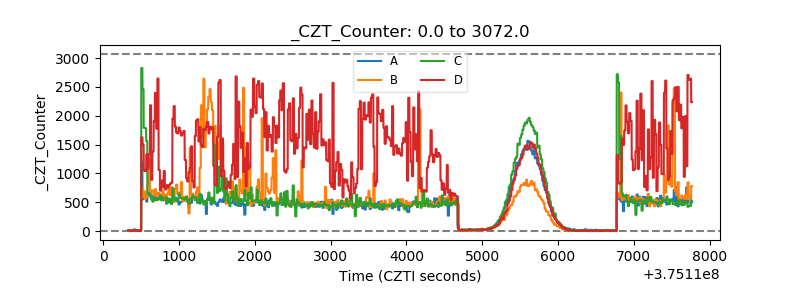

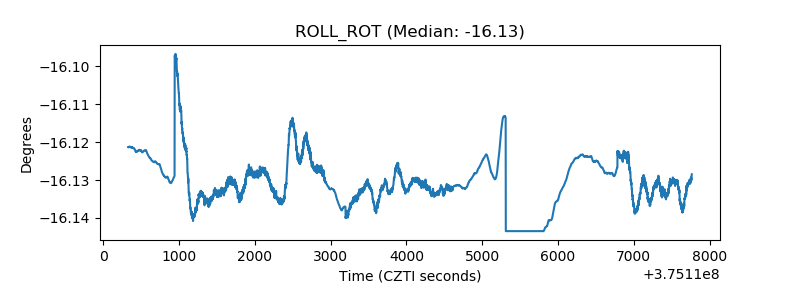

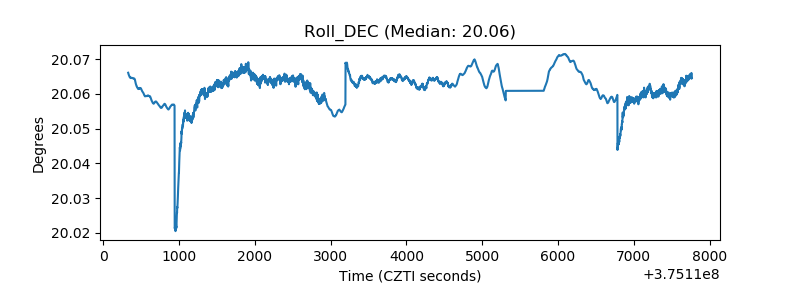

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

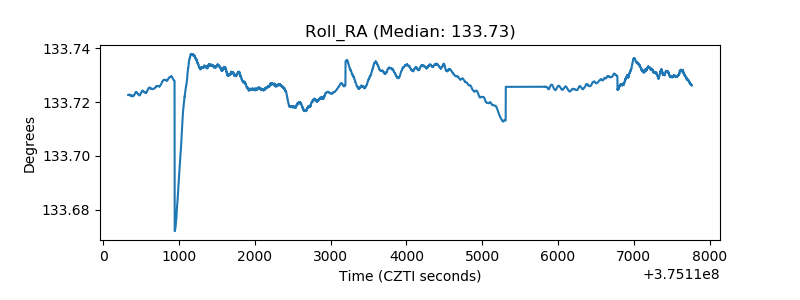

| _Roll_RA |  |

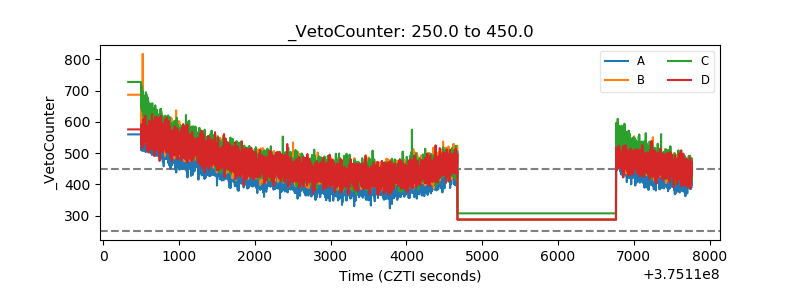

| Veto Counter |  |
