| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_067T01_9000004774_33243cztM0_level2.evt | modeM0/AS1A10_067T01_9000004774_33243cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,417,849,920 | 106,136,640 |
| Size | 1.3 GB | 101.2 MB |
| Events in quadrant A | 17,705,328 | 544,881 |
| Events in quadrant B | 5,265,689 | 743,599 |
| Events in quadrant C | 4,657,252 | 735,725 |
| Events in quadrant D | 14,711,450 | 566,063 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 17 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 182 | 0 |
| B | 0 | 182 | 0 |
| C | 0 | 182 | 0 |
| D | 0 | 182 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 58698 | 2 |
| B | 0 | 21682 | 2 |
| C | 0 | 19966 | 2 |
| D | 0 | 50076 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8941 | 6036 | 67.509227% |
| B | 8941 | 345 | 3.858629% |
| C | 8941 | 161 | 1.800693% |
| D | 8941 | 2924 | 32.703277% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

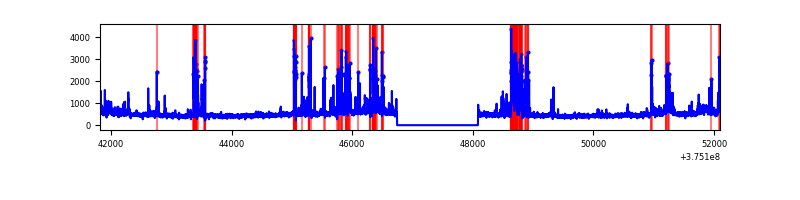

| A | 10284 | 8942 | 4624 | 4624 | 44.96% | 51.71% |  |

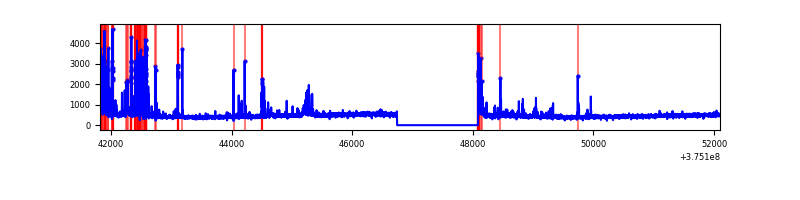

| B | 10284 | 8942 | 216 | 216 | 2.10% | 2.42% |  |
| C | 10284 | 8942 | 135 | 135 | 1.31% | 1.51% |  |
| D | 10283 | 8941 | 2474 | 2474 | 24.06% | 27.67% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 14871472 | 101923.85 | 729 | 715 | 145.9 |
| A | 13 | 6 | 14840 | 96.81 | 729 | 715 | 145.9 |
| A | 13 | 254 | 11046 | 70.81 | 729 | 715 | 145.9 |
| B | 5 | 172 | 936974 | 4885.93 | 1004 | 980 | 191.6 |
| B | 4 | 170 | 149134 | 773.37 | 1004 | 980 | 191.6 |
| B | 0 | 183 | 50902 | 260.6 | 1004 | 980 | 191.6 |
| C | 1 | 23 | 334098 | 1464.77 | 987 | 994 | 227.4 |
| C | 9 | 187 | 147032 | 642.18 | 987 | 994 | 227.4 |
| C | 0 | 10 | 139528 | 609.18 | 987 | 994 | 227.4 |
| D | 12 | 3 | 6112655 | 28418.32 | 865 | 838 | 215.1 |
| D | 8 | 195 | 3471980 | 16139.88 | 865 | 838 | 215.1 |
| D | 2 | 250 | 344816 | 1599.41 | 865 | 838 | 215.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

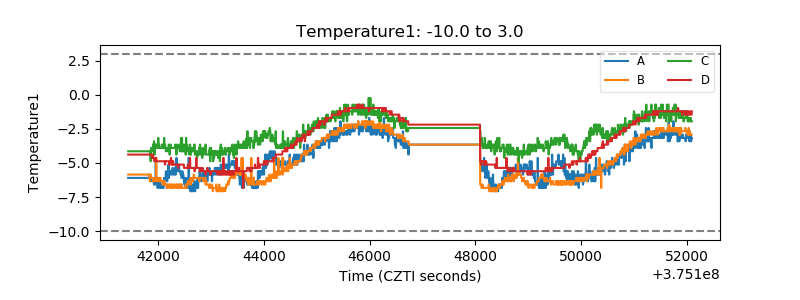

| Temperature 1 |  |

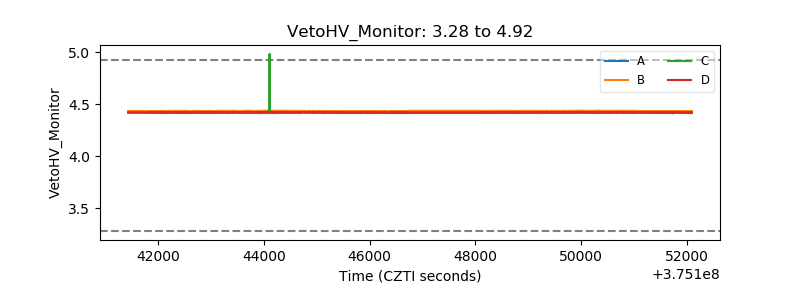

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

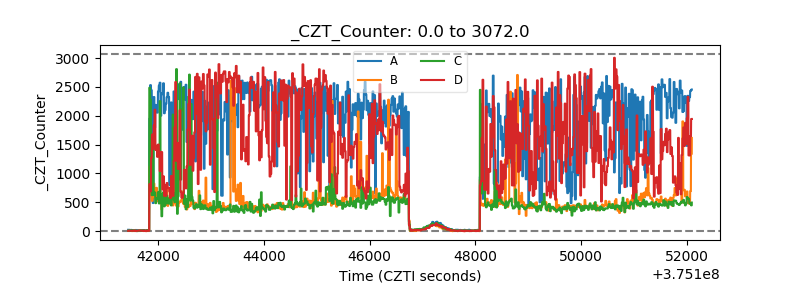

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

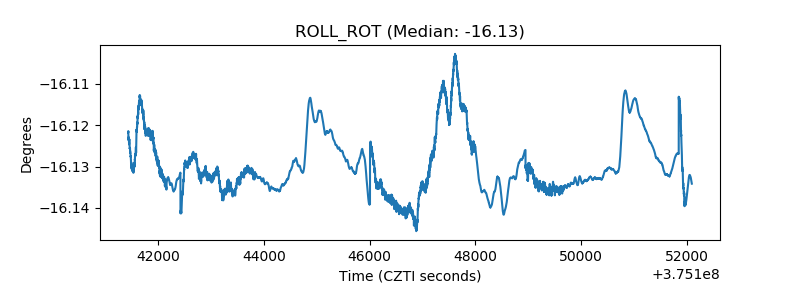

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

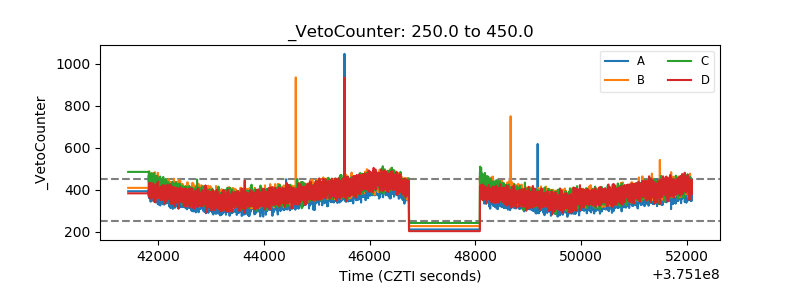

| Veto Counter |  |
