| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_046T01_9000004776_33247cztM0_level2.evt | modeM0/AS1A11_046T01_9000004776_33247cztM0_level2_quad_clean.evt |
| Size (bytes) | 696,502,080 | 102,790,080 |
| Size | 664.2 MB | 98.0 MB |
| Events in quadrant A | 8,651,659 | 648,202 |
| Events in quadrant B | 3,674,198 | 721,650 |
| Events in quadrant C | 2,634,195 | 720,622 |
| Events in quadrant D | 5,770,998 | 645,264 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 110 | 0 |
| B | 0 | 110 | 0 |
| C | 0 | 110 | 0 |
| D | 0 | 110 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29330 | 3 |
| B | 0 | 14270 | 2 |
| C | 0 | 11268 | 2 |
| D | 0 | 20910 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 19 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5366 | 2370 | 44.166977% |
| B | 5366 | 376 | 7.007082% |
| C | 5366 | 40 | 0.745434% |
| D | 5366 | 618 | 11.516959% |

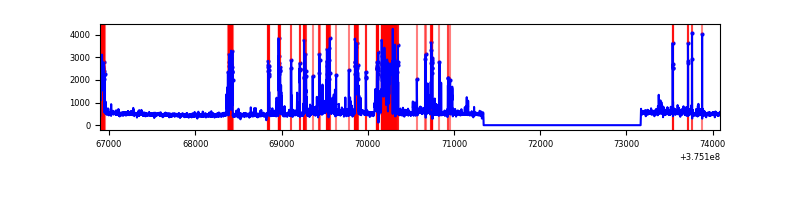

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7189 | 5367 | 2040 | 2040 | 28.38% | 38.01% |  |
| B | 7189 | 5367 | 293 | 293 | 4.08% | 5.46% |  |
| C | 7189 | 5367 | 27 | 27 | 0.38% | 0.50% |  |
| D | 7189 | 5367 | 455 | 455 | 6.33% | 8.48% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 6368267 | 55049.8 | 585 | 576 | 115.7 |
| A | 13 | 6 | 12552 | 103.53 | 585 | 576 | 115.7 |
| A | 13 | 254 | 8181 | 65.75 | 585 | 576 | 115.7 |
| B | 5 | 172 | 870513 | 7532.75 | 619 | 604 | 115.5 |
| B | 15 | 85 | 111721 | 962.19 | 619 | 604 | 115.5 |
| B | 4 | 170 | 73971 | 635.3 | 619 | 604 | 115.5 |
| C | 0 | 10 | 153823 | 1097.55 | 614 | 618 | 139.6 |
| C | 3 | 233 | 21137 | 147.0 | 614 | 618 | 139.6 |
| C | 14 | 254 | 15228 | 104.66 | 614 | 618 | 139.6 |
| D | 8 | 195 | 1687401 | 11536.03 | 591 | 575 | 146.2 |
| D | 12 | 3 | 1066887 | 7292.4 | 591 | 575 | 146.2 |
| D | 10 | 118 | 183386 | 1250.23 | 591 | 575 | 146.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

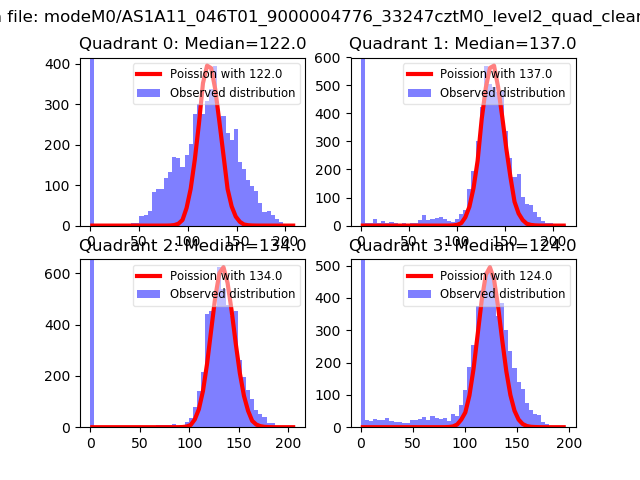

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

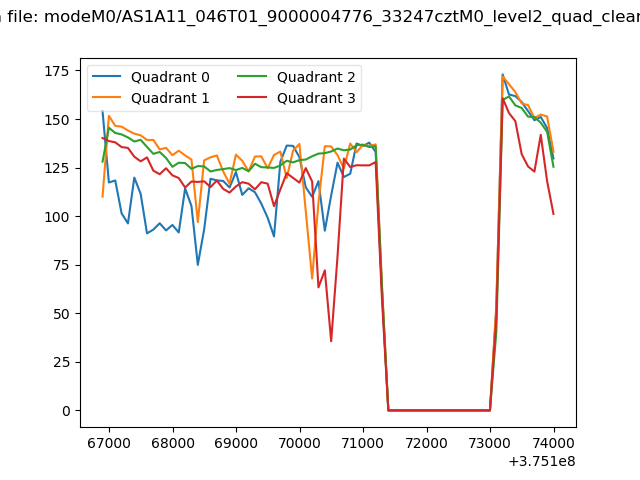

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

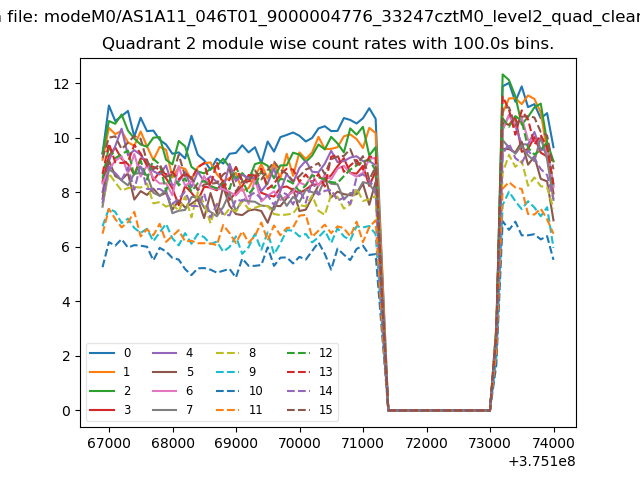

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

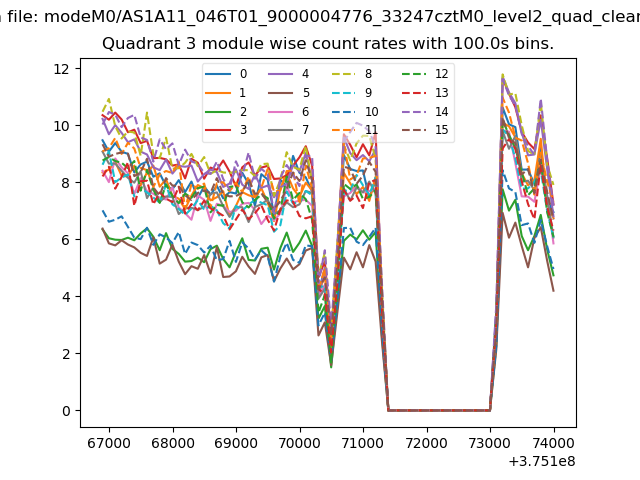

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

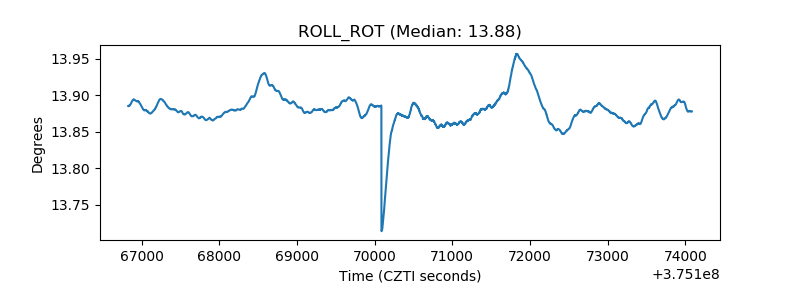

| _ROLL_ROT |  |

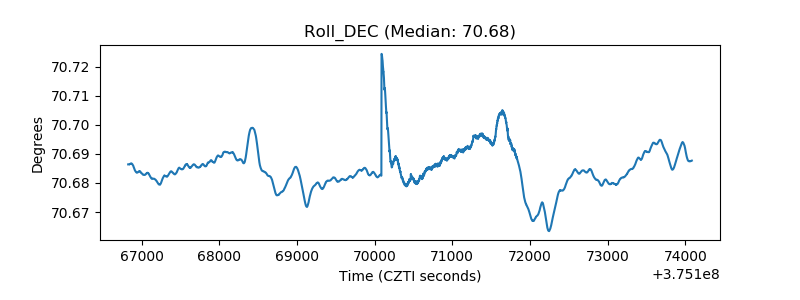

| _Roll_DEC |  |
| _Roll_RA |  |

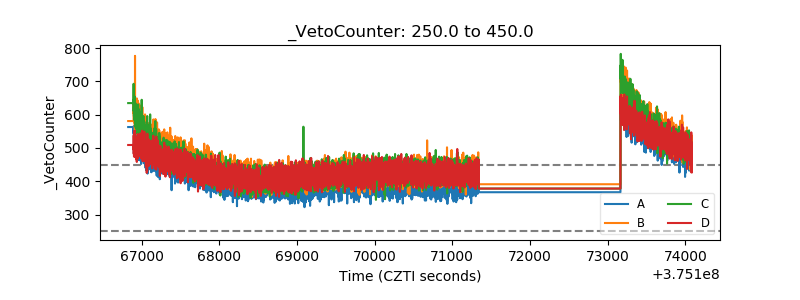

| Veto Counter |  |
