| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_047T10_9000004778_33258cztM0_level2.evt | modeM0/AS1A11_047T10_9000004778_33258cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,497,337,920 | 210,170,880 |
| Size | 1.4 GB | 200.4 MB |
| Events in quadrant A | 10,881,202 | 1,329,991 |
| Events in quadrant B | 9,922,925 | 1,353,451 |
| Events in quadrant C | 7,678,745 | 1,338,951 |
| Events in quadrant D | 15,809,324 | 1,261,248 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 42888 | 12 |
| B | 0 | 40402 | 7 |
| C | 0 | 33786 | 16 |
| D | 0 | 58080 | 42 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 318 | 0 |
| B | 0 | 318 | 0 |
| C | 0 | 318 | 0 |
| D | 0 | 318 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 45 | 0 |
| B | 0 | 45 | 0 |
| C | 0 | 45 | 0 |
| D | 0 | 46 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 15682 | 673 | 4.291544% |
| B | 15683 | 797 | 5.081936% |
| C | 15679 | 241 | 1.537088% |
| D | 15675 | 1023 | 6.526316% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

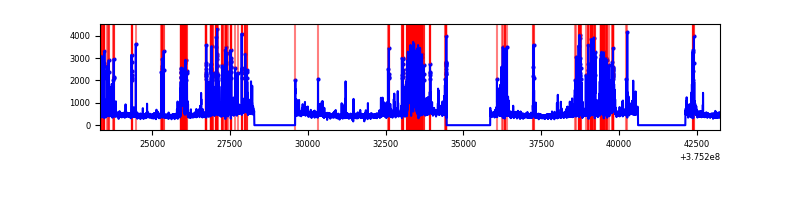

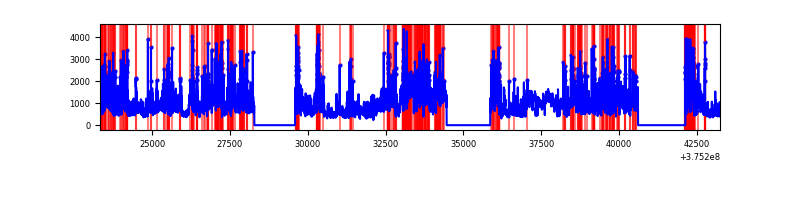

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 19923 | 15688 | 554 | 554 | 2.78% | 3.53% |  |
| B | 19923 | 15688 | 521 | 521 | 2.62% | 3.32% |  |
| C | 19923 | 15688 | 191 | 191 | 0.96% | 1.22% |  |
| D | 19923 | 15688 | 732 | 732 | 3.67% | 4.67% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 3998358 | 11358.97 | 1770 | 1736 | 351.8 |
| A | 13 | 6 | 32720 | 88.06 | 1770 | 1736 | 351.8 |
| A | 13 | 254 | 27114 | 72.13 | 1770 | 1736 | 351.8 |
| B | 5 | 172 | 2111547 | 6379.23 | 1750 | 1703 | 330.7 |
| B | 0 | 219 | 235045 | 705.52 | 1750 | 1703 | 330.7 |
| B | 5 | 200 | 181639 | 544.05 | 1750 | 1703 | 330.7 |
| C | 0 | 10 | 480707 | 1218.13 | 1717 | 1733 | 393.2 |
| C | 15 | 208 | 291675 | 737.38 | 1717 | 1733 | 393.2 |
| C | 10 | 49 | 77155 | 191.81 | 1717 | 1733 | 393.2 |
| D | 8 | 195 | 5651605 | 12208.38 | 1688 | 1655 | 462.8 |
| D | 2 | 250 | 1147536 | 2476.01 | 1688 | 1655 | 462.8 |
| D | 12 | 218 | 1068894 | 2306.08 | 1688 | 1655 | 462.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

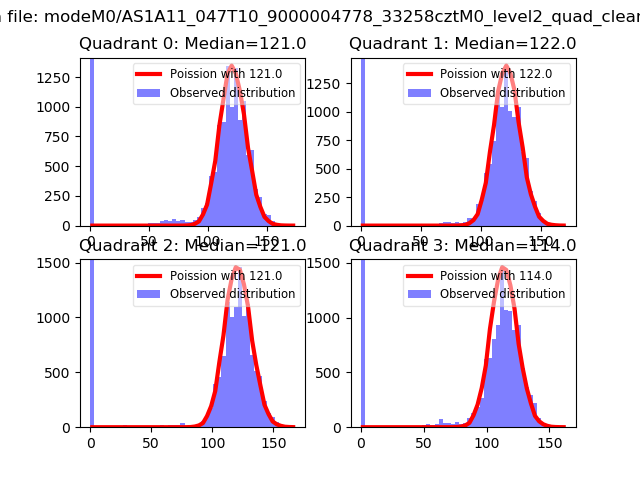

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

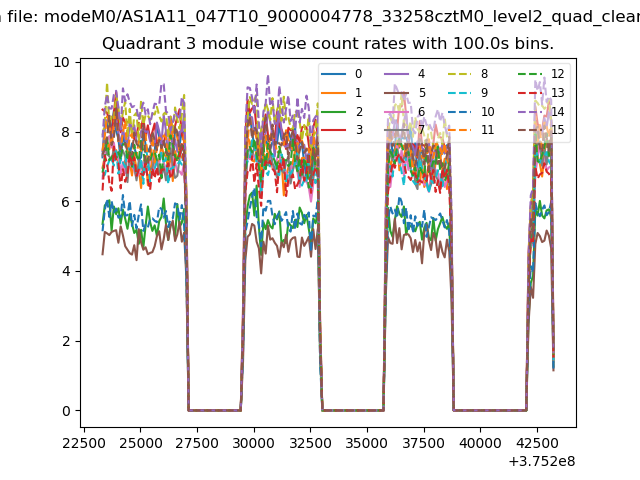

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

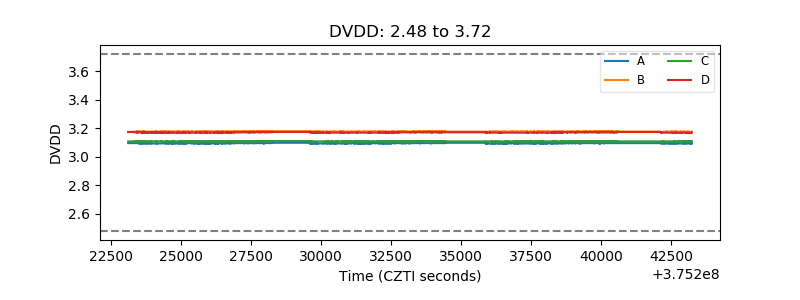

| D_VDD |  |

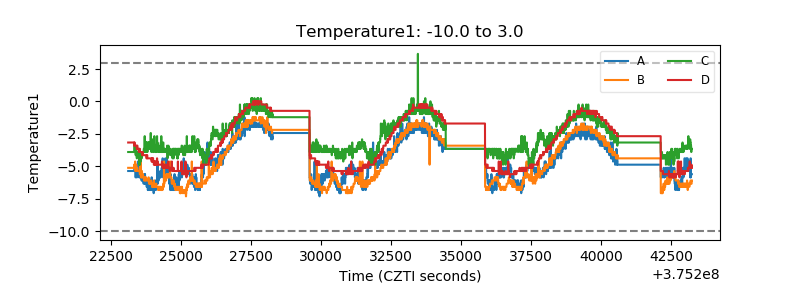

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

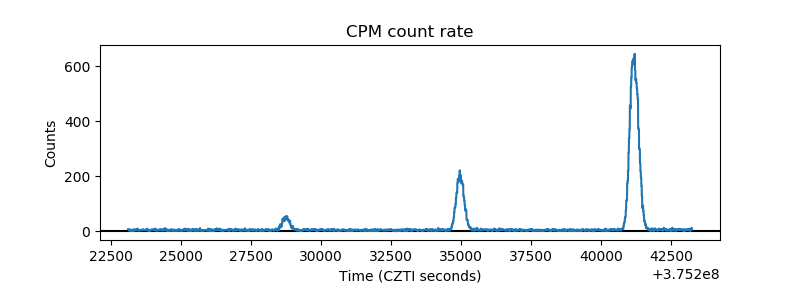

| _CPM_Rate |  |

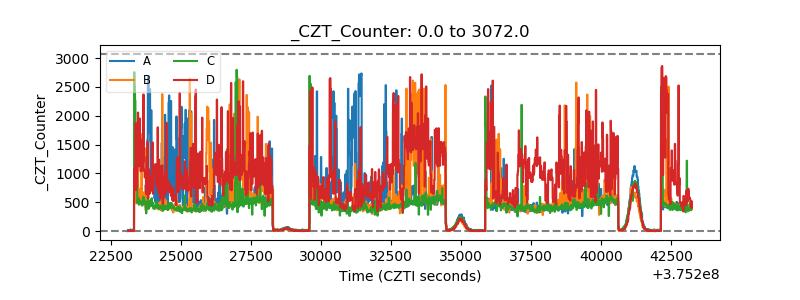

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
