| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_047T10_9000004778_33262cztM0_level2.evt | modeM0/AS1A11_047T10_9000004778_33262cztM0_level2_quad_clean.evt |
| Size (bytes) | 506,854,080 | 72,861,120 |
| Size | 483.4 MB | 69.5 MB |
| Events in quadrant A | 3,375,254 | 473,377 |
| Events in quadrant B | 4,563,589 | 476,834 |
| Events in quadrant C | 2,561,424 | 460,436 |
| Events in quadrant D | 4,504,435 | 438,386 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13045 | 2 |
| B | 0 | 16745 | 1 |
| C | 0 | 10743 | 1 |
| D | 0 | 16886 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 104 | 0 |
| B | 0 | 104 | 0 |
| C | 0 | 104 | 0 |
| D | 0 | 104 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5097 | 218 | 4.277026% |
| B | 5097 | 785 | 15.401216% |
| C | 5097 | 42 | 0.824014% |
| D | 5097 | 149 | 2.923288% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7011 | 5098 | 150 | 150 | 2.14% | 2.94% |  |
| B | 7011 | 5098 | 600 | 600 | 8.56% | 11.77% |  |
| C | 7011 | 5098 | 31 | 31 | 0.44% | 0.61% |  |
| D | 7011 | 5098 | 102 | 102 | 1.45% | 2.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 914027 | 7283.52 | 635 | 625 | 125.4 |
| A | 13 | 254 | 9197 | 68.35 | 635 | 625 | 125.4 |
| A | 3 | 137 | 5643 | 40.01 | 635 | 625 | 125.4 |
| B | 5 | 172 | 1665143 | 15153.86 | 585 | 573 | 109.8 |
| B | 0 | 219 | 410211 | 3729.25 | 585 | 573 | 109.8 |
| B | 5 | 200 | 126203 | 1143.7 | 585 | 573 | 109.8 |
| C | 0 | 10 | 118894 | 855.23 | 604 | 608 | 138.3 |
| C | 10 | 49 | 41862 | 298.27 | 604 | 608 | 138.3 |
| C | 14 | 67 | 26949 | 190.45 | 604 | 608 | 138.3 |
| D | 8 | 195 | 1448443 | 9594.17 | 610 | 592 | 150.9 |
| D | 12 | 218 | 164831 | 1088.33 | 610 | 592 | 150.9 |
| D | 2 | 250 | 120310 | 793.31 | 610 | 592 | 150.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

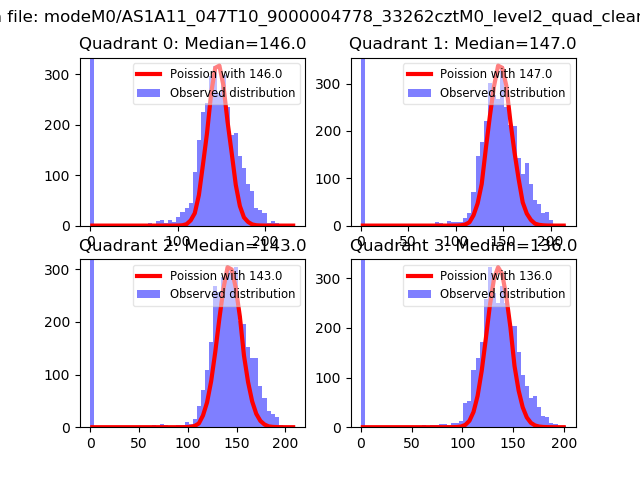

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

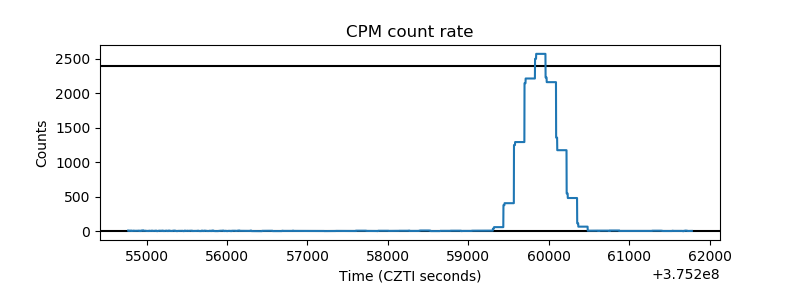

| _CPM_Rate |  |

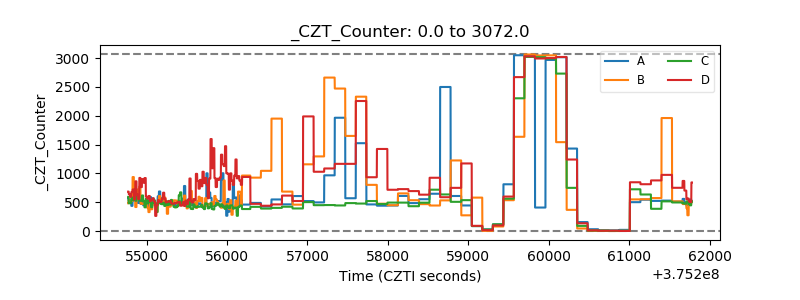

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

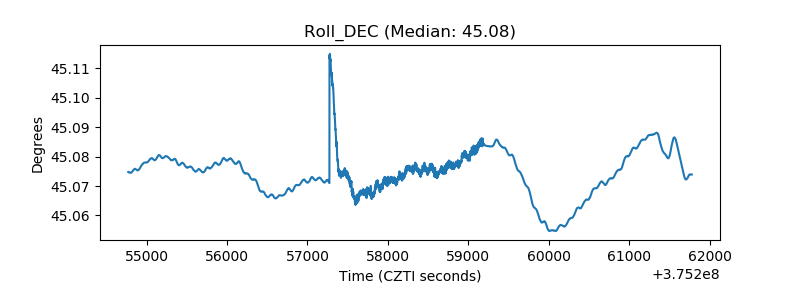

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
