| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_072T01_9000004780_33283cztM0_level2.evt | modeM0/AS1T04_072T01_9000004780_33283cztM0_level2_quad_clean.evt |
| Size (bytes) | 583,421,760 | 71,461,440 |
| Size | 556.4 MB | 68.2 MB |
| Events in quadrant A | 2,603,372 | 469,441 |
| Events in quadrant B | 4,571,935 | 439,298 |
| Events in quadrant C | 4,337,314 | 429,713 |
| Events in quadrant D | 5,770,393 | 425,846 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 116 | 0 |
| B | 0 | 116 | 0 |
| C | 0 | 116 | 0 |
| D | 0 | 116 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11502 | 3 |
| B | 0 | 17292 | 2 |
| C | 0 | 16462 | 2 |
| D | 0 | 21128 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 19 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5708 | 7 | 0.122635% |
| B | 5708 | 487 | 8.531885% |
| C | 5708 | 384 | 6.727400% |
| D | 5708 | 316 | 5.536090% |

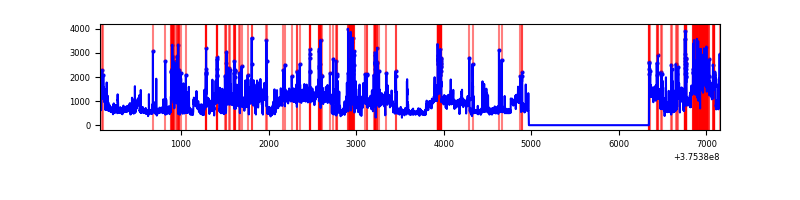

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7081 | 5709 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7081 | 5709 | 268 | 268 | 3.78% | 4.69% |  |
| C | 7081 | 5709 | 332 | 332 | 4.69% | 5.82% |  |
| D | 7081 | 5709 | 306 | 306 | 4.32% | 5.36% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 9570 | 66.16 | 667 | 653 | 134.8 |
| A | 12 | 16 | 7757 | 52.71 | 667 | 653 | 134.8 |
| A | 13 | 6 | 6704 | 44.89 | 667 | 653 | 134.8 |
| B | 0 | 219 | 828818 | 6801.65 | 643 | 626 | 121.8 |
| B | 5 | 172 | 756588 | 6208.45 | 643 | 626 | 121.8 |
| B | 0 | 245 | 221697 | 1815.58 | 643 | 626 | 121.8 |
| C | 1 | 23 | 1323115 | 9132.36 | 628 | 635 | 144.8 |
| C | 15 | 214 | 236111 | 1626.08 | 628 | 635 | 144.8 |
| C | 0 | 10 | 161467 | 1110.62 | 628 | 635 | 144.8 |
| D | 8 | 195 | 2091172 | 12589.99 | 636 | 621 | 166.0 |
| D | 2 | 120 | 166174 | 997.01 | 636 | 621 | 166.0 |
| D | 14 | 52 | 161054 | 966.18 | 636 | 621 | 166.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

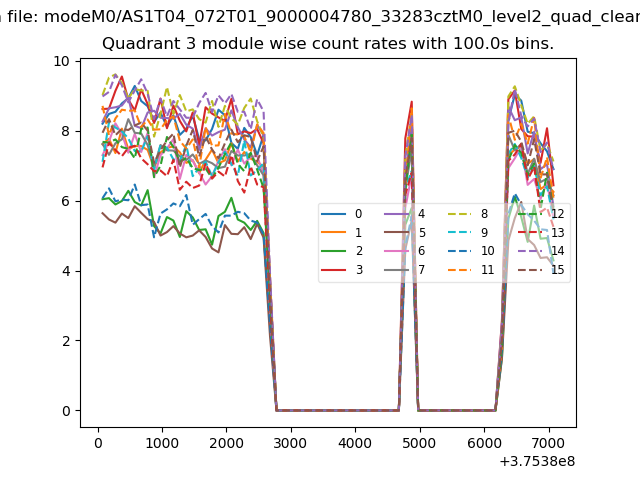

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

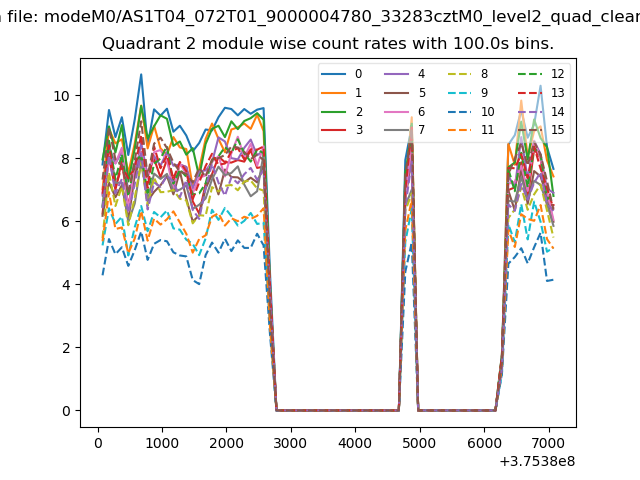

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

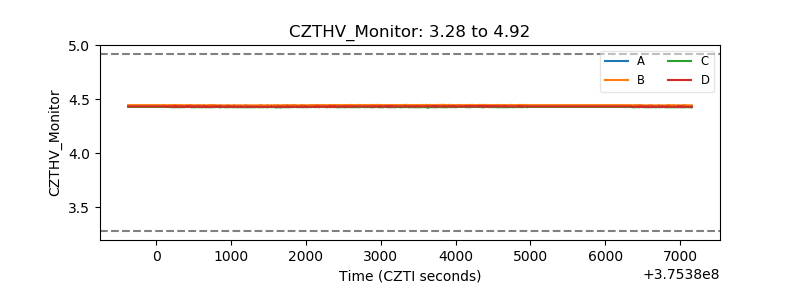

| CZT HV Monitor |  |
| D_VDD |  |

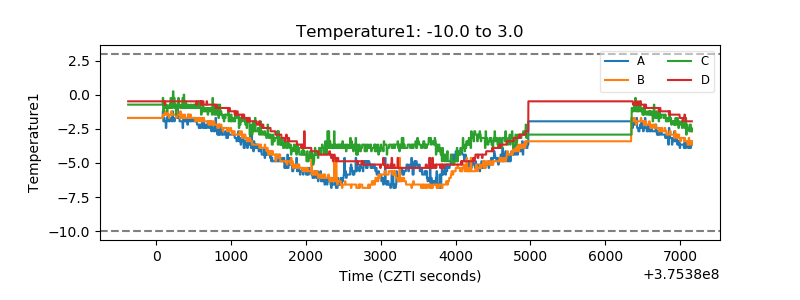

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

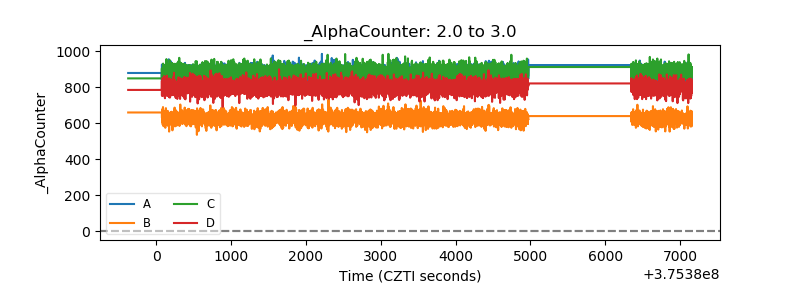

| Alpha Counter |  |

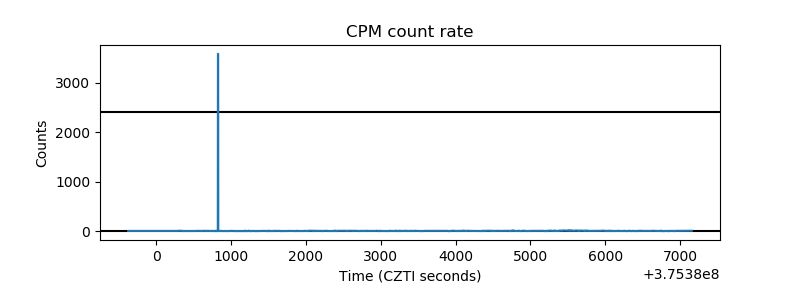

| _CPM_Rate |  |

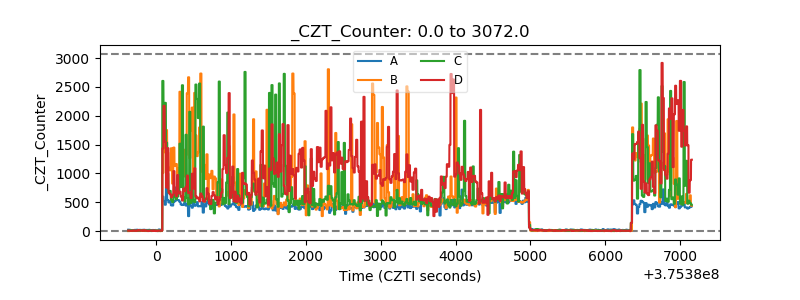

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
