| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_072T01_9000004780_33294cztM0_level2.evt | modeM0/AS1T04_072T01_9000004780_33294cztM0_level2_quad_clean.evt |
| Size (bytes) | 534,859,200 | 96,958,080 |
| Size | 510.1 MB | 92.5 MB |
| Events in quadrant A | 2,582,093 | 686,122 |
| Events in quadrant B | 3,725,725 | 667,301 |
| Events in quadrant C | 3,982,426 | 646,099 |
| Events in quadrant D | 5,575,374 | 591,534 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 100 | 0 |
| B | 0 | 100 | 0 |
| C | 0 | 100 | 0 |
| D | 0 | 100 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10391 | 3 |
| B | 0 | 14180 | 2 |
| C | 0 | 15267 | 2 |
| D | 0 | 20113 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 35 | 0 |
| B | 0 | 35 | 0 |
| C | 0 | 35 | 0 |
| D | 0 | 36 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4921 | 6 | 0.121926% |
| B | 4921 | 271 | 5.507011% |
| C | 4921 | 126 | 2.560455% |
| D | 4921 | 726 | 14.753099% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7074 | 4922 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7074 | 4922 | 169 | 169 | 2.39% | 3.43% |  |
| C | 7074 | 4922 | 91 | 91 | 1.29% | 1.85% |  |
| D | 7074 | 4922 | 598 | 598 | 8.45% | 12.15% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 28936 | 218.95 | 658 | 647 | 129.2 |
| A | 13 | 6 | 10892 | 79.3 | 658 | 647 | 129.2 |
| A | 13 | 254 | 6964 | 48.89 | 658 | 647 | 129.2 |
| B | 5 | 172 | 727579 | 6110.26 | 636 | 623 | 119.0 |
| B | 0 | 219 | 358600 | 3008.89 | 636 | 623 | 119.0 |
| B | 4 | 155 | 38760 | 320.55 | 636 | 623 | 119.0 |
| C | 10 | 49 | 856008 | 6167.72 | 611 | 617 | 138.7 |
| C | 1 | 23 | 278285 | 2002.1 | 611 | 617 | 138.7 |
| C | 15 | 214 | 214476 | 1542.01 | 611 | 617 | 138.7 |
| D | 8 | 195 | 1061416 | 6595.44 | 593 | 582 | 160.8 |
| D | 12 | 218 | 869155 | 5400.11 | 593 | 582 | 160.8 |
| D | 7 | 223 | 552435 | 3430.99 | 593 | 582 | 160.8 |

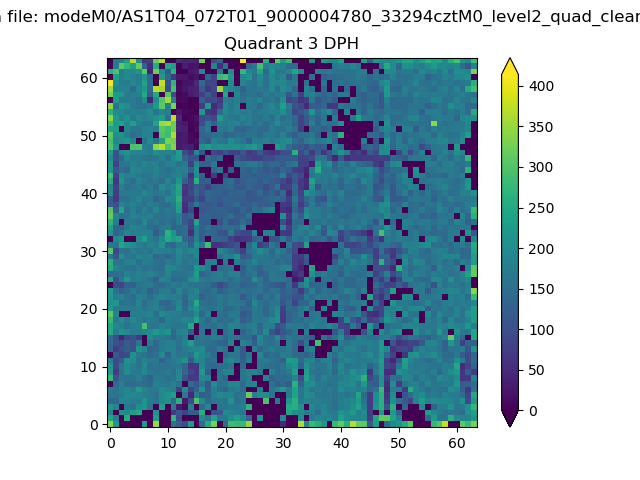

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

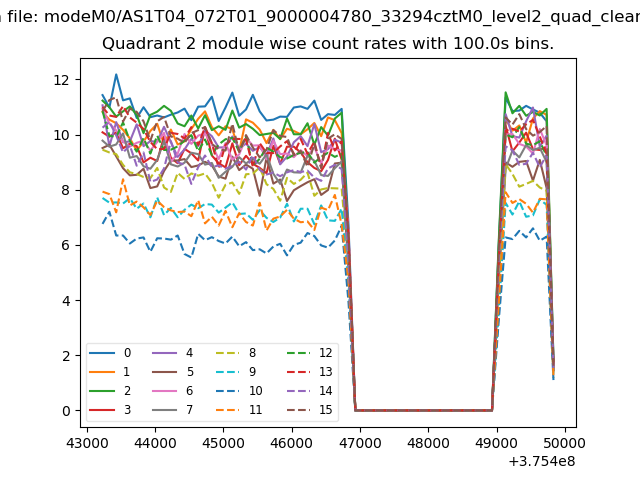

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

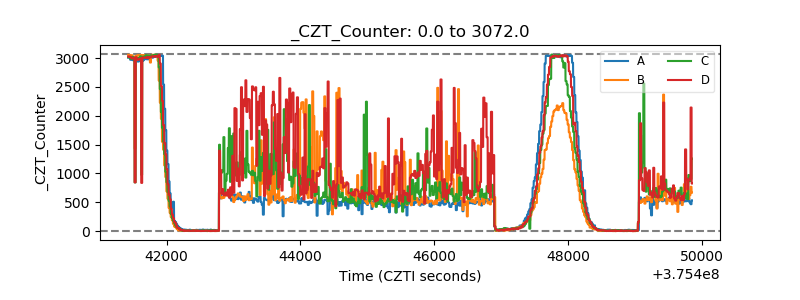

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

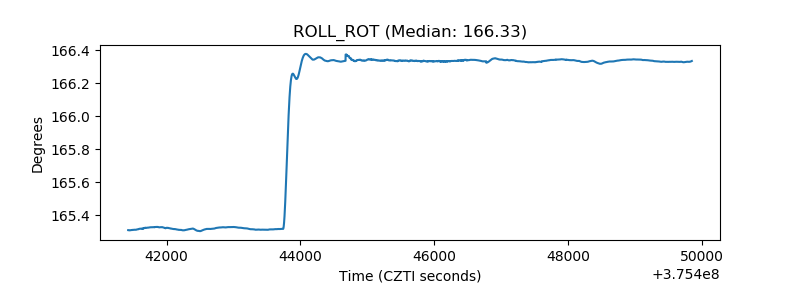

| _ROLL_ROT |  |

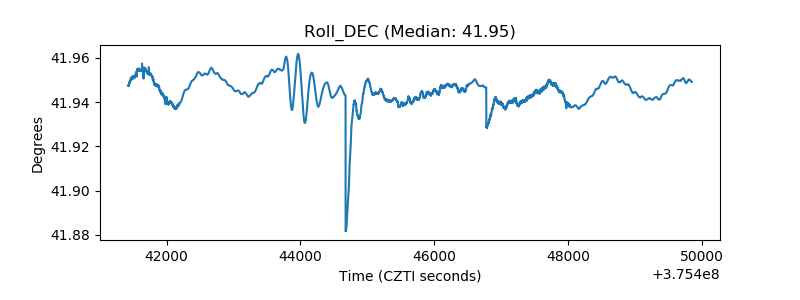

| _Roll_DEC |  |

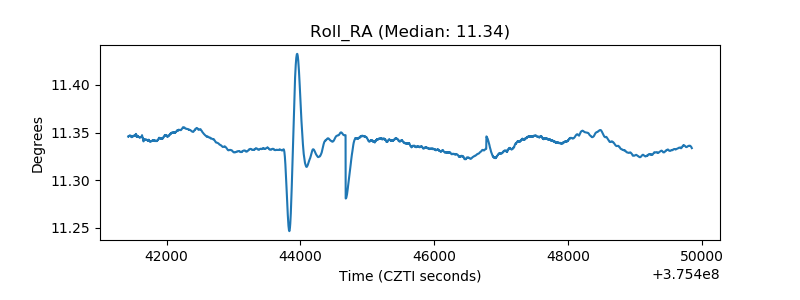

| _Roll_RA |  |

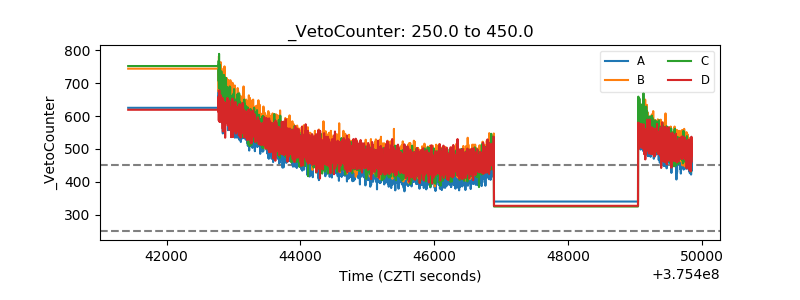

| Veto Counter |  |
