| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_072T01_9000004780_33295cztM0_level2.evt | modeM0/AS1T04_072T01_9000004780_33295cztM0_level2_quad_clean.evt |
| Size (bytes) | 492,364,800 | 95,184,000 |
| Size | 469.6 MB | 90.8 MB |
| Events in quadrant A | 2,606,823 | 663,890 |
| Events in quadrant B | 3,833,896 | 639,545 |
| Events in quadrant C | 3,800,784 | 622,285 |
| Events in quadrant D | 4,330,979 | 605,911 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 102 | 0 |
| B | 0 | 102 | 0 |
| C | 0 | 102 | 0 |
| D | 0 | 102 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10507 | 3 |
| B | 0 | 14563 | 2 |
| C | 0 | 14534 | 2 |
| D | 0 | 16403 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 36 | 0 |
| B | 0 | 36 | 0 |
| C | 0 | 36 | 0 |
| D | 0 | 37 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5002 | 5 | 0.099960% |
| B | 5002 | 368 | 7.357057% |
| C | 5002 | 300 | 5.997601% |
| D | 5002 | 159 | 3.178729% |

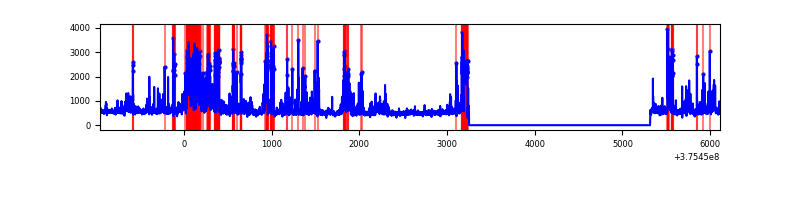

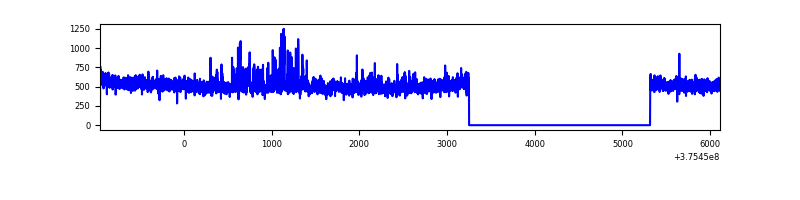

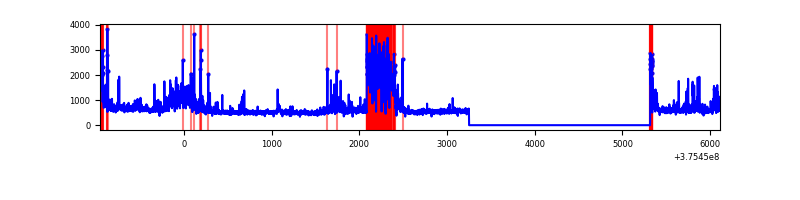

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7066 | 5003 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7066 | 5003 | 250 | 250 | 3.54% | 5.00% |  |
| C | 7066 | 5003 | 261 | 261 | 3.69% | 5.22% |  |
| D | 7066 | 5003 | 143 | 143 | 2.02% | 2.86% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 102170 | 809.04 | 631 | 621 | 125.5 |
| A | 15 | 47 | 55698 | 438.8 | 631 | 621 | 125.5 |
| A | 13 | 6 | 11014 | 82.8 | 631 | 621 | 125.5 |
| B | 5 | 172 | 774816 | 6789.14 | 604 | 590 | 114.0 |
| B | 0 | 219 | 486986 | 4265.18 | 604 | 590 | 114.0 |
| B | 0 | 245 | 76232 | 663.3 | 604 | 590 | 114.0 |
| C | 10 | 49 | 880804 | 6489.64 | 590 | 596 | 135.6 |
| C | 15 | 214 | 216324 | 1590.53 | 590 | 596 | 135.6 |
| C | 0 | 10 | 158245 | 1162.32 | 590 | 596 | 135.6 |
| D | 8 | 195 | 1018009 | 6270.49 | 598 | 588 | 162.3 |
| D | 7 | 223 | 224392 | 1379.33 | 598 | 588 | 162.3 |
| D | 2 | 120 | 201432 | 1237.83 | 598 | 588 | 162.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

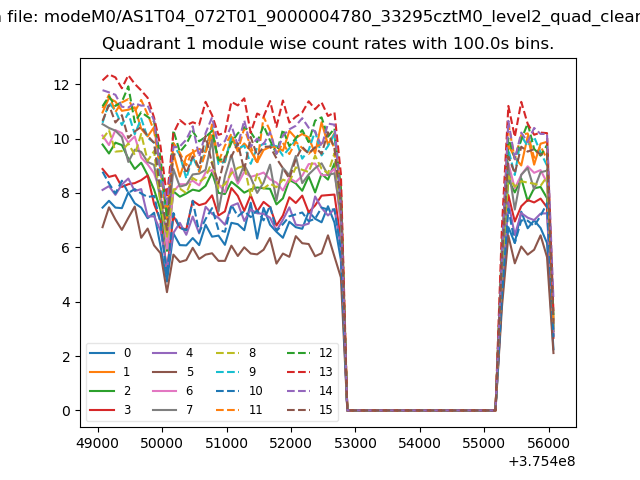

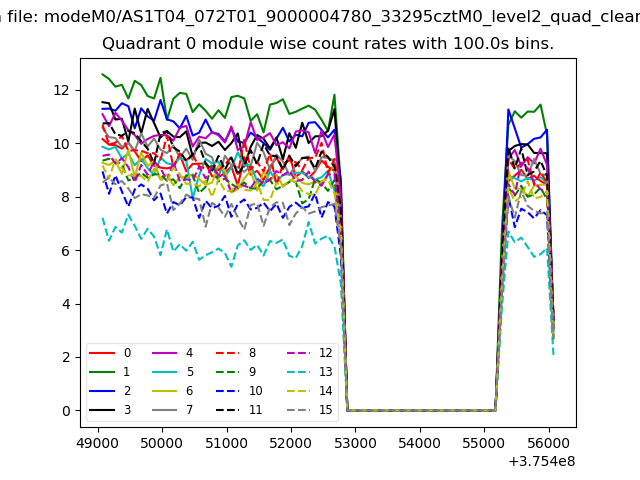

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

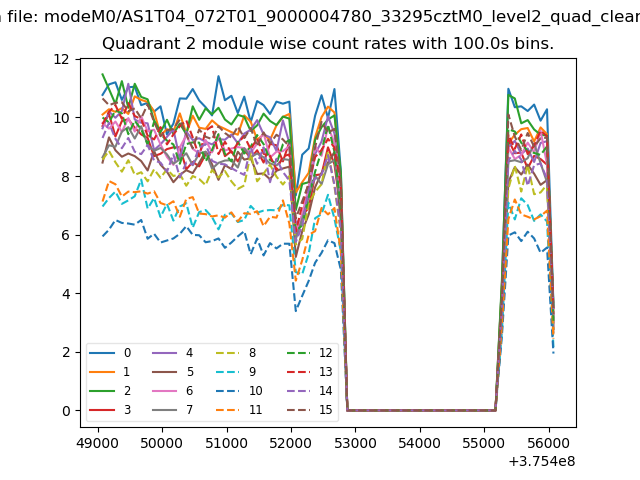

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

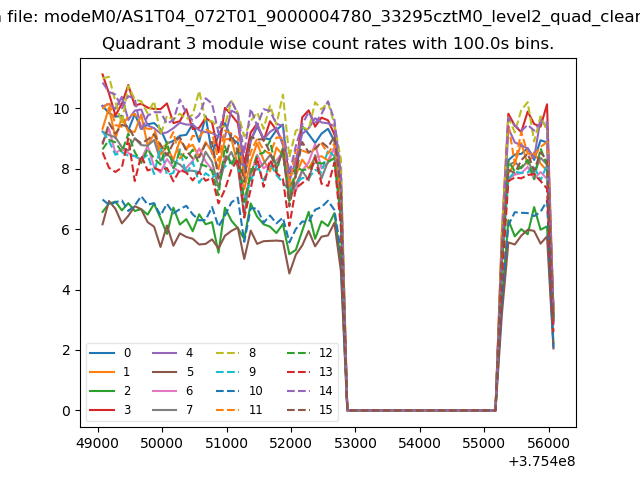

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

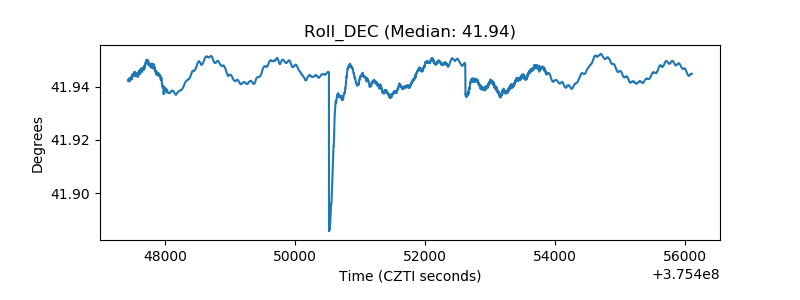

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
