| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_072T01_9000004780_33299cztM0_level2.evt | modeM0/AS1T04_072T01_9000004780_33299cztM0_level2_quad_clean.evt |
| Size (bytes) | 618,166,080 | 75,623,040 |
| Size | 589.5 MB | 72.1 MB |
| Events in quadrant A | 2,730,186 | 497,727 |
| Events in quadrant B | 3,763,205 | 482,199 |
| Events in quadrant C | 3,502,927 | 481,108 |
| Events in quadrant D | 8,323,610 | 413,585 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12066 | 2 |
| B | 0 | 15071 | 1 |
| C | 0 | 14013 | 1 |
| D | 0 | 28941 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 24 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5939 | 10 | 0.168379% |
| B | 5939 | 219 | 3.687489% |
| C | 5939 | 91 | 1.532244% |
| D | 5939 | 1203 | 20.255935% |

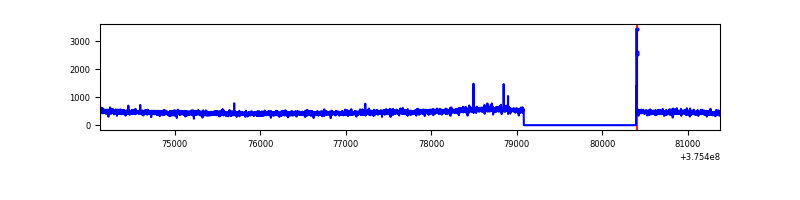

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7252 | 5940 | 3 | 3 | 0.04% | 0.05% |  |
| B | 7252 | 5940 | 151 | 151 | 2.08% | 2.54% |  |
| C | 7252 | 5940 | 73 | 73 | 1.01% | 1.23% |  |
| D | 7252 | 5940 | 1068 | 1068 | 14.73% | 17.98% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 47 | 43158 | 306.81 | 690 | 673 | 138.5 |
| A | 15 | 17 | 11147 | 75.64 | 690 | 673 | 138.5 |
| A | 13 | 254 | 9083 | 60.73 | 690 | 673 | 138.5 |
| B | 5 | 172 | 757629 | 5859.33 | 678 | 659 | 129.2 |
| B | 0 | 219 | 70965 | 544.2 | 678 | 659 | 129.2 |
| B | 0 | 197 | 55859 | 427.27 | 678 | 659 | 129.2 |
| C | 1 | 23 | 296386 | 1911.08 | 667 | 671 | 154.7 |
| C | 15 | 214 | 273737 | 1764.71 | 667 | 671 | 154.7 |
| C | 15 | 208 | 143553 | 923.38 | 667 | 671 | 154.7 |
| D | 8 | 195 | 3118636 | 19644.49 | 622 | 607 | 158.7 |
| D | 12 | 17 | 1131406 | 7124.36 | 622 | 607 | 158.7 |
| D | 12 | 6 | 595916 | 3750.62 | 622 | 607 | 158.7 |

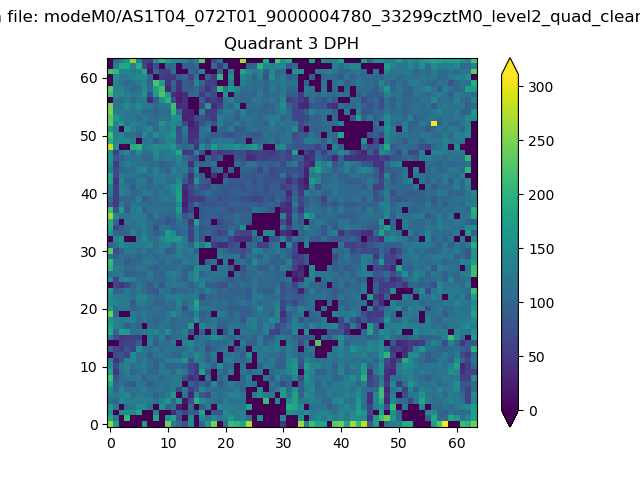

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

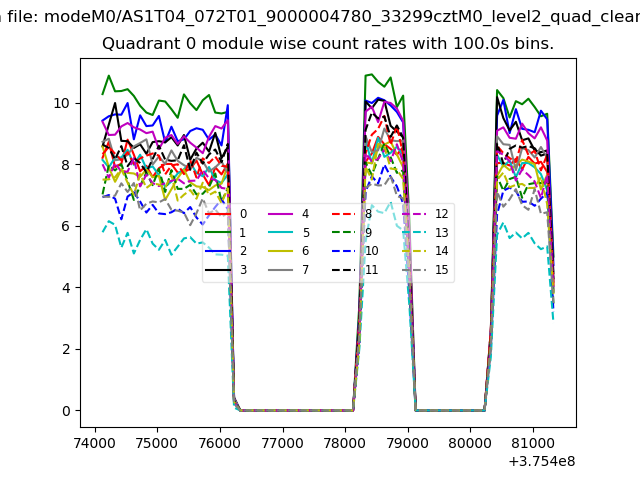

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

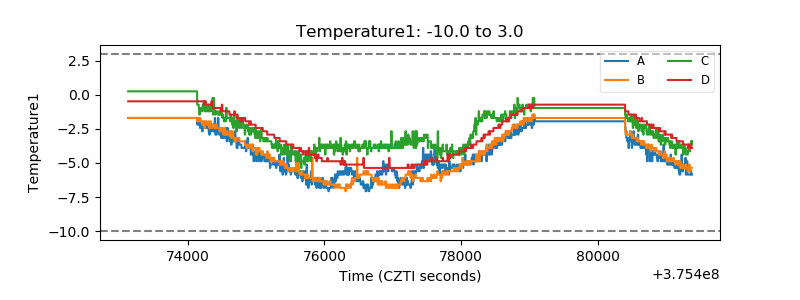

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

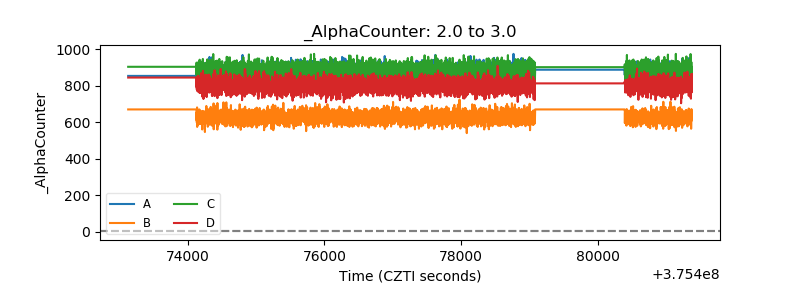

| Alpha Counter |  |

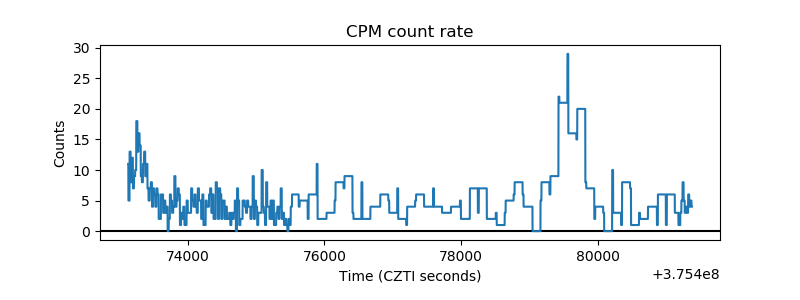

| _CPM_Rate |  |

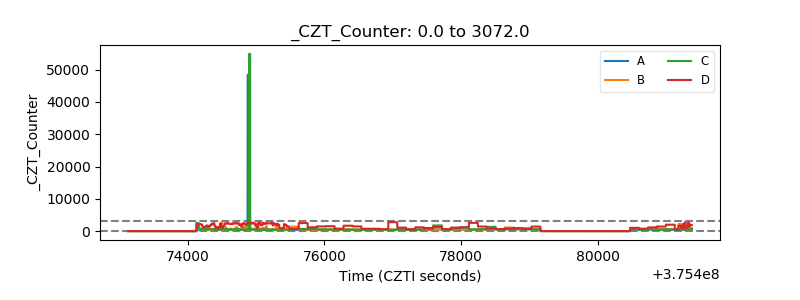

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

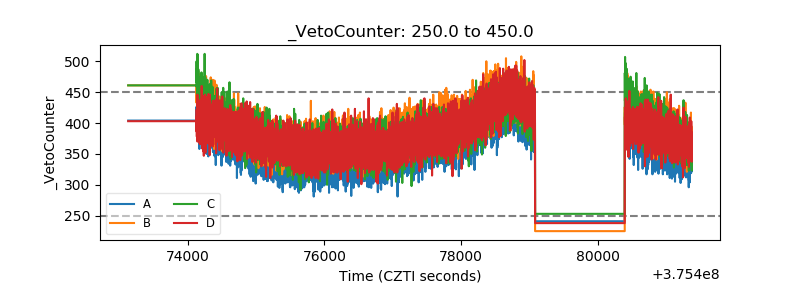

| Veto Counter |  |
