| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_072T01_9000004780_33309cztM0_level2.evt | modeM0/AS1T04_072T01_9000004780_33309cztM0_level2_quad_clean.evt |
| Size (bytes) | 495,714,240 | 96,442,560 |
| Size | 472.7 MB | 92.0 MB |
| Events in quadrant A | 2,599,723 | 675,874 |
| Events in quadrant B | 3,701,466 | 662,534 |
| Events in quadrant C | 4,804,404 | 612,757 |
| Events in quadrant D | 3,577,039 | 627,181 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 98 | 0 |
| B | 0 | 98 | 0 |
| C | 0 | 98 | 0 |
| D | 0 | 98 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10366 | 2 |
| B | 0 | 14179 | 1 |
| C | 0 | 17661 | 1 |
| D | 0 | 14421 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 34 | 0 |
| B | 0 | 34 | 0 |
| C | 0 | 34 | 0 |
| D | 0 | 35 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4883 | 14 | 0.286709% |
| B | 4883 | 203 | 4.157280% |
| C | 4883 | 474 | 9.707147% |
| D | 4883 | 48 | 0.983002% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

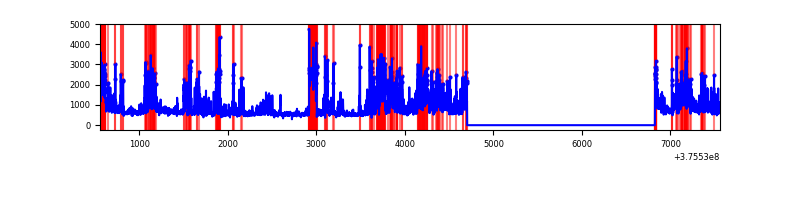

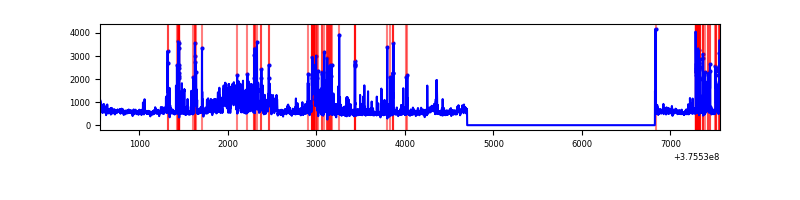

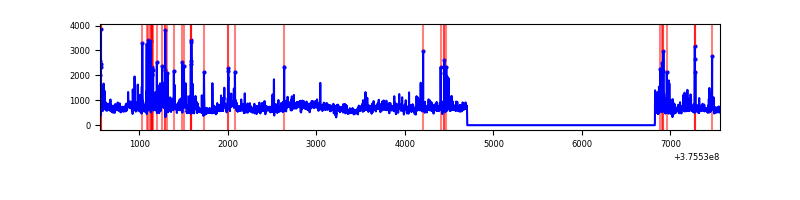

| A | 7005 | 4884 | 14 | 14 | 0.20% | 0.29% |  |
| B | 7005 | 4884 | 124 | 124 | 1.77% | 2.54% |  |
| C | 7005 | 4884 | 396 | 396 | 5.65% | 8.11% |  |
| D | 7005 | 4884 | 47 | 47 | 0.67% | 0.96% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 47 | 85827 | 670.14 | 637 | 626 | 127.1 |
| A | 15 | 169 | 38897 | 301.02 | 637 | 626 | 127.1 |
| A | 13 | 6 | 11610 | 86.39 | 637 | 626 | 127.1 |
| B | 5 | 172 | 741946 | 6410.0 | 617 | 603 | 115.7 |
| B | 0 | 219 | 360006 | 3107.57 | 617 | 603 | 115.7 |
| B | 4 | 170 | 33340 | 283.06 | 617 | 603 | 115.7 |
| C | 10 | 49 | 1522499 | 11436.92 | 579 | 585 | 133.1 |
| C | 1 | 23 | 282338 | 2117.32 | 579 | 585 | 133.1 |
| C | 14 | 254 | 226122 | 1694.87 | 579 | 585 | 133.1 |
| D | 8 | 195 | 766962 | 4796.0 | 606 | 594 | 159.8 |
| D | 2 | 250 | 142142 | 885.82 | 606 | 594 | 159.8 |
| D | 12 | 6 | 69180 | 429.22 | 606 | 594 | 159.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

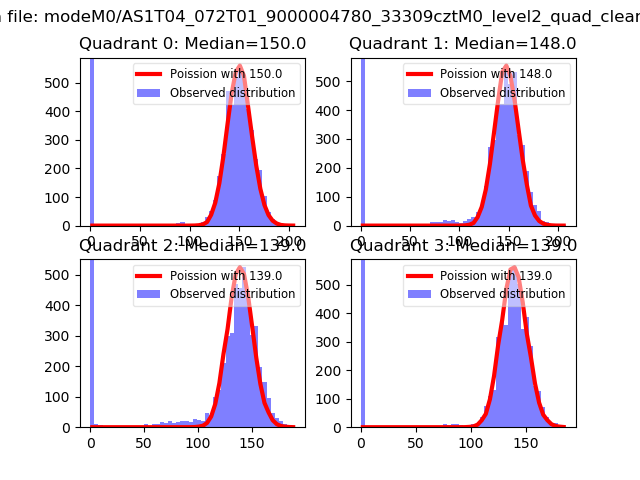

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

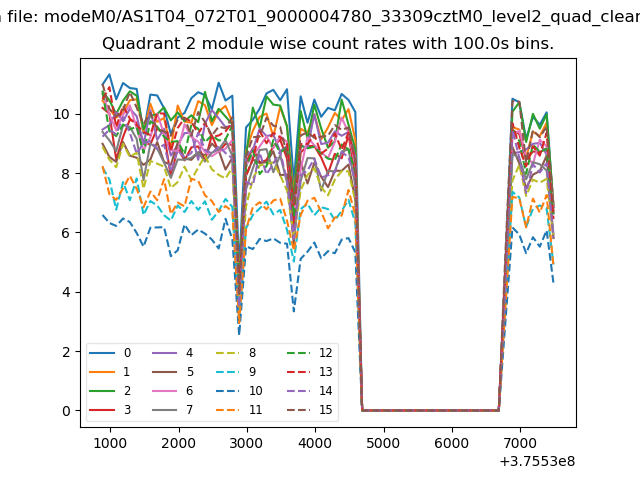

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

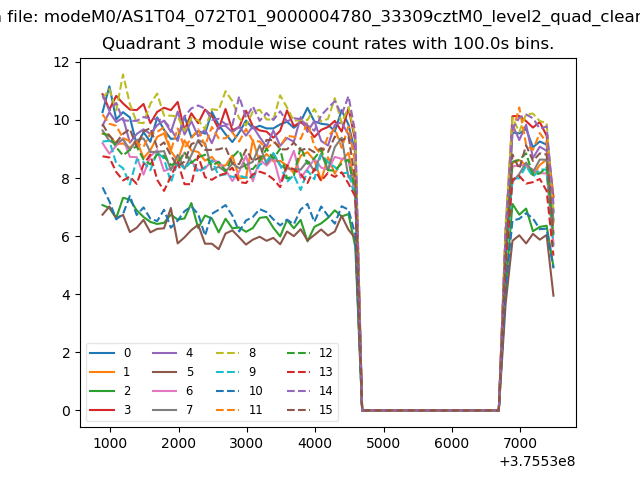

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

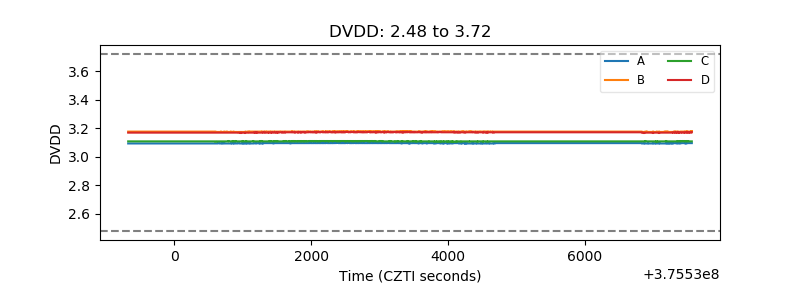

| D_VDD |  |

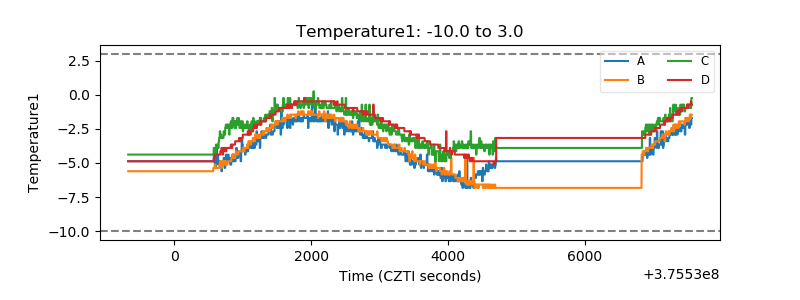

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
