| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_072T01_9000004780_33313cztM0_level2.evt | modeM0/AS1T04_072T01_9000004780_33313cztM0_level2_quad_clean.evt |
| Size (bytes) | 591,762,240 | 76,881,600 |
| Size | 564.3 MB | 73.3 MB |
| Events in quadrant A | 3,760,514 | 497,269 |
| Events in quadrant B | 3,338,522 | 496,185 |
| Events in quadrant C | 5,669,978 | 446,142 |
| Events in quadrant D | 4,748,570 | 470,771 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15578 | 3 |
| B | 0 | 13718 | 2 |
| C | 0 | 20701 | 2 |
| D | 0 | 18204 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 20 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5972 | 97 | 1.624246% |
| B | 5972 | 74 | 1.239116% |
| C | 5972 | 839 | 14.048895% |
| D | 5972 | 285 | 4.772271% |

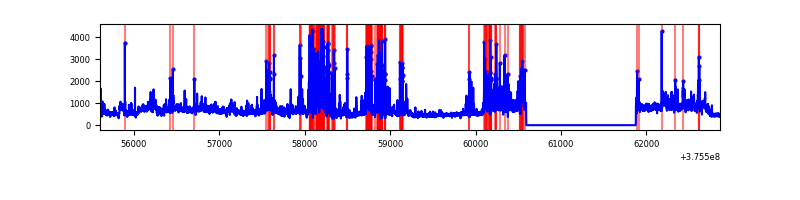

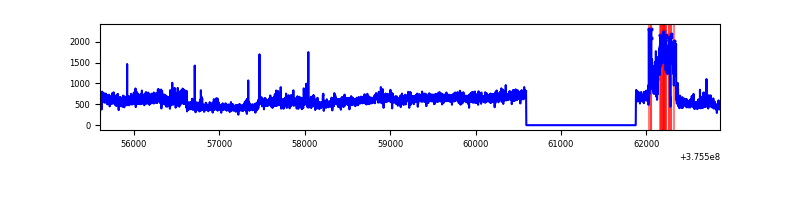

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7255 | 5973 | 20 | 20 | 0.28% | 0.33% |  |
| B | 7255 | 5972 | 51 | 51 | 0.70% | 0.85% |  |
| C | 7255 | 5972 | 778 | 778 | 10.72% | 13.03% |  |
| D | 7255 | 5973 | 222 | 222 | 3.06% | 3.72% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 1023515 | 7240.01 | 696 | 681 | 141.3 |
| A | 15 | 47 | 30349 | 210.0 | 696 | 681 | 141.3 |
| A | 13 | 254 | 9529 | 62.63 | 696 | 681 | 141.3 |
| B | 0 | 219 | 318088 | 2422.23 | 690 | 670 | 131.0 |
| B | 5 | 172 | 210919 | 1604.42 | 690 | 670 | 131.0 |
| B | 0 | 190 | 19290 | 142.09 | 690 | 670 | 131.0 |
| C | 1 | 23 | 2401525 | 15978.61 | 648 | 651 | 150.3 |
| C | 15 | 214 | 265248 | 1760.98 | 648 | 651 | 150.3 |
| C | 10 | 49 | 181526 | 1203.78 | 648 | 651 | 150.3 |
| D | 8 | 195 | 932449 | 5480.17 | 667 | 652 | 170.0 |
| D | 2 | 250 | 560106 | 3290.31 | 667 | 652 | 170.0 |
| D | 12 | 6 | 345526 | 2028.3 | 667 | 652 | 170.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

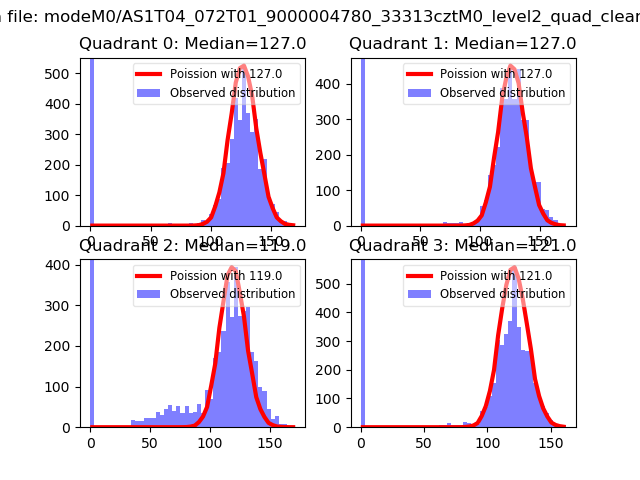

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

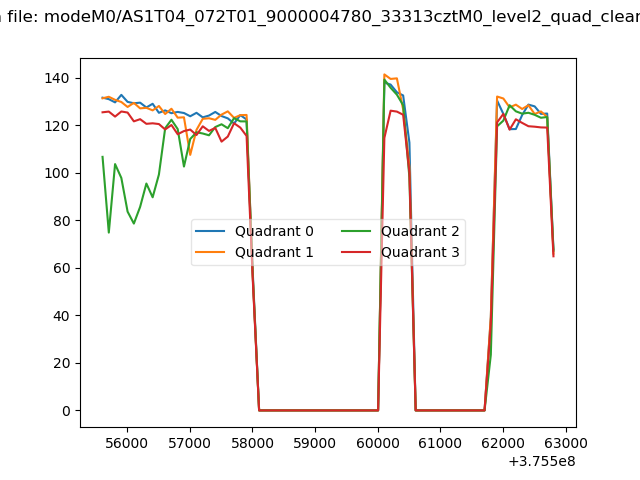

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

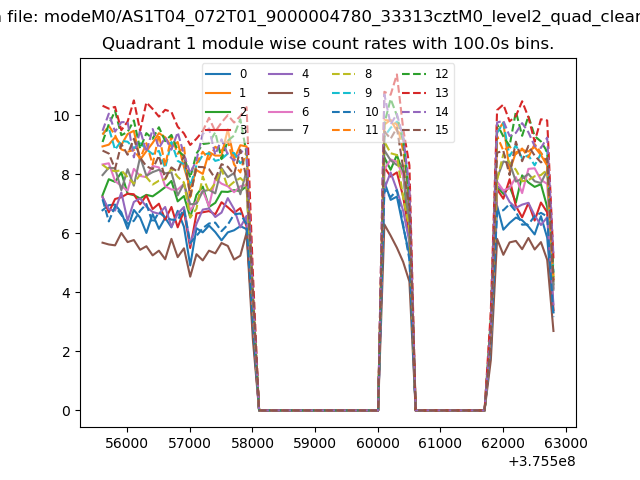

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

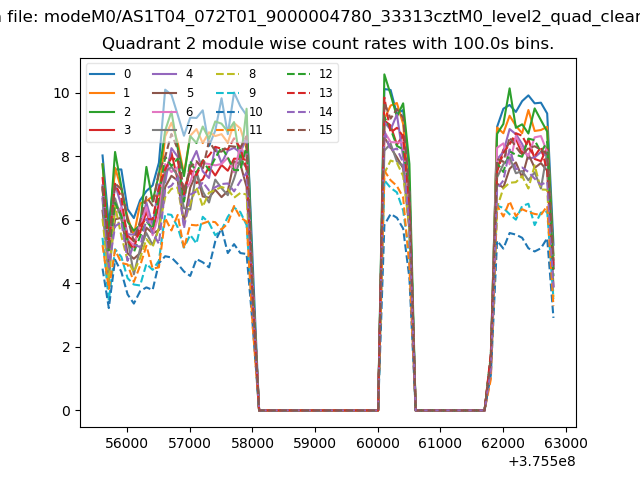

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

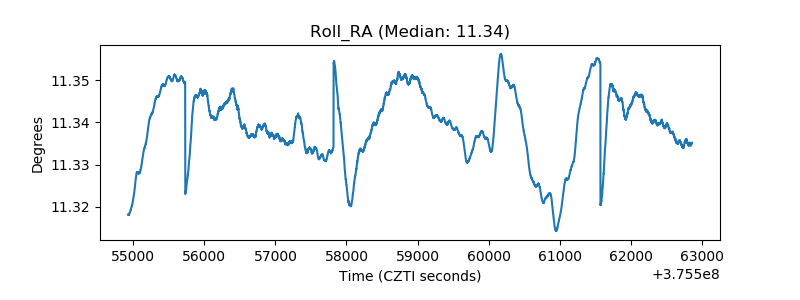

| _Roll_RA |  |

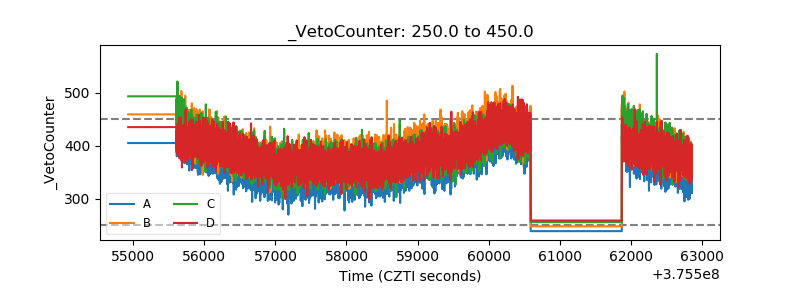

| Veto Counter |  |
