| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_071T01_9000004782_33322cztM0_level2.evt | modeM0/AS1T04_071T01_9000004782_33322cztM0_level2_quad_clean.evt |
| Size (bytes) | 576,086,400 | 99,086,400 |
| Size | 549.4 MB | 94.5 MB |
| Events in quadrant A | 2,878,270 | 713,474 |
| Events in quadrant B | 4,533,981 | 657,044 |
| Events in quadrant C | 5,008,287 | 641,509 |
| Events in quadrant D | 4,691,498 | 640,775 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11537 | 3 |
| B | 0 | 16734 | 2 |
| C | 0 | 18302 | 2 |
| D | 0 | 17368 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 100 | 0 |
| B | 0 | 100 | 0 |
| C | 0 | 100 | 0 |
| D | 0 | 100 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28 | 0 |
| B | 0 | 28 | 0 |
| C | 0 | 28 | 0 |
| D | 0 | 29 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4960 | 9 | 0.181452% |
| B | 4960 | 801 | 16.149194% |
| C | 4960 | 506 | 10.201613% |
| D | 4960 | 133 | 2.681452% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7053 | 4961 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7053 | 4961 | 425 | 425 | 6.03% | 8.57% |  |
| C | 7053 | 4961 | 429 | 429 | 6.08% | 8.65% |  |
| D | 7053 | 4961 | 122 | 122 | 1.73% | 2.46% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 240862 | 1794.65 | 676 | 667 | 133.8 |
| A | 15 | 17 | 23799 | 172.83 | 676 | 667 | 133.8 |
| A | 13 | 254 | 7055 | 47.73 | 676 | 667 | 133.8 |
| B | 0 | 219 | 986843 | 8614.55 | 620 | 607 | 114.5 |
| B | 5 | 172 | 830763 | 7251.23 | 620 | 607 | 114.5 |
| B | 5 | 200 | 197014 | 1715.57 | 620 | 607 | 114.5 |
| C | 1 | 23 | 1175248 | 8468.08 | 606 | 612 | 138.7 |
| C | 10 | 49 | 510263 | 3674.13 | 606 | 612 | 138.7 |
| C | 15 | 208 | 319338 | 2297.73 | 606 | 612 | 138.7 |
| D | 8 | 195 | 1582943 | 9270.7 | 631 | 618 | 170.7 |
| D | 2 | 249 | 246181 | 1438.73 | 631 | 618 | 170.7 |
| D | 2 | 250 | 236592 | 1382.55 | 631 | 618 | 170.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

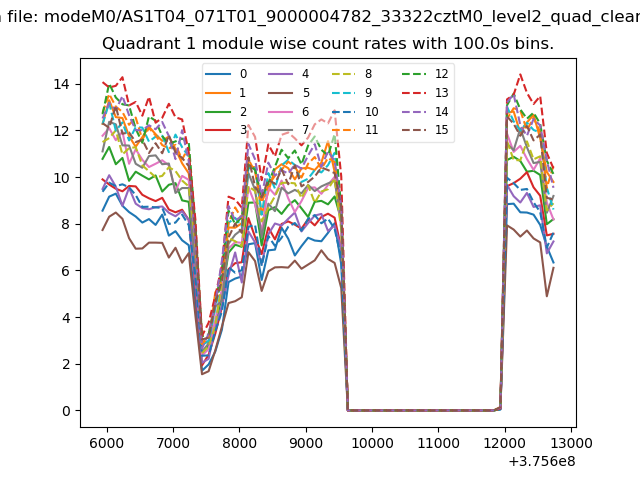

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

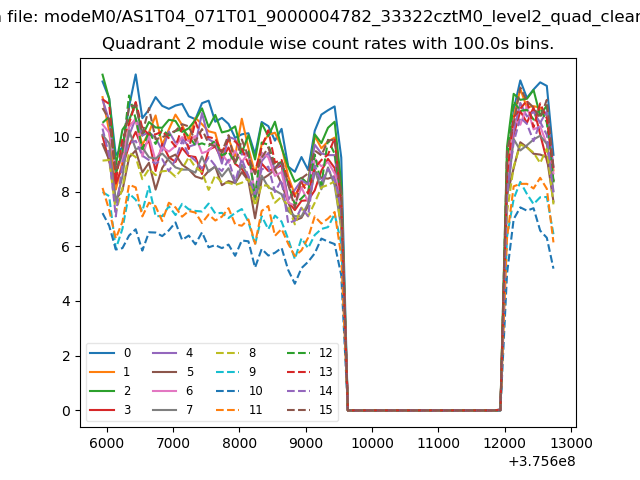

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

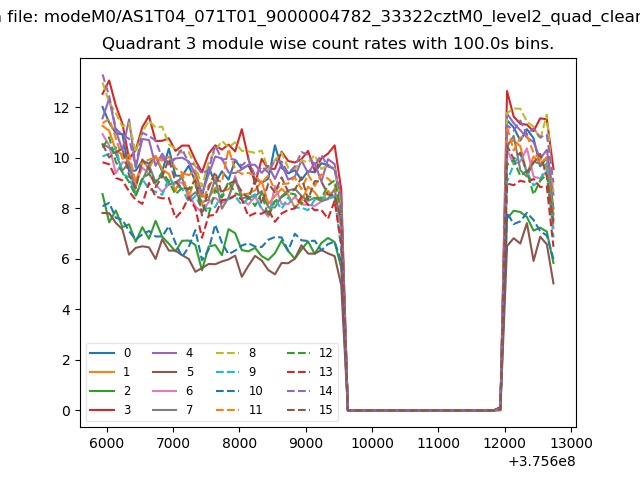

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

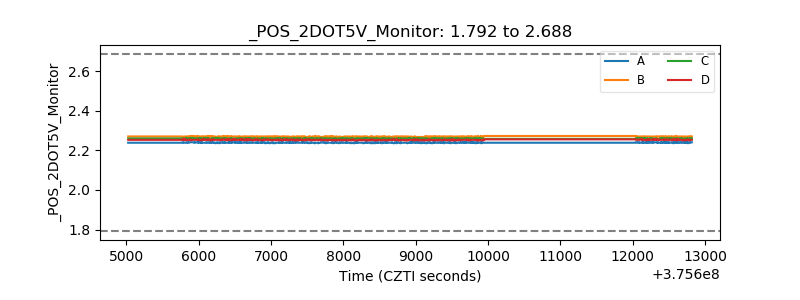

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
