| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_071T01_9000004782_33327cztM0_level2.evt | modeM0/AS1T04_071T01_9000004782_33327cztM0_level2_quad_clean.evt |
| Size (bytes) | 650,646,720 | 72,679,680 |
| Size | 620.5 MB | 69.3 MB |
| Events in quadrant A | 4,352,440 | 456,438 |
| Events in quadrant B | 4,700,769 | 435,593 |
| Events in quadrant C | 4,781,619 | 453,233 |
| Events in quadrant D | 5,472,410 | 443,453 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16787 | 3 |
| B | 0 | 17768 | 2 |
| C | 0 | 18072 | 2 |
| D | 0 | 20361 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 18 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5884 | 684 | 11.624745% |
| B | 5884 | 676 | 11.488783% |
| C | 5884 | 268 | 4.554725% |
| D | 5884 | 339 | 5.761387% |

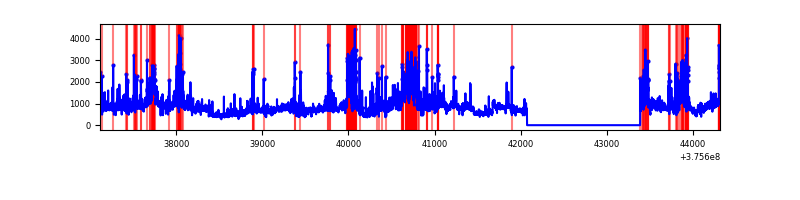

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7197 | 5885 | 380 | 380 | 5.28% | 6.46% |  |
| B | 7197 | 5885 | 555 | 555 | 7.71% | 9.43% |  |
| C | 7197 | 5885 | 239 | 239 | 3.32% | 4.06% |  |
| D | 7196 | 5884 | 288 | 288 | 4.00% | 4.89% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 1763088 | 13285.45 | 662 | 650 | 132.7 |
| A | 12 | 16 | 20330 | 148.35 | 662 | 650 | 132.7 |
| A | 13 | 254 | 8295 | 57.63 | 662 | 650 | 132.7 |
| B | 5 | 172 | 1099328 | 8790.75 | 652 | 635 | 125.0 |
| B | 0 | 219 | 494847 | 3954.24 | 652 | 635 | 125.0 |
| B | 5 | 200 | 422910 | 3378.66 | 652 | 635 | 125.0 |
| C | 10 | 49 | 1274009 | 8257.69 | 660 | 666 | 154.2 |
| C | 1 | 23 | 303189 | 1961.88 | 660 | 666 | 154.2 |
| C | 15 | 214 | 272349 | 1761.88 | 660 | 666 | 154.2 |
| D | 8 | 195 | 1667247 | 9696.83 | 655 | 639 | 171.9 |
| D | 12 | 6 | 419447 | 2436.75 | 655 | 639 | 171.9 |
| D | 2 | 250 | 205536 | 1192.15 | 655 | 639 | 171.9 |

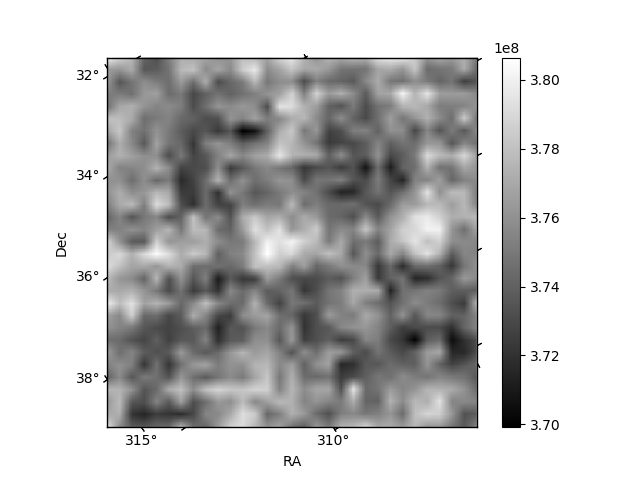

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

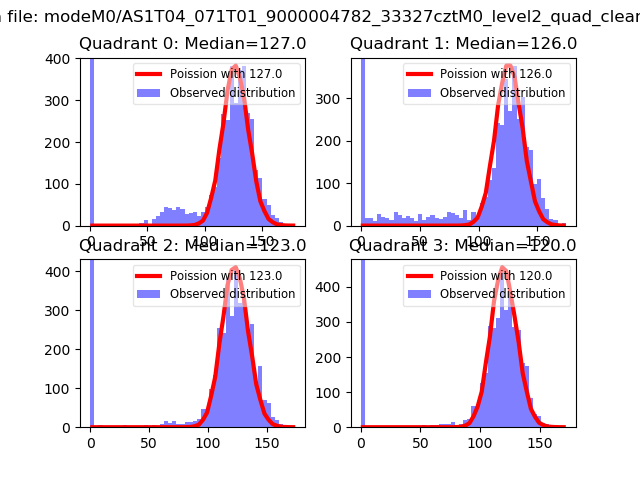

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

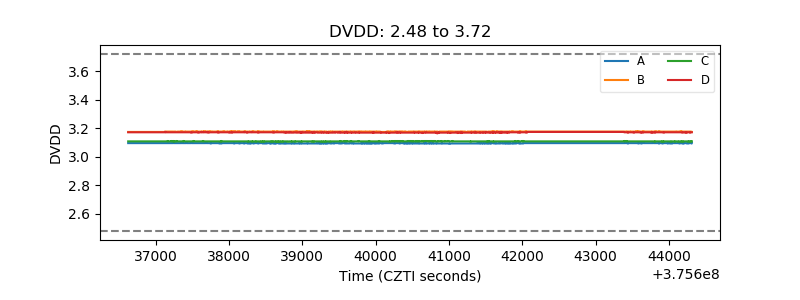

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

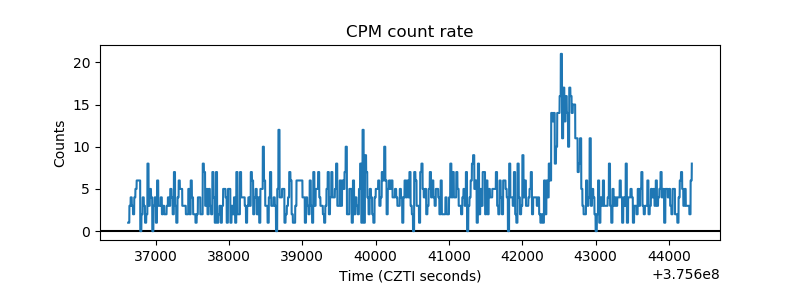

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

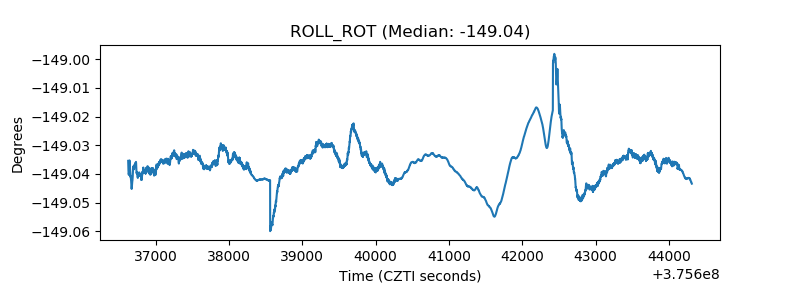

| _ROLL_ROT |  |
| _Roll_DEC |  |

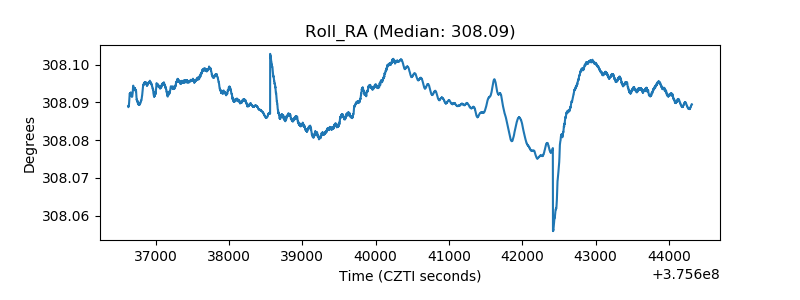

| _Roll_RA |  |

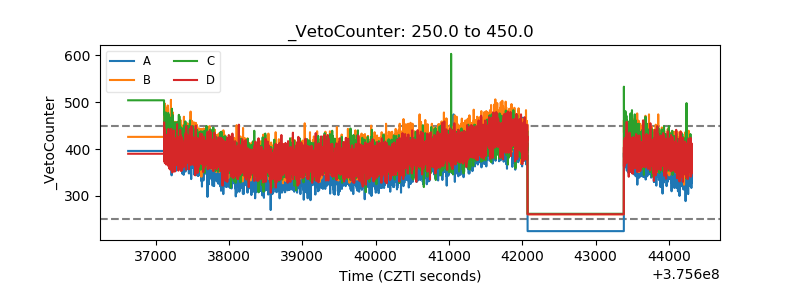

| Veto Counter |  |
