| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_058T15_9000004786_33356cztM0_level2.evt | modeM0/AS1A10_058T15_9000004786_33356cztM0_level2_quad_clean.evt |
| Size (bytes) | 665,657,280 | 73,733,760 |
| Size | 634.8 MB | 70.3 MB |
| Events in quadrant A | 3,480,387 | 476,071 |
| Events in quadrant B | 4,189,484 | 463,911 |
| Events in quadrant C | 3,782,769 | 466,367 |
| Events in quadrant D | 8,305,111 | 410,293 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14104 | 3 |
| B | 0 | 16292 | 2 |
| C | 0 | 15074 | 2 |
| D | 0 | 28928 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 18 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5946 | 68 | 1.143626% |
| B | 5946 | 294 | 4.944501% |
| C | 5946 | 150 | 2.522704% |
| D | 5946 | 1396 | 23.477968% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

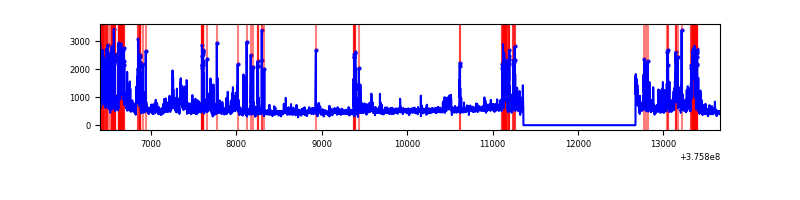

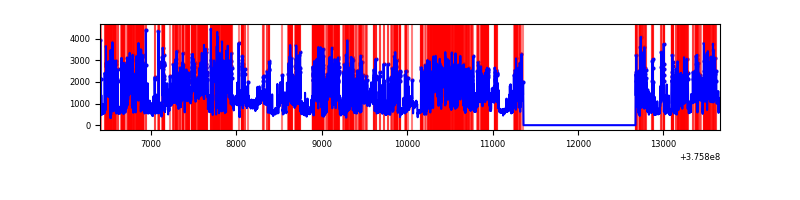

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7259 | 5947 | 50 | 50 | 0.69% | 0.84% |  |
| B | 7259 | 5947 | 206 | 206 | 2.84% | 3.46% |  |
| C | 7259 | 5947 | 97 | 97 | 1.34% | 1.63% |  |
| D | 7259 | 5947 | 1210 | 1210 | 16.67% | 20.35% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 746131 | 5297.04 | 700 | 687 | 140.7 |
| A | 15 | 174 | 10882 | 72.44 | 700 | 687 | 140.7 |
| A | 0 | 254 | 9817 | 64.88 | 700 | 687 | 140.7 |
| B | 5 | 172 | 666510 | 5045.63 | 688 | 670 | 132.0 |
| B | 0 | 219 | 368914 | 2790.49 | 688 | 670 | 132.0 |
| B | 0 | 189 | 133143 | 1003.86 | 688 | 670 | 132.0 |
| C | 1 | 23 | 606416 | 3869.23 | 673 | 679 | 156.6 |
| C | 15 | 214 | 259574 | 1653.73 | 673 | 679 | 156.6 |
| C | 0 | 10 | 203901 | 1298.11 | 673 | 679 | 156.6 |
| D | 8 | 195 | 1755180 | 11123.45 | 612 | 596 | 157.7 |
| D | 2 | 250 | 1365425 | 8652.54 | 612 | 596 | 157.7 |
| D | 14 | 173 | 1329292 | 8423.47 | 612 | 596 | 157.7 |

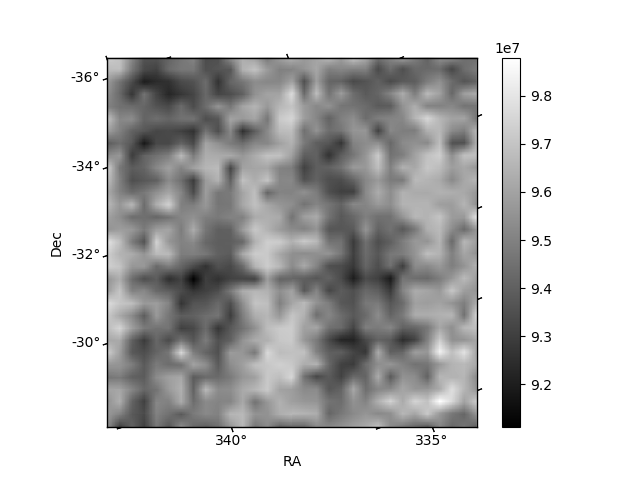

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

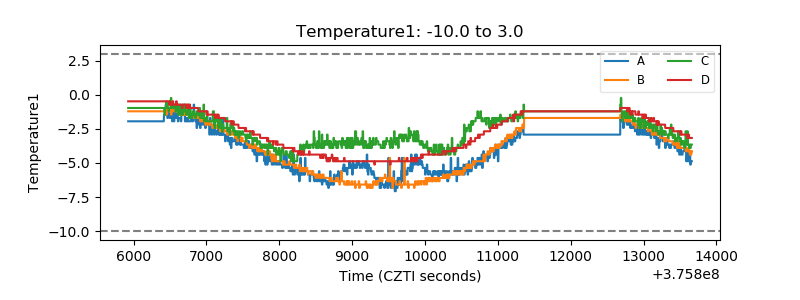

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

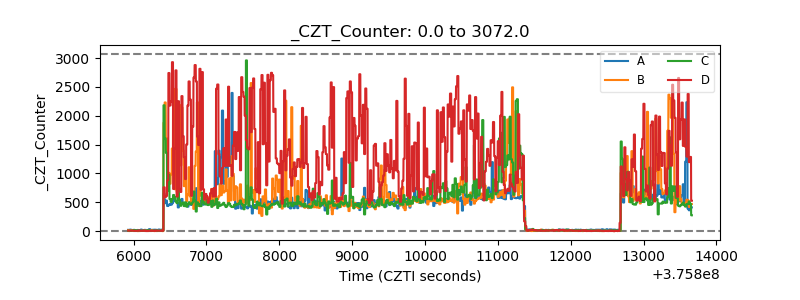

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

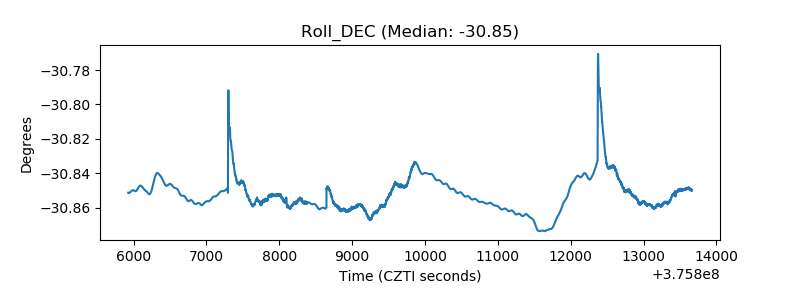

| _Roll_DEC |  |
| _Roll_RA |  |

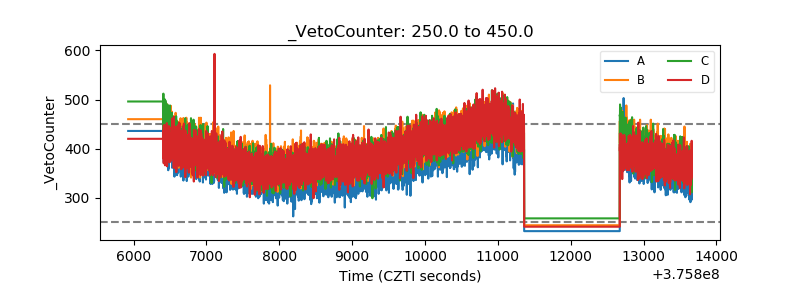

| Veto Counter |  |
