| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_058T15_9000004786_33362cztM0_level2.evt | modeM0/AS1A10_058T15_9000004786_33362cztM0_level2_quad_clean.evt |
| Size (bytes) | 507,260,160 | 54,486,720 |
| Size | 483.8 MB | 52.0 MB |
| Events in quadrant A | 3,886,271 | 315,912 |
| Events in quadrant B | 3,561,824 | 316,765 |
| Events in quadrant C | 3,077,150 | 322,117 |
| Events in quadrant D | 4,460,034 | 305,300 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15153 | 3 |
| B | 0 | 14100 | 2 |
| C | 0 | 12220 | 2 |
| D | 0 | 17016 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 33 | 0 |
| B | 0 | 33 | 0 |
| C | 0 | 33 | 0 |
| D | 0 | 33 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 116 | 0 |
| B | 0 | 116 | 0 |
| C | 0 | 116 | 0 |
| D | 0 | 116 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5562 | 191 | 3.434017% |
| B | 5562 | 227 | 4.081266% |
| C | 5562 | 42 | 0.755124% |
| D | 5562 | 264 | 4.746494% |

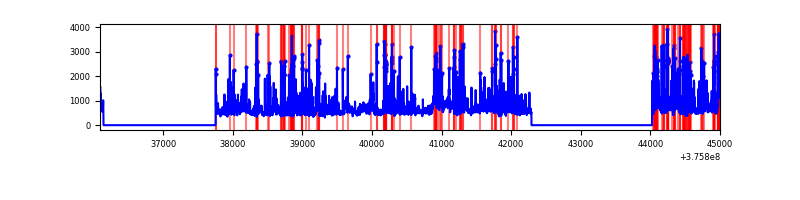

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8907 | 5563 | 136 | 136 | 1.53% | 2.44% |  |
| B | 8907 | 5564 | 75 | 75 | 0.84% | 1.35% |  |
| C | 8907 | 5564 | 28 | 28 | 0.31% | 0.50% |  |
| D | 8907 | 5564 | 222 | 222 | 2.49% | 3.99% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 1264975 | 9440.13 | 670 | 657 | 133.9 |
| A | 8 | 205 | 29212 | 213.21 | 670 | 657 | 133.9 |
| A | 13 | 254 | 7731 | 52.82 | 670 | 657 | 133.9 |
| B | 0 | 219 | 482799 | 3738.76 | 671 | 653 | 129.0 |
| B | 5 | 172 | 208627 | 1612.72 | 671 | 653 | 129.0 |
| B | 5 | 200 | 86115 | 662.71 | 671 | 653 | 129.0 |
| C | 15 | 214 | 242351 | 1593.15 | 657 | 660 | 151.7 |
| C | 0 | 10 | 112212 | 735.32 | 657 | 660 | 151.7 |
| C | 1 | 23 | 76752 | 501.57 | 657 | 660 | 151.7 |
| D | 8 | 195 | 553167 | 3503.46 | 645 | 626 | 157.7 |
| D | 13 | 249 | 489524 | 3099.92 | 645 | 626 | 157.7 |
| D | 2 | 120 | 239656 | 1515.6 | 645 | 626 | 157.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

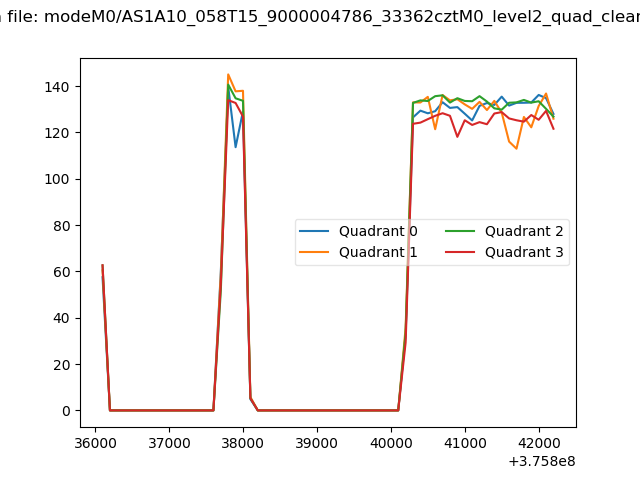

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

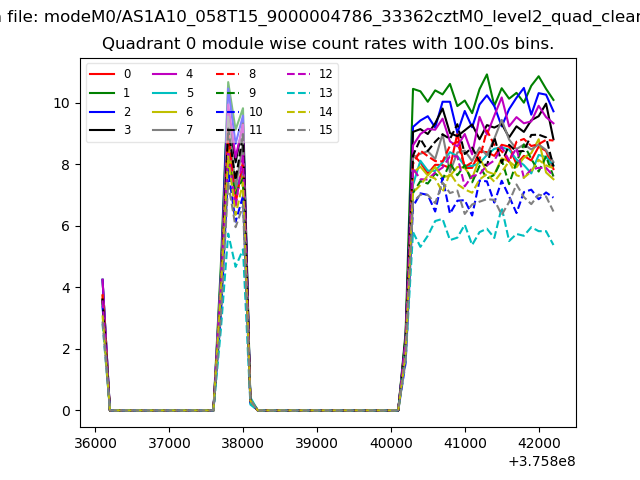

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

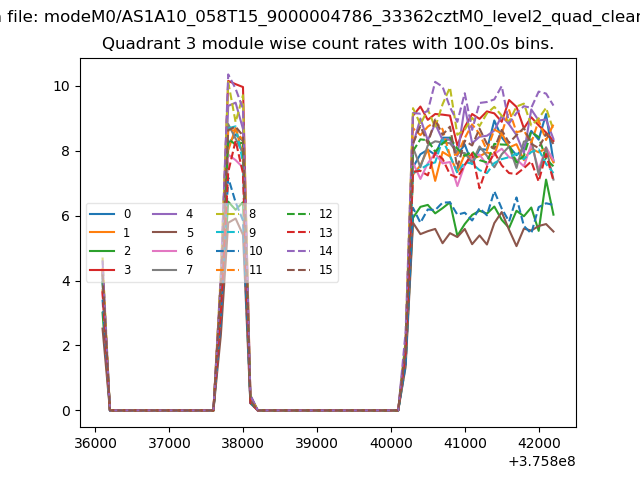

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

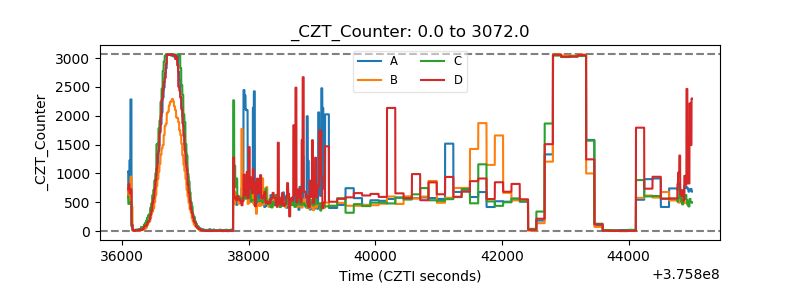

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

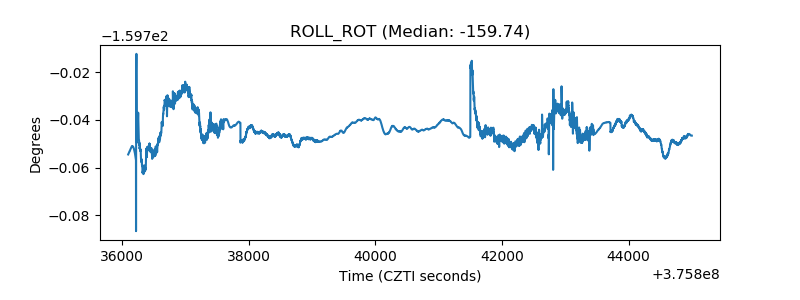

| _ROLL_ROT |  |
| _Roll_DEC |  |

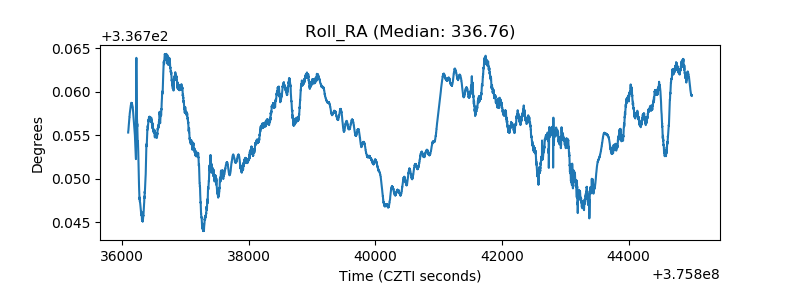

| _Roll_RA |  |

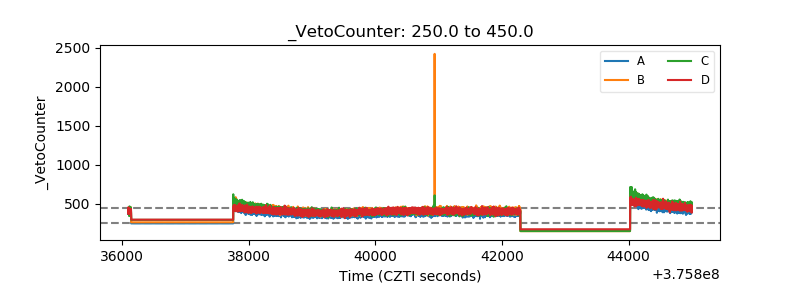

| Veto Counter |  |
