| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_058T15_9000004786_33365cztM0_level2.evt | modeM0/AS1A10_058T15_9000004786_33365cztM0_level2_quad_clean.evt |
| Size (bytes) | 542,162,880 | 68,639,040 |
| Size | 517.0 MB | 65.5 MB |
| Events in quadrant A | 3,152,883 | 439,859 |
| Events in quadrant B | 3,863,180 | 436,043 |
| Events in quadrant C | 3,833,263 | 441,700 |
| Events in quadrant D | 5,232,663 | 410,305 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12533 | 3 |
| B | 0 | 14965 | 2 |
| C | 0 | 14810 | 2 |
| D | 0 | 19183 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 33 | 0 |
| B | 0 | 33 | 0 |
| C | 0 | 33 | 0 |
| D | 0 | 34 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 102 | 0 |
| B | 0 | 102 | 0 |
| C | 0 | 102 | 0 |
| D | 0 | 102 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4994 | 36 | 0.720865% |
| B | 4994 | 228 | 4.565479% |
| C | 4994 | 241 | 4.825791% |
| D | 4994 | 458 | 9.171005% |

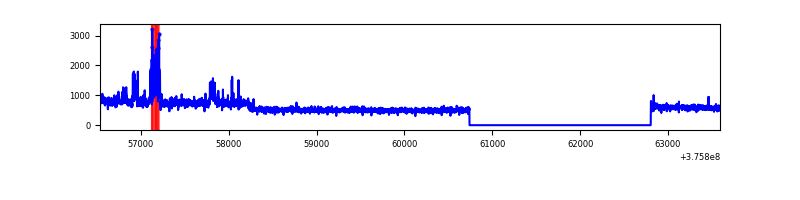

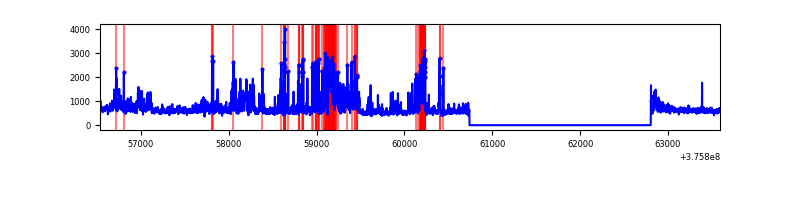

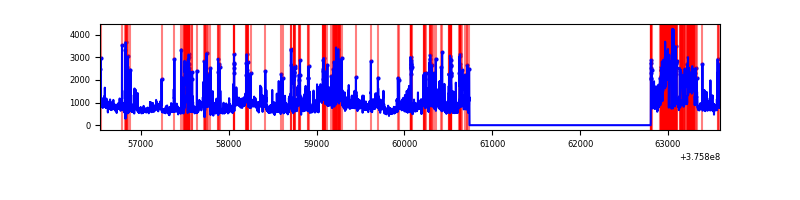

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7058 | 4995 | 13 | 13 | 0.18% | 0.26% |  |
| B | 7058 | 4995 | 130 | 130 | 1.84% | 2.60% |  |
| C | 7058 | 4995 | 195 | 195 | 2.76% | 3.90% |  |
| D | 7058 | 4995 | 420 | 420 | 5.95% | 8.41% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 499228 | 3703.93 | 685 | 675 | 134.6 |
| A | 13 | 254 | 6871 | 46.03 | 685 | 675 | 134.6 |
| A | 3 | 137 | 5888 | 38.73 | 685 | 675 | 134.6 |
| B | 0 | 219 | 589090 | 4730.53 | 675 | 663 | 124.4 |
| B | 5 | 172 | 382206 | 3067.33 | 675 | 663 | 124.4 |
| B | 5 | 200 | 97588 | 779.21 | 675 | 663 | 124.4 |
| C | 2 | 16 | 528467 | 3590.38 | 654 | 662 | 147.0 |
| C | 1 | 23 | 272726 | 1850.71 | 654 | 662 | 147.0 |
| C | 15 | 214 | 217459 | 1474.76 | 654 | 662 | 147.0 |
| D | 2 | 250 | 835222 | 5308.83 | 646 | 631 | 157.2 |
| D | 8 | 195 | 812626 | 5165.1 | 646 | 631 | 157.2 |
| D | 1 | 52 | 611734 | 3887.23 | 646 | 631 | 157.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

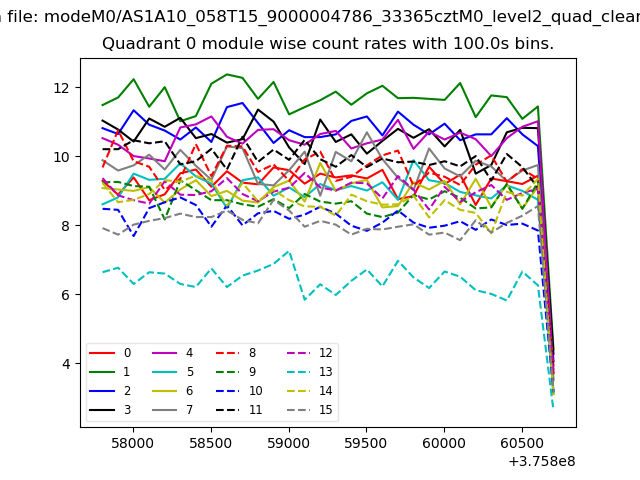

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

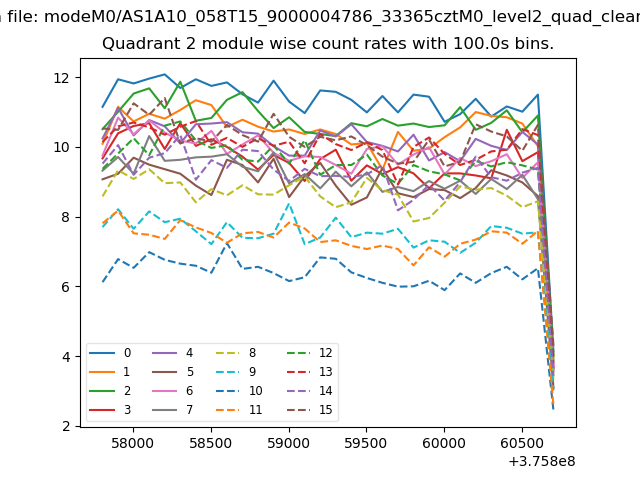

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

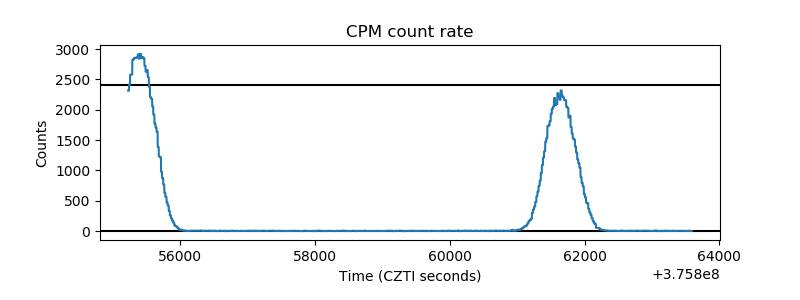

| _CPM_Rate |  |

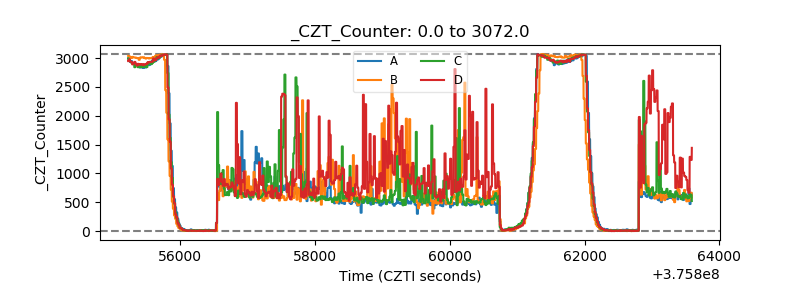

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

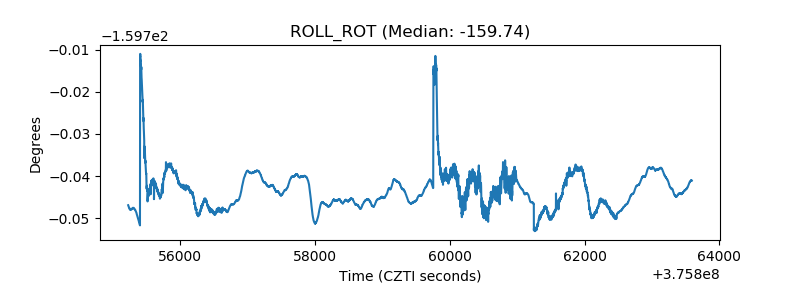

| _ROLL_ROT |  |
