| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_058T15_9000004786_33367cztM0_level2.evt | modeM0/AS1A10_058T15_9000004786_33367cztM0_level2_quad_clean.evt |
| Size (bytes) | 538,295,040 | 93,444,480 |
| Size | 513.4 MB | 89.1 MB |
| Events in quadrant A | 2,471,133 | 653,759 |
| Events in quadrant B | 4,332,361 | 610,108 |
| Events in quadrant C | 3,397,270 | 634,530 |
| Events in quadrant D | 5,768,527 | 585,951 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10164 | 3 |
| B | 0 | 16194 | 2 |
| C | 0 | 13108 | 2 |
| D | 0 | 20604 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 33 | 0 |
| B | 0 | 33 | 0 |
| C | 0 | 33 | 0 |
| D | 0 | 34 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 102 | 0 |
| B | 0 | 102 | 0 |
| C | 0 | 102 | 0 |
| D | 0 | 102 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4914 | 6 | 0.122100% |
| B | 4914 | 536 | 10.907611% |
| C | 4914 | 231 | 4.700855% |
| D | 4914 | 712 | 14.489214% |

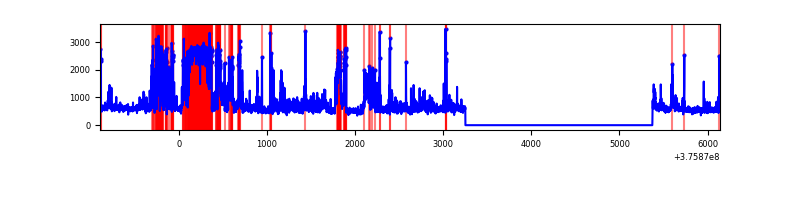

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7037 | 4915 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7037 | 4915 | 437 | 437 | 6.21% | 8.89% |  |
| C | 7037 | 4915 | 205 | 205 | 2.91% | 4.17% |  |
| D | 7037 | 4914 | 667 | 667 | 9.48% | 13.57% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 7388 | 53.41 | 635 | 626 | 126.6 |
| A | 5 | 168 | 6158 | 43.69 | 635 | 626 | 126.6 |
| A | 3 | 137 | 5673 | 39.86 | 635 | 626 | 126.6 |
| B | 0 | 199 | 746082 | 6651.81 | 594 | 583 | 112.1 |
| B | 5 | 172 | 413772 | 3686.73 | 594 | 583 | 112.1 |
| B | 0 | 219 | 320987 | 2858.84 | 594 | 583 | 112.1 |
| C | 15 | 208 | 666616 | 4901.7 | 596 | 604 | 135.9 |
| C | 15 | 214 | 213857 | 1569.49 | 596 | 604 | 135.9 |
| C | 0 | 10 | 142155 | 1041.78 | 596 | 604 | 135.9 |
| D | 8 | 195 | 1187551 | 7672.0 | 580 | 567 | 154.7 |
| D | 1 | 52 | 672508 | 4343.05 | 580 | 567 | 154.7 |
| D | 2 | 250 | 644647 | 4162.97 | 580 | 567 | 154.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

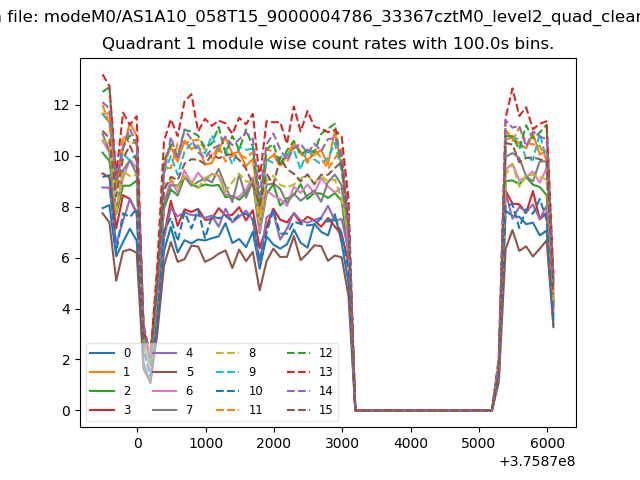

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

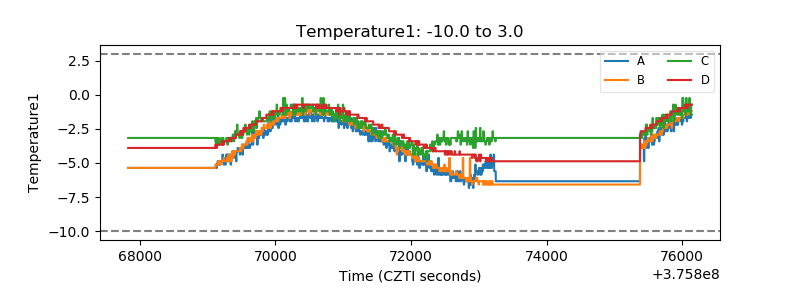

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

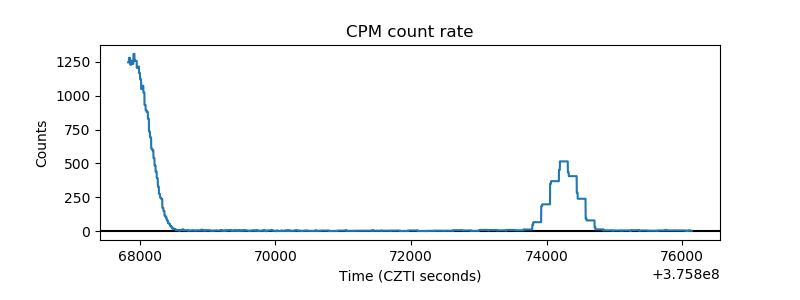

| _CPM_Rate |  |

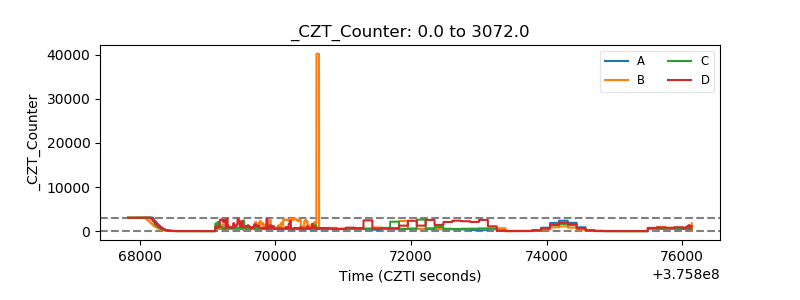

| CZT Counter |  |

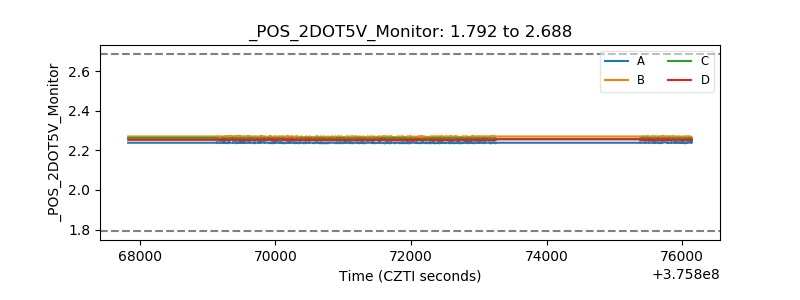

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

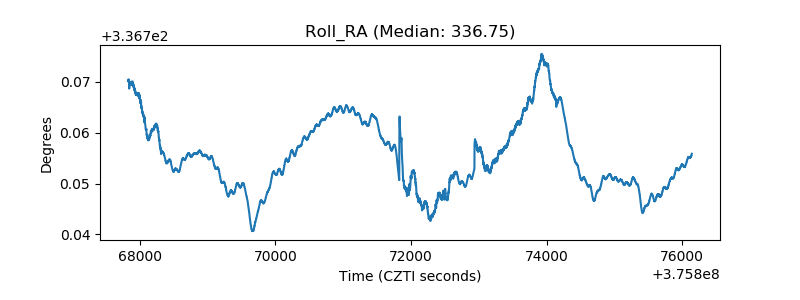

| _Roll_RA |  |

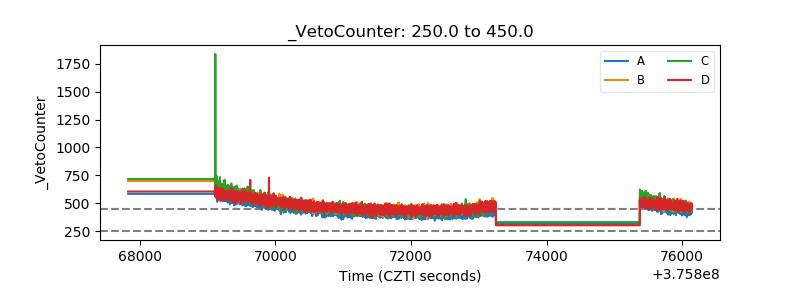

| Veto Counter |  |
