| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_090T11_9000004784_33338cztM0_level2.evt | modeM0/AS1A10_090T11_9000004784_33338cztM0_level2_quad_clean.evt |
| Size (bytes) | 558,005,760 | 92,206,080 |
| Size | 532.2 MB | 87.9 MB |
| Events in quadrant A | 2,535,876 | 643,144 |
| Events in quadrant B | 3,959,517 | 621,001 |
| Events in quadrant C | 3,467,724 | 624,707 |
| Events in quadrant D | 6,599,750 | 554,082 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10410 | 3 |
| B | 0 | 15084 | 2 |
| C | 0 | 13501 | 2 |
| D | 0 | 23206 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30 | 0 |
| B | 0 | 30 | 0 |
| C | 0 | 30 | 0 |
| D | 0 | 31 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 102 | 0 |
| B | 0 | 102 | 0 |
| C | 0 | 102 | 0 |
| D | 0 | 102 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4976 | 7 | 0.140675% |
| B | 4976 | 350 | 7.033762% |
| C | 4976 | 134 | 2.692926% |
| D | 4976 | 829 | 16.659968% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7099 | 4977 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7099 | 4977 | 220 | 220 | 3.10% | 4.42% |  |
| C | 7099 | 4977 | 132 | 132 | 1.86% | 2.65% |  |
| D | 7099 | 4977 | 824 | 824 | 11.61% | 16.56% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 254 | 22326 | 167.51 | 646 | 635 | 129.5 |
| A | 13 | 6 | 8571 | 61.28 | 646 | 635 | 129.5 |
| A | 15 | 169 | 8365 | 59.69 | 646 | 635 | 129.5 |
| B | 0 | 219 | 719838 | 6139.47 | 621 | 609 | 117.1 |
| B | 5 | 172 | 495167 | 4221.64 | 621 | 609 | 117.1 |
| B | 4 | 170 | 137782 | 1170.93 | 621 | 609 | 117.1 |
| C | 1 | 23 | 600799 | 4304.18 | 606 | 614 | 139.4 |
| C | 15 | 214 | 233731 | 1671.78 | 606 | 614 | 139.4 |
| C | 0 | 10 | 161342 | 1152.65 | 606 | 614 | 139.4 |
| D | 8 | 195 | 1791537 | 11616.08 | 578 | 568 | 154.2 |
| D | 12 | 233 | 1038875 | 6734.37 | 578 | 568 | 154.2 |
| D | 1 | 52 | 340877 | 2207.22 | 578 | 568 | 154.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

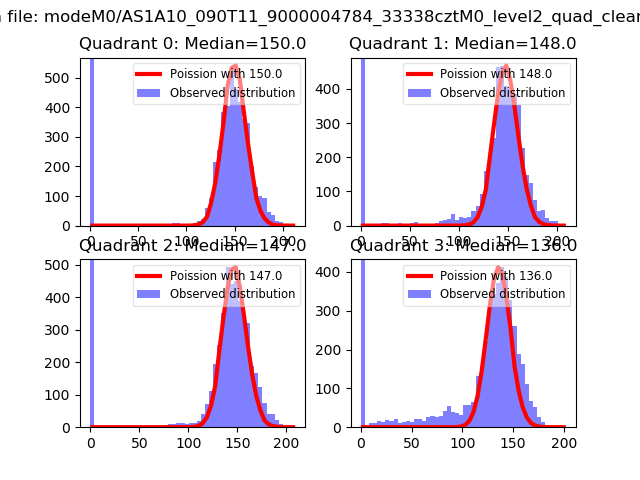

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

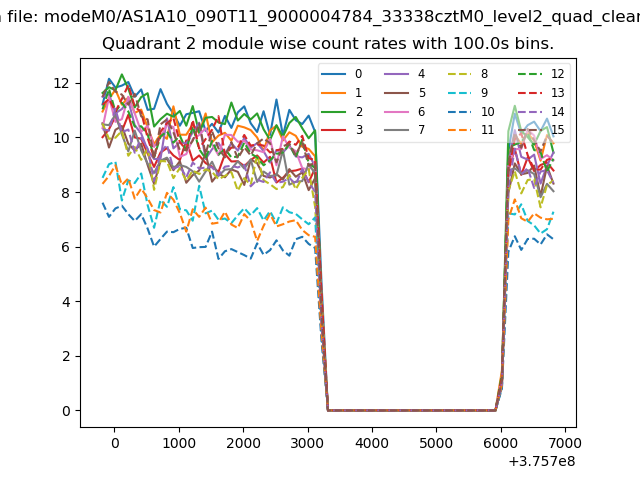

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

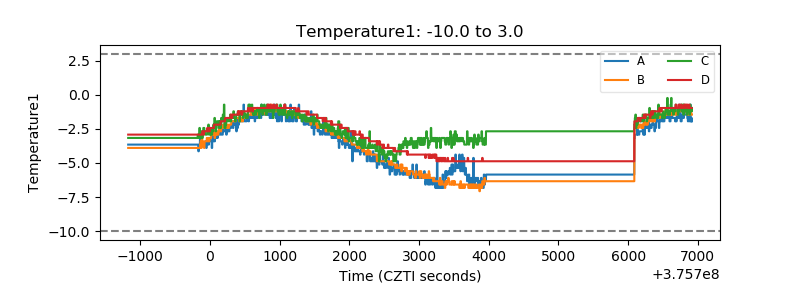

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

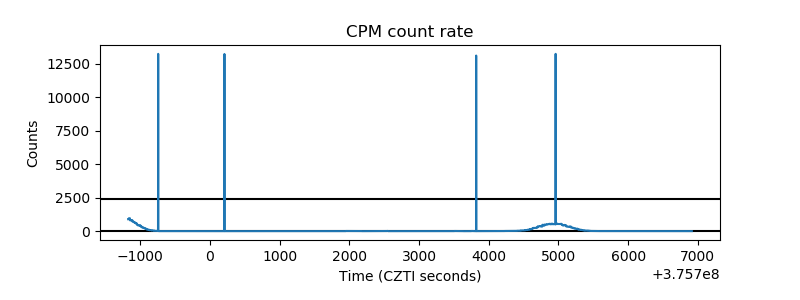

| _CPM_Rate |  |

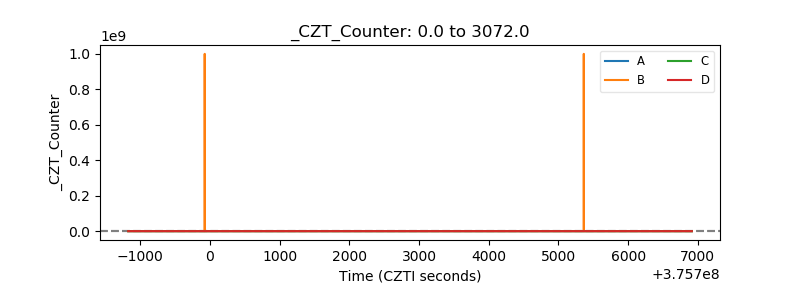

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

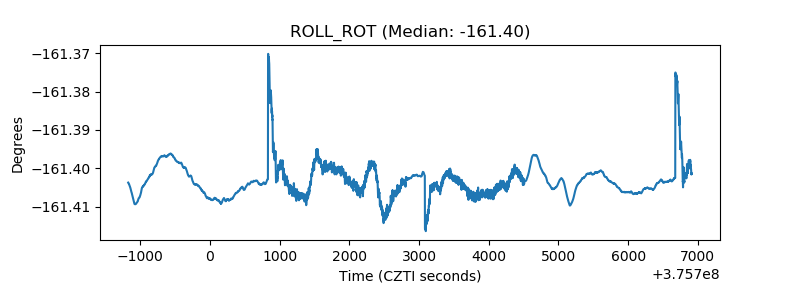

| _ROLL_ROT |  |
| _Roll_DEC |  |

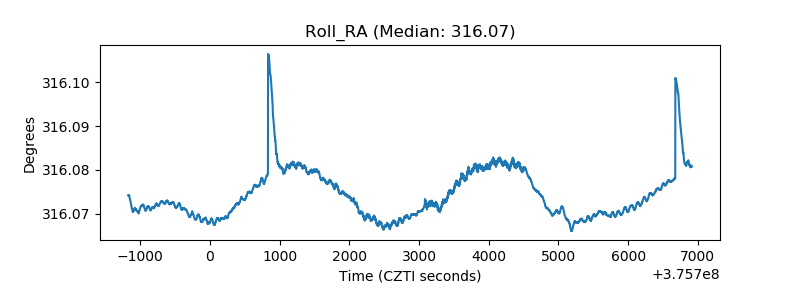

| _Roll_RA |  |

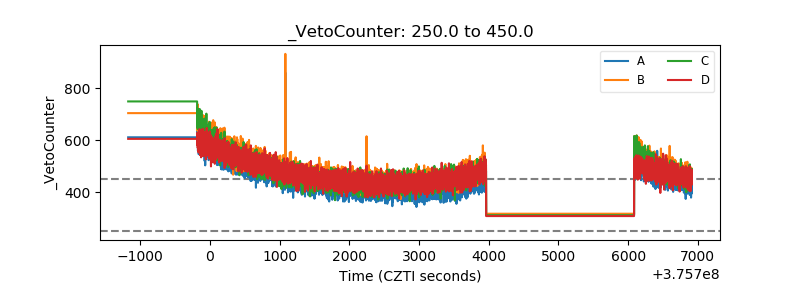

| Veto Counter |  |
